Bio Filter Media

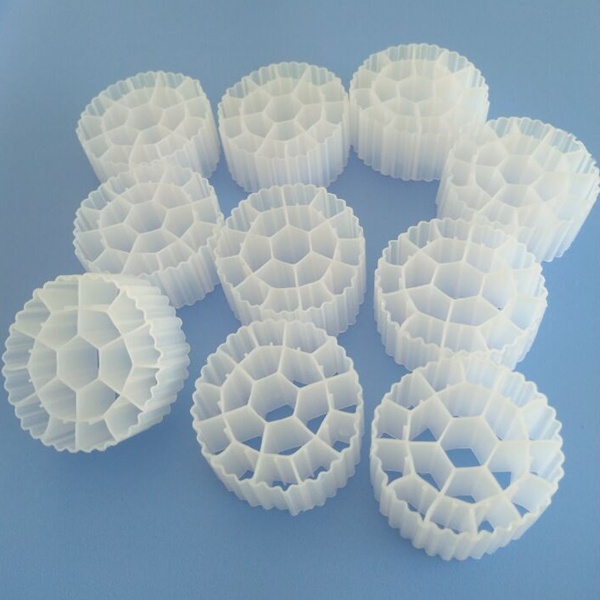

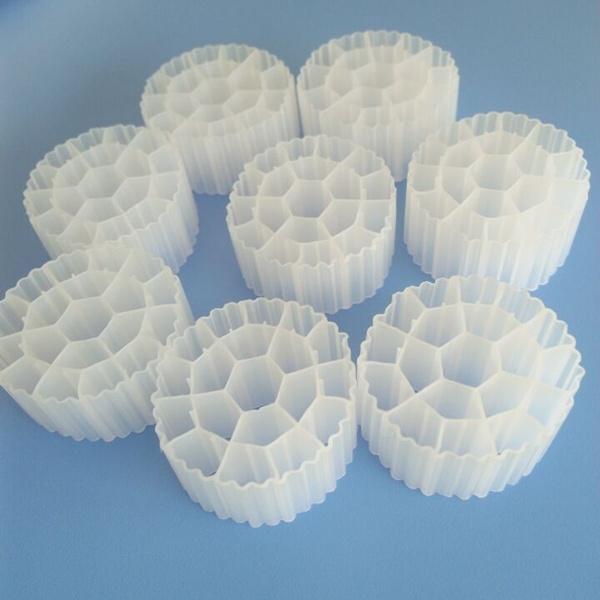

25*12mm Plastic Bio Media Filter, MBBR Media
Mbbr(moving bed biofilm reactor) media
Product Introduction
25*12mm Plastic Bio Media Filter, MBBR Media Features
1, The mbbr media can be used both domestic and industrial waste water
2, Accelerate the reaction rate significantly, compared with the activated sludge process, reaction efficiency 5-10 times
3, Simultaneous nitrification and denitrification process, it can be a good denitrification and phosphorus removal
4, No need bracket, just put in the Mbbr media directly. Our media packing free flow and cutting air bubbles in water, increase dissolved oxygen in water, save energy consumption.
Technical data
Item | Size (mm) | Packing numbers (pcs/m3) | Dosing ratio ( %) | Nitrification efficiency (Gnh4-N/m3.d) |
LYPE01 | Ф12×9 | >630000 | 15-17 | 400-1200 |
LYPE02 | Ф11×7 | >830000 | 15-68 | 400-1200 |
LYPE03/K1 | Ф10×7 | >850000 | 15-70 | 400-1200 |
LYPE04 | Ф16×10 | >260000 | 15-67 | 400-1200 |
LYPE05/K3 | Ф25×12 | >97000 | 15-65 | 400-1200 |
LYPE07 | Ф35×18 | >33000 | 15-50 | 300-800 |
LYPE10 | Ф25×4 | >210000 | 15-65 | 500-1400 |
Bio Media Packing
