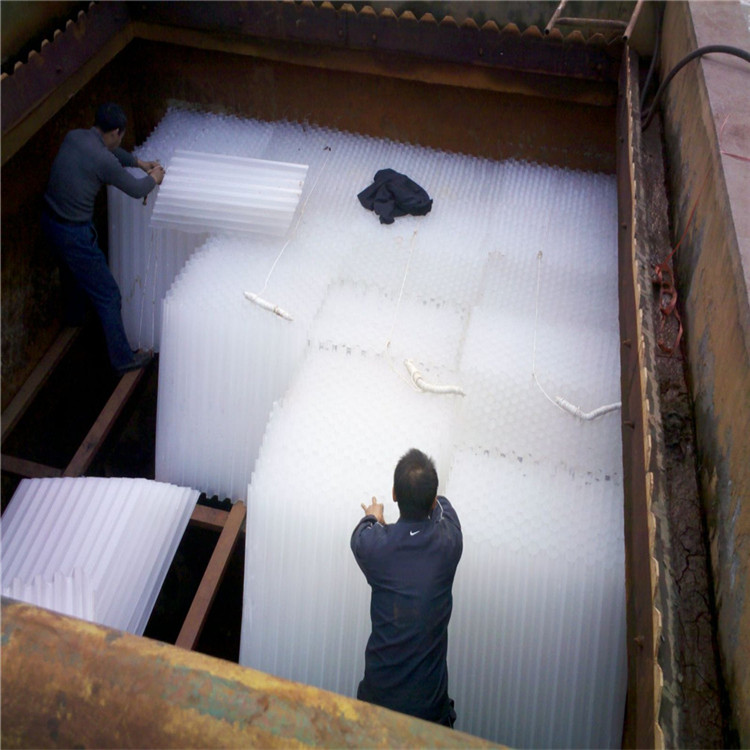

PP material lamella plate clarifier in sedimentation tank
Tube settlers increase the settling capacity of circular clarifiers and/or rectangular sedimentation basins by reducing the vertical distance a floc particle must settle before agglomerating to form larger particles. The settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area. This provides for a particle settling depth that is significantly less than the settling depth of a conventional clarifier, reducing settling times. Tube settlers capture the settleable fine floc that escapes the clarification zone beneath the tube settlers and allows the larger floc to travel to the tank bottom in a more settleable form. The settler"s channel collects solids into a compact mass which promotes the solids to slide down the tube Channel..

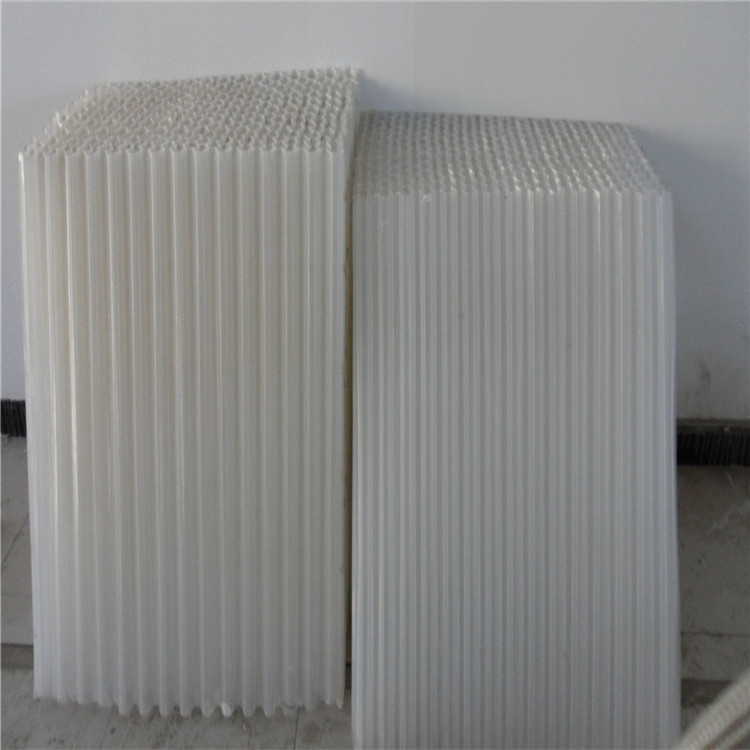

Main Features of Plastic Lamella Clarifiers PP/PVC Material Tube settler Media for Drainage Engineering
♦Large wetted perimeter, hydraulic radius is small.
♦The laminar good condition, particles falling from flocculent flow interference.
♦When the tube for 1 m long, effective load by 5 tons/square meter design.And V control in 2.5- 3.0 mm/SEC effluent water,within the scope of the best.
♦In the water inlet place inclined pipe length, the honeycomb 2.0-3.0 meters, may in the 50-100 kg/m3 clay sand content of high turbidity safe operation of processing.
♦The plastic inclined packing, which the processing ability is to destabilize the flat streaming traps three to five times, accelerate the clear pool and pulse clarify pool two to three times.
♦The material is with UV radiation protection.
1.Q:Why chose Hebei Lanyu?
A:We have 10 years experience for the rubber products field, and we can offer products with highest quality,most competitive price,and our best service together with our factory.
2Q:What trade terms can be accepted by us?
A:FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery.
3.Q:Can i get a discount for large quantity?
A:That"s a good question.When you place an order over $50000 for your second order,we willgive you discount 1%~5% for your better sales,because you are good,we are good ,win to win.
