- Place of Origin:
- Hebei, China
- Brand Name:
- LanYu
- After-sales Service Provided:
- Video technical support, Online support
- Warranty:
- 1 Year, 1 Year
- Product name:
- Factory made EPDM tube bubble diffuser / fine bubble diffuser
- Material:
- EPDM, ABS, Silicone
- Color:
- Black, White, Blue
- Diameter:
- 63mm
- Length:
- 500mm, 750mm, 1000mm
- Application:
- Water treatment
- Supply Ability:
- 15000 Piece/Pieces per Month quick delivery of epdm diffuser
- Packaging Details
- epdm diffuser are usually packed by carton or pallet
- Port
- Tianjin port

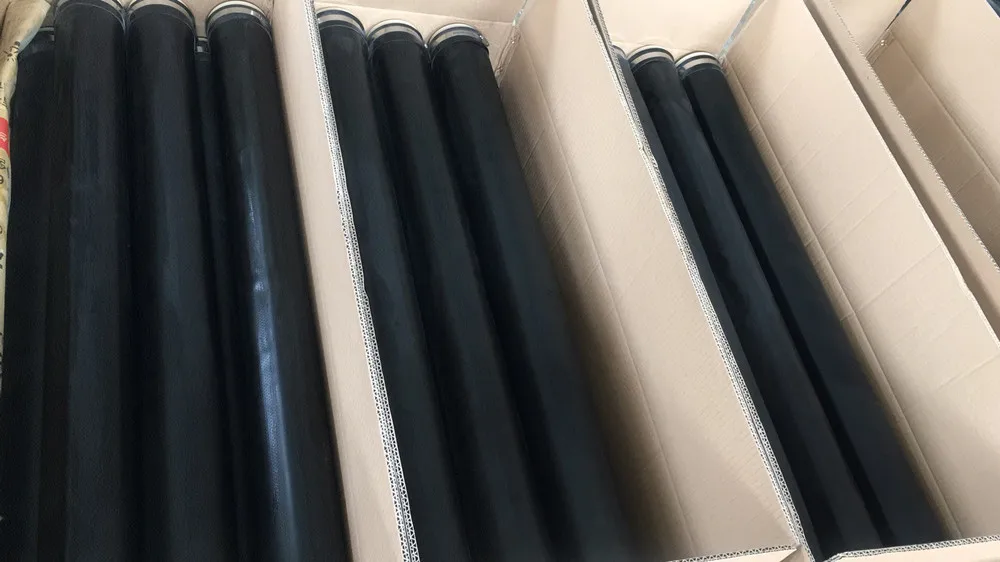

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 200 201 - 2000 >2000 Est. Time(days) 7 10 To be negotiated
Factory made EPDM tube bubble diffuser / fine bubble diffuser
EPDM tube bubble diffuser can be connected on one side or in pairs to different rectangular and round tubes (ABS material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM material and are available with fine or coarse-bubble perforation. The support tubes(ABS or PVC material)can be reused when membranes are replaced.
MOC:EPDM
Manufactured by compression molding with a standard cure,low plasticizer content, and 1mm or 2mm perforations.Compression molding with modern equipment utilizing individual thermocouples and vacuum technology ensures a repeatable very high quality product.
MOC:Silicon
Silicon membranes offer high temperture resistance ,and chemical resistance that differs from other products .Silicon is an inorganic ,and therefore offers excellent resistance tomany organic wastes.Our formulationn is designed to resist tearing and creep,while producing fine bubbles at a modest headloss.
| Size | 63*500mm | 63*750mm | 63*1000mm |
Design air flow | 3m3/h | 4m3/h | 7m3/h |
surface area | 0.5-1m2/m3 | 0.6-1.2m2/m3 | 0.8-1.6m2/m3 |
| Bubble Size | 0.7-1.9mm | 0.7-1.9mm | 0.7-1.9mm |
| Oxygenate Capacity | 0.45kgO2/h | 0.55kgO2/h | 0.65kgO2/h |
