Home > Products > professional manufacturer PVC cooling tower fill 1220mm PVC fill
professional manufacturer PVC cooling tower fill 1220mm PVC fill
Click on the image to view the original image
Product: views:2professional manufacturer PVC cooling tower fill 1220mm PVC fill
Branch: Lanyu
Type: Cooling tower parts
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 19:42
  Negotiated
Product Details
Overview
Quick Details
Cooling Type:
Cross Flow
Power(W):
/
Dimension(L*W*H):
915*1220mm
Weight:
0.52kg
Warranty:
1year
After-sales Service Provided:
Video technical support, Online support
Applicable Industries:
Construction works
Condition:
New
Material:
PVC/PP, PVC/PP
Place of Origin:
Hebei, China
Brand Name:
Lanyu
Voltage:
220V/240V/380V/480V
Certification:
ISO
Product name:
professional manufacturer PVC cooling tower fill 1220mm PVC fill
MOQ:
500sheet
Sample:
Free sample of 1220mm PVC fill
Thickness:
0.22 - 0.38mm
Width:
Customized
Length:
Random
Color:
Black/white/grey
Sheet space:
19mm-20mm
Type:
Cooling tower parts
Supply Ability
Supply Ability:
2000 Sheet/Sheets per Day Big capacity of 1220mm PVC fill
Packaging & Delivery
Packaging Details
cooling tower fill can be packed in bundle, pallet, wooden case or as your requirement.
Port
Tianjin, Shanghai

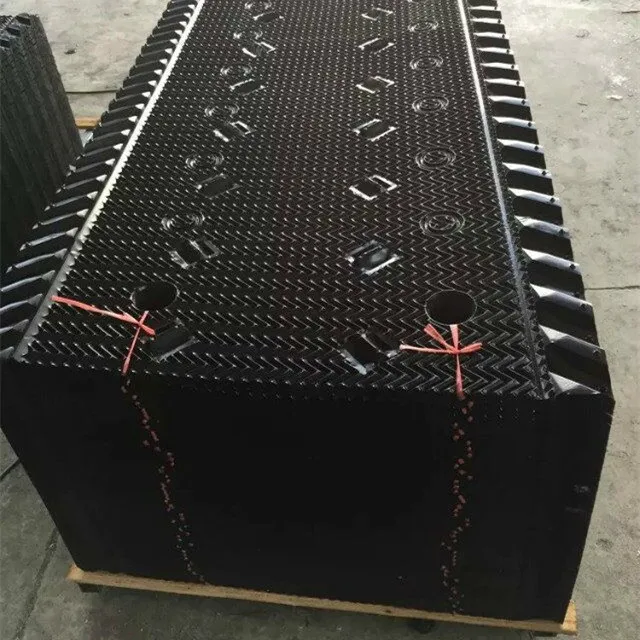

Picture Example:
package-img
Lead Time:
Quantity(Sheets)1 - 20002001 - 5000 >5000
Est. Time(days)1015To be negotiated

professional manufacturer PVC cooling tower fill 1220mm PVC fill

The cooling tower fill is one of famous and popular PVC cross flow fill in all of the brands cooling tower fill. It is good sales in the worldwide and have a good lifetime in use.

We supply different sizes for ML cooling tower fill for customers.



1.The film fill is probably the most thermally efficient fill worldwide.
2.It is well adapted to any induced draft or natural draft cooling tower using normal industrial water quality.
3.Sharp horizontal corrugations allow even water redistribution on the sheet and water rotation for good contact with air. The offset flute design allows vertical rotation of air with limited pressure drop.

1.The thickness is from 0.22mm to 0.45mm which the raw material PVC sheets are requested good quality and strong enough for the ML fill.

2.The width are 610mm, 750mm, 813mm, 915mm, 1000mm, 1220mm, 1520mm, the new mould and machine for 1900mm width ML fill is in development. We believe it will be successful in the near future, that will bring much convenient for customer in the installation and application.

3.The length of ML cooling tower fill can be customized. The normal length are 1854mm, 2060mm, 2450mm, 2678mm, 2980mm, 3090mm. The pitch is 19-20mm, that means the distance between two loose fill sheets is 19-20mm. It is hanging on the fiberglass tubes in the cooling tower 2 sides.

And it has A type and B type which make two loose sheets joint points match very well.



Itemcooling tower fill replacement
MaterialPVC/PP
Thickness0.25mm, 0.3mm, 0.38mm (0.22-0.38mm)
Width610, 750, 813, 915, 1000, 1220, 1520mm
Lengthas your requirement
ColorBlack / white / grey / green / blue
Working temperature80℃-35℃
Condition

We can delivery it in bundle,pallet,wooden case

Cross flow cooling tower fill make the water meet the air crossly, when cooling air entry the tower from two sides, the hot water come into the tower from top. This meet between hot water and cooling air was named cross flow. The result is the water become the lower temperature and flow away from the tower bottom, and the hot air is uprising in the tower top.

Our Services

 Welcome your inquiry anytime.

 We will sever you 24hours!

1.About quality, we can supply free sample of cooling tower fill for you.

   If ok, welcome your coming to our factory!

2.Before shipping, we must send pictures/videos for your order.

Any requirement, you can directly contact me as following:
