- Place of Origin:
- Hebei, China
- Brand Name:
- Lanyu, Lanyu
- Material:
- PVC,PP
- Weight:
- .
- Size:
- 1000*1000mm,etc, 1000*1000mm,etc
- Power:
- .
- After-sales Service Provided:
- Online support
- Warranty:
- Unavailable
- Shaping mode:
- Compression molding
- Thickness:
- 0.25-0.8mm
- Color:
- Blue, black,white etc
- Tempreture:
- 65℃~-35℃ OR 90℃~-35℃
- Delivery detail:
- Within 10 days after your payment arrived
- Product name:
- Lamella Clarifier Plate Tube Settler Media Lamella Plate
- Type:
- Oblique stagger
- Application:
- waste water treatment
- Supply Ability:
- 100000 Piece/Pieces per Week High temperature resistant tube settlers plate settlers lamella
- Packaging Details
- Water treatment device tube settler with plastic bag or wooden pallet.
30mm plastic tube settler
HS: 8418699090
Name: factory price PP tube settler media lamella for Sewage plant
Tray, Plastic Film or as your require
Delivery Detail:15-25 working days
- Port
- Tianjin, Shanghai, Ningbo

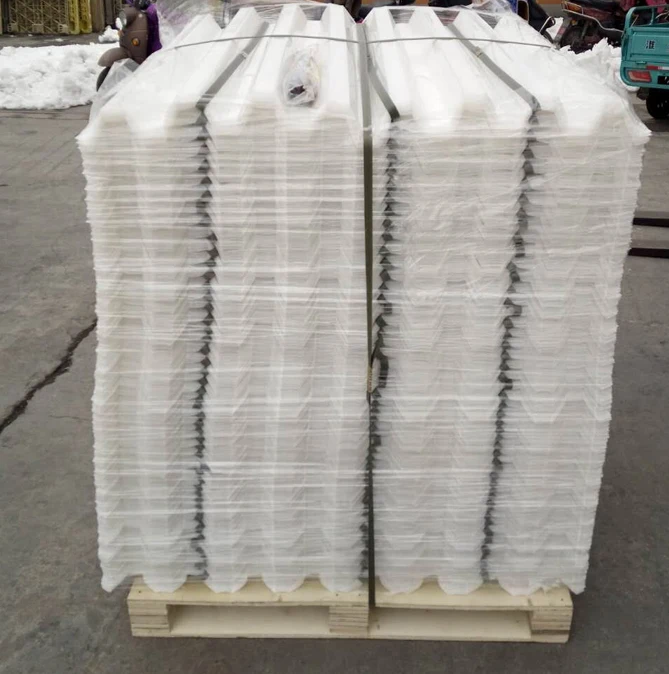

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 7 To be negotiated
PVC Lamella Plate PP Honeycomb Tube Settler Media
Tube settlers are single plastic profiles combined to tubes. This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in water and waste water treatment plants.
Different executions support a better process and cost reduction of the plant.
Tube Settler Features
2. Far more forgiving of poor water distribution caused by clogged or missing nozzles.
3. Water easily redistributes itself.
4. Ideal in dusty or wooded environments.
5. Easy maintenance.
6. Long service life.
7. High-temperature designs available.
8. Designs available for heavy ice loads.
Using tube settler in sedimentation tank, its handling/process capacity is 3-5 times of horizontal flow sedimentation pool, and 2-3 times of accelerated clarifier and pulse clarifier.
When the tube settler"s length is 1 meters, the effective load can be designed at 3-5 tons / square meters. When VO control in 2.5-3.0 mm / s range, the best water quality treated is obviously.
Advantages of tube settler media pp inclined tube lamella
The advantages of tube settlers can be applied to new or existing clarifiers/basins of any size: Clarifiers/basins equipped with tube//lamella settlers can operate at 4 to 8 times the normal rate of clarifiers/basins without tube or lamella settlers. It is possible to cut coagulant dosage by up to half while maintaining a lower influent turbidity to the treatment plant filters. Less filter backwashing equates to significant operating cost savings for both water and electricity. New installations using tube can be designed smaller because of increased flow capability. Flow of existing water treatment plants can be increased through the addition of tube or lamella settlers. Tube increase allowable flow capacity by expanding settling capacity and increasing the solids removal rate in settling tanks.
1. Tube Settler can operate at 2 to 4 times the normal rate
2. Can cut coagulant dosage by up to half
3. Provides less filter backwashing
4. Increased flow capacity
5. Increased flow of water treatment plants
6. Expanded settling capacity and increased solid removal rate
Why Choose High temperature resistant tube settlers plate settlers lamella ?
1. Highest quality
We are the manufacture who adopts import raw materials.It is amazing, and with
cheap price and guaranteed quality.
2. Most competitive price.
We can adjustment the price according to your market demand"s changes,and also can launch a series of promotional activities in a bad economic environment
3. Professional
We are special in producing and sells, as development, methods, and handling.
4. Two material
Bule is PVC, connect by glue. White is PP, weld to connect together.
How about the quality of your product?
-- Our products manufactured strictly according to national and international standard.
-- We have CE ,ISO certification
-- We take a test on every product before delivery.
How about price of this product?
-- We can give the lowest price than market one.
-- We do quotation as soon as possible for any customer.
-- Discount can be given according to quantity.
What is the MOQ?
-- 1 set.
If you can be custom-made?
-- We can make products according to customer"s requirements.
Shippment?
-- 1. with glue or welding , we will finish the bounding before shipping.
but the large CBM, the freight is high
--2. Without glue or welding, you buy the glue, then the bound or weld it by youself.
the small CBM, freight is cheap.
--3. Tray , plastic film, or bulk, as your request.
Production cycle?
-- Small order is 10-15 working be ready.
--If large quantity, need confirm with us.
