1000*1000mm Waste Water Tank Filter Media, PP Tube Settler
Click on the image to view the original image
Product: views:21000*1000mm Waste Water Tank Filter Media, PP Tube Settler
Branch: Lanyu, Lanyu
Type: Oblique stagger
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 19:42
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Lanyu, Lanyu
Material:
PVC,PP
Weight:
.
Size:
1000*1000mm,etc, 1000*1000mm,etc
Power:
.
After-sales Service Provided:
No after-sales service
Warranty:
Unavailable
Thickness:
0.25-0.8mm
Color:
Blue, black,white etc
Packaging:
In bundle,wooden pallent or as your request
Delivery detail:
Within 10 days after your payment arrived
Product name:
Lamella Clarifier Plate Tube Settler Media Lamella Plate
Type:
Oblique stagger
Application:
waste water treatment
Shaping mode:
Compression molding
Supply Ability
Supply Ability:
10000 Cubic Meter/Cubic Meters per Month
Packaging & Delivery
Packaging Details
Water treatment device tube settler with plastic bag or wooden pallet.
Port
Tianjin, Shanghai, Ningbo

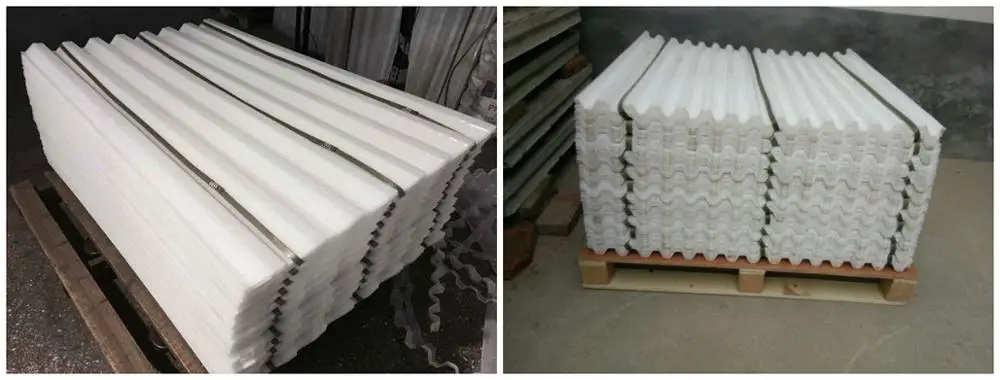

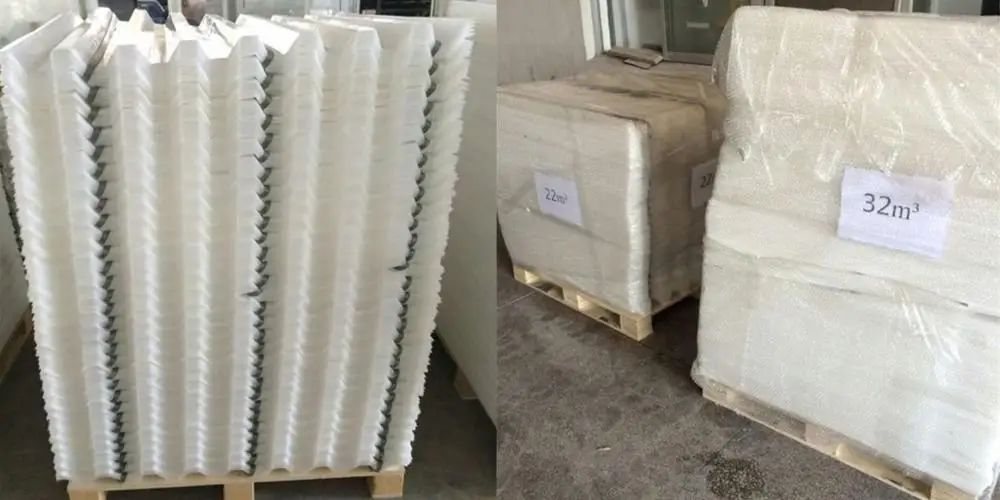

Picture Example:
package-img
package-img
Lead Time:
Quantity(Pieces)1 - 1000 >1000
Est. Time(days)7To be negotiated
Video Description
Product Description

PVC Lamella Plate PP Honeycomb Tube Settler Media


Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment.

Tube settlers are single plastic profiles combined to tubes. This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in water and waste water treatment plants.

Different executions support a better process and cost reduction of the plant.

PP/PVC Lamella plate tube settler for sewage treatment clarifier increase the settling capacity of circular clarifiers and/or rectangular sedimentation basins by reducing the vertical distance a floc particle must settle before agglomerating to form larger particles. The settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area. This provides for a particle settling depth that is significantly less than the settling depth of a conventional clarifier, reducing settling times. Tube settlers capture the settleable fine floc that escapes the clarification zone beneath the tube settlers and allows the larger floc to travel to the tank bottom in a more settleable form. The settler"s channel collects solids into a compact mass which promotes the solids to slide down the tube Channel.



Tube Settler Features


1. Ideal in dirty water applications.

2. Far more forgiving of poor water distribution caused by clogged or missing nozzles.

3. Water easily redistributes itself.

4. Ideal in dusty or wooded environments.

5. Easy maintenance.

6. Long service life.

7. High-temperature designs available.

8. Designs available for heavy ice loads.


Using tube settler in sedimentation tank, its handling/process capacity is 3-5 times of horizontal flow sedimentation pool, and 2-3 times of accelerated clarifier and pulse clarifier.

When the tube settler"s length is 1 meters, the effective load can be designed at 3-5 tons / square meters. When VO control in 2.5-3.0 mm / s range, the best water quality treated is obviously.

Advantages

Advantages of tube settler media pp inclined tube lamella

The advantages of tube settlers can be applied to new or existing clarifiers/basins of any size: Clarifiers/basins equipped with tube//lamella settlers can operate at 4 to 8 times the normal rate of clarifiers/basins without tube or lamella settlers. It is possible to cut coagulant dosage by up to half while maintaining a lower influent turbidity to the treatment plant filters. Less filter backwashing equates to significant operating cost savings for both water and electricity. New installations using tube can be designed smaller because of increased flow capability. Flow of existing water treatment plants can be increased through the addition of tube or lamella settlers. Tube increase allowable flow capacity by expanding settling capacity and increasing the solids removal rate in settling tanks.



1. Tube Settler can operate at 2 to 4 times the normal rate

2. Can cut coagulant dosage by up to half

3. Provides less filter backwashing

4. Increased flow capacity

5. Increased flow of water treatment plants

6. Expanded settling capacity and increased solid removal rate

Item
Tube settler media
Material
PP
PVC
FRP
Diameter( mm)
æ35
æ50
æ80
æ35
æ50
æ80
æ35
æ50
æ80
Sheet quantity /m2
40
32
20
40
32
20
40
32
20
Thickness (mm)
0.5
0.45
0.7
0.5
0.45
0.7
0.5
0.5
0.7
Weight (kg/m2)
21
16
16
31
23
23
41
31
31
One sheet size(mm)
1000*1000*δ
1000*1000*δ
1000*1000*δ
One block size(mm)
1000×1000×866
1000×1000×866
1000×1000×866
Color
White
Blue
Can be customized
Assemble method
Electrical heating
Glue
Glue
Installation angle
60°
60°
60°
Temperature
5~50℃
5~50℃
5~70℃
Proportiong/cm3
0.92
1.35~1.46
1.8
Transportation mode
By pcs
By pcs
By pcs
