Click on the image to view the original image
- Place of Origin:
- Hebei, China
- Brand Name:
- LanYu
- Model Number:
- LYFG01
- Application:
- Walkway/platform/industry
- Surface Treatment:
- concave/grit/smooth
- Technique:
- Molded
- Product name:
- FRP molded grating 1-1/2" thick, 1-1/2" square mesh,with grit
- Material:
- Fibreglass Reinforced Plastic
- Dimensions:
- 38x38 40x40 50x50 100x25
- Color:
- Customized Colors
- Type:
- frp molded grating
- Thickness:
- 25~60mm
- Mesh size:
- 38x38,40x40,100x25mm
- Pannel size:
- 1007x3007, 1220x3660, 1007x4047
- Resin type:
- GP, ISO, VE, PH
- Feature:
- Aging-Resistant, insulation, corrosion resistance
- Supply Ability:
- 5000 Square Meter/Square Meters per Month big capacity of FRP molded grating 1-1/2" thick
- Packaging Details
- FRP molded grating 1-1/2" thick are always packed in bundle, Wooden carton for bulk order
- Port
- Tianjin port

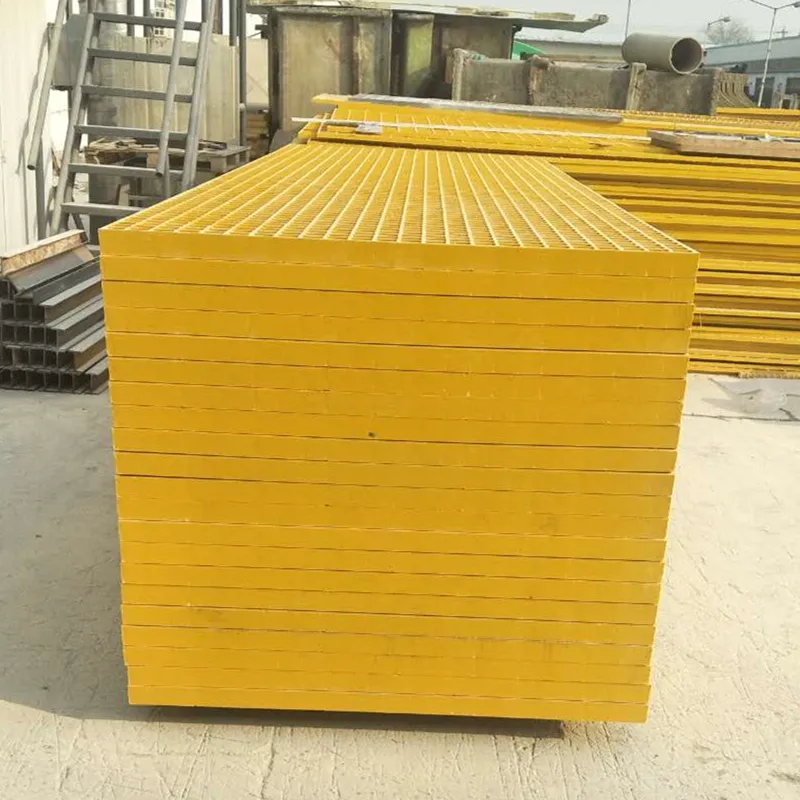

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Square Meters) 1 - 1000 >1000 Est. Time(days) 15 To be negotiated
FRP molded grating 1-1/2" thick, 1-1/2" square mesh,with grit
FRP molded grating is manufcturered by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thurougly wetted out with resin, layer by layer.
Any process such as post applied grit could be bonded after as a secondary operation.
This continuous process produces an integral, one piece panel, which offers excellent corrosion resistance as well as bi-directional strength.
| Specifications(mm) | a*b(mm) | weight(kg) |
| 38*38*25 | 1220*3660 | 54 |
| 38*38*30 | 1220*3660 | 70 |
| 38*38*38 | 1220*3660 | 88 |
| 1000*4007 | 81 | |
| 50*50*50 | 1220*3660 | 98 |
| 19*19*38*38*30 | 1075*3626 | 72 |
| 38*38*65 | 1030*4040 | 141 |
| 40*40*40 | 1010*4040 | 81 |
| 19*19*38*38*38 | 1220*3660 | 92 |
| 25*25*50*50*30 | 1220*3660 | 62 |
| High strength Security Anti-aging
It contains strong stress resistance, Lightweight, high strength.
Excellent electrical insulation.
UV absorption agent and polyester surface veil mat are added in the formula. |
Good mechanical property Inflaming Retarding
Resin content is 35%, fiberglass content is 65%, which increase the rate between strength and weight.
The fire retardant effect is of 1 to 25, or oxygen index is above 26. Oxygen index can reach about 26.(Per the requirement of project) |
|
| Size Color
Customized size are available.
Yellow, green, black, grey, transparent, etc Customized color are available. |
| | |
