- Cooling Type:
- Counter Flow
- Power(W):
- /
- Dimension(L*W*H):
- 305mm / 610mm
- Weight:
- 30kgs/m3
- Warranty:
- 12 Months
- After-sales Service Provided:
- Video technical support, Online support
- Condition:
- New, new
- Material:
- pvc
- Place of Origin:
- Hebei, China
- Brand Name:
- LanYu
- Voltage:
- /
- Certification:
- SGS
- Name:
- datasheet for PVC fills 305mm fill packing for cooling tower
- material:
- PVC
- color:
- black,green
- thickness:
- 0.25 - 0.4mm
- Flute Height:
- 12mm, 19mm
- width:
- 150mm, 300mm, 600mm, 1200mm
- length:
- any length
- Application:
- Cooling TowerAccessories
- Sample:
- avaliable
- Supply Ability:
- 10000 Sheet/Sheets per Week big capacity of 305mm fill packing for cooling tower

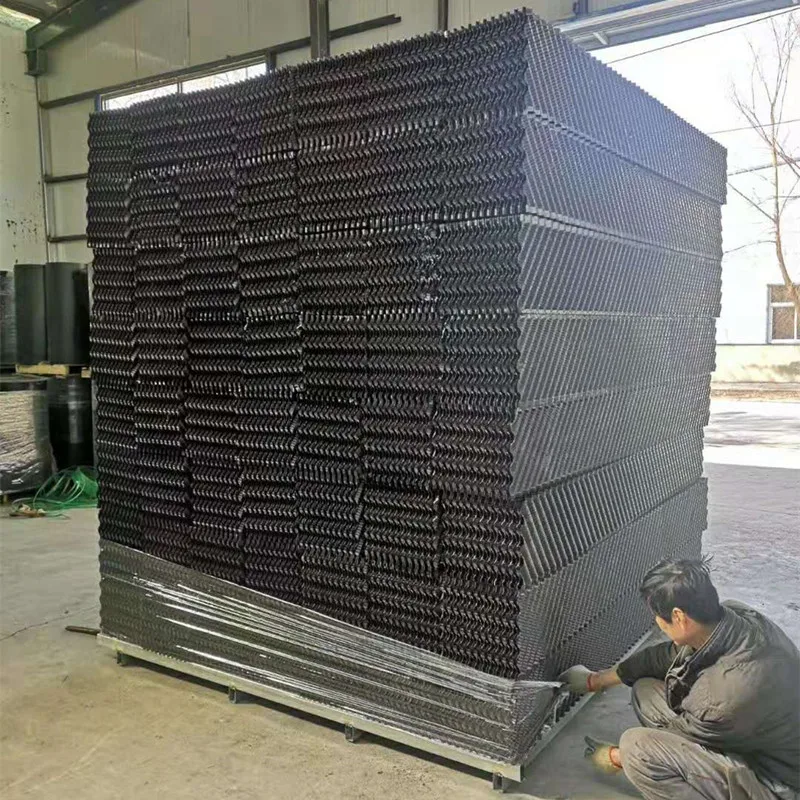

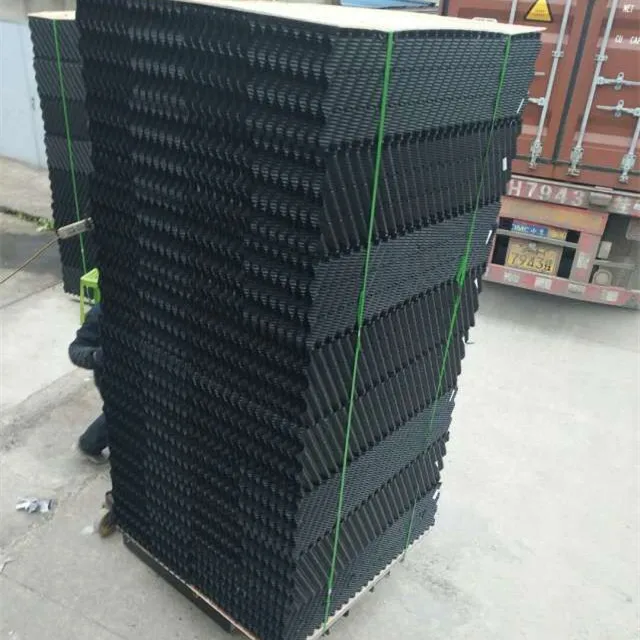

- Packaging Details
- 305mm fill packing for cooling tower package: wooden box,pallet or as your requirment
- Port
- Tianjin
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Sheets) 1 - 1000 1001 - 5000 >5000 Est. Time(days) 10 15 To be negotiated
datasheet for PVC fills 305mm fill packing for cooling tower
Oblique wave cooling tower fill belong to counter flow cooling tower fill which glue together to be a block which is full of the middle bottom in tower.
1.The thickness is 0.25mm - 0.35mm;
2.The width is 150mm, 305mm, 610mm; the length is 1200mm, 1800mm, 2000mm, 2400mm;
3.The pitch distance is 12mm, 15mm, 19mm and 25mm. The 19mm is normal size. It is also called CF1900, CF1200. It means the fill will be glued to be a block which size is 305mm*305mm*1200mm. The honeycomb is in the vertical direction to make sure the cool air meet the hot water directly.
| Material | Width | Length | Thickness | Pitch | Customized size |
| PVC/PP | 150mm | 1200mm | 0.25mm-0.35mm | 12mm | Yes |
| 305mm | 1800mm | 15mm | |||
| 610mm | 2000mm | 19mm | |||
| 2400mm | 25mm |
OW cooling tower fill belong to counter flow cooling tower fill. The working principle is all cool air entry in the tower from bottom when the cooling tower fill located in the center is full of the tower, when the hot water come into the tower from top, the cool air low the water temperature when all water is scattered all aroung the fill media surface. After the temperature lowing, the cooling water will flow out on the bottom, and the hot air lift in the tower top.
| | |
Welcome your inquiry anytime.
We will sever you 24hours!
1.About quality, we can supply free sample of cooling tower fill for you.
If ok, welcome your coming to our factory!
2.Before shipping, we must send pictures/videos for your order.
