- Place of Origin:
- Hebei, China
- Brand Name:
- LY
- Model Number:
- LY-C776
- Application:
- Dredge pipeline, tools for pulling cable
- Surface Treatment:
- coated
- Technique:
- pultrusion
- Accessories:
- frame, wheel, copper connectors
- Name:
- Diameter of Fiberglass 12X100m Threading Apparatus Cable Duct Rodder
- Other name:
- Push pulling rod,Flexible Fiberglass Rod,fiberglass rod sewer
- assembly:
- wheel, metal frame
- Duct Rodder Length:
- 10-500m
- Colour:
- yellow,black,red,green,white etc
- Rod Diameter:
- 4.5-16mm
- Rod Length:
- 30-500m
- Working environment:
- -40° C to +80° C
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 127X12X45 cm
- Single gross weight:
- 38.0 kg
- Package Type:

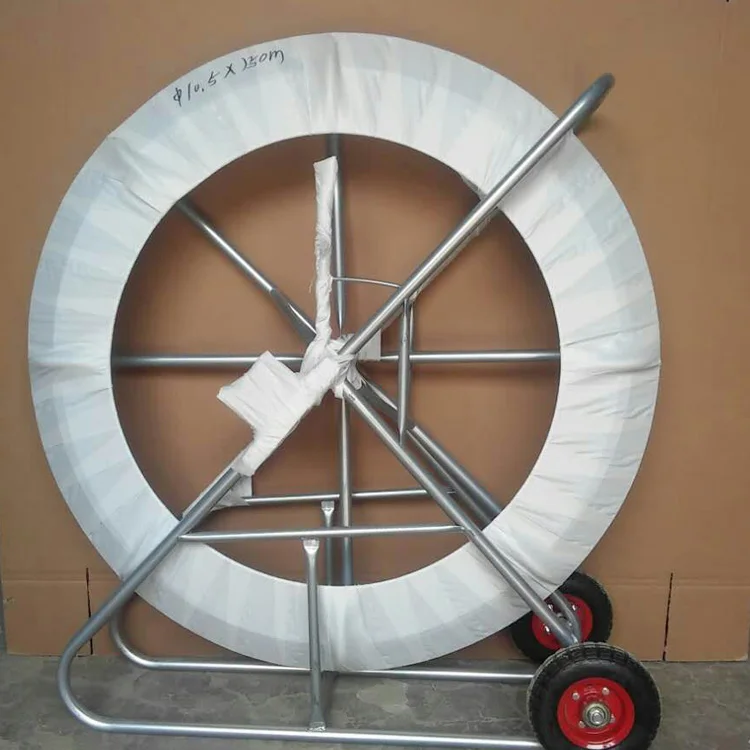

- Fiberglass Snake Rod suitable packing for export,; 1.Inside packing: one set to be packed by plastic woven tape. 2.duct rodder packing in carton.
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 2 - 50 51 - 100 >100 Est. Time(days) 5 7 14 To be negotiated
Diameter of Fiberglass 12X100m Threading Apparatus Cable Duct Rodder
Product Description
The specification of Fibreglass Drainer,FRP fish tape ,fiberglass cable snakes duct rodder
Name | Duct rodder |
Other name | Snake rod,push pull rod |
Glass fiber rod diameter | φ4.mm--φ18mm, |
Length | 30m--,500m |
Min Bend Radius | 250mm,330mm |
Glass fiber density | 210kg/m, 245kg/m |
Breaking tension | 2400kg, 4200kg |
Working temperature | -40°C--80°C |
Fiberglass Ductrodder
Duct rodder, also called fiberglass ductrodder, is a powerful auxiliary tool used for rope traction in the pipe.
Smooth and flexible surface of the duct rodder can easily make the rope or cable pass through the narrow channel. And according to the construction,the duct rodder can be divided into fiberglass duct rodder and traceable duct rodder.According to the movement type,it canalso can be divided into duct rodder withwheel and portable duct rodder.Fiberglass duct rodder, an excellent auxiliary tool, is commonly used in track construction where cable and electric wire is hard to be pulled into cable, pipes and conduits.
Component
Duct rodder frame , used to place, push and draw back the fiberglass rod, commonly is composed of eight components: fiberglass rod,copper head, rod guide, rod grapple, grip, steel frame,Brake,-
Wheel. The welded frame, made of high quality steel, is strong enough to withstand the weight of the fiberglass rod. With powder coated or galvanized, the frame is rust resistant and corrosion resistant. At the same time, duct rodderwith different color available can suit customers" various requirements. With the help of frame,the duct rodder is more easier to move at the job site. In addition, duct rodder with hand operated brake and rubber wheel also available.Generally, the medium sized duct rodder will be equipped with polyurethane wheels and large sized duct rodder will be equipped with rubber wheel.
Color:yellow, white, red, orange, blue, green, black.
Working temperature: -40 ℃ to +80 °C (-40 °F to 176 °F).
Minimum Pulling strength:4000N +/-5%
Consistency of rod:137gr/m Flexural Modulus:> 46.500Mpa
Elongation at break:2.5-3% Min Bending Radius:388mm .
Fiberglass rod
The fiberglass rod consists of three parts:ABS coating,Copper/steel wire,Fiberglass.
Copper wire quantity can be customized according to customer demand.
Color:Variety
Diameter:4.5mm-14mm
Different styles can be customized according
to customer needs
ABS coating:
Fiberglass:
Material:Imported ABS material
ABS coating thickness:0.75mm-2mm
Fiber glass content:75-80%
Density:> 1.9gr/cm3
Copper/steel wire:Copper wire diameter: 0.55mm-0.51mm
steel wire diameter:0.8mm-1.1mm
Number of copper wire:1-4(Rod diame-
ter:4.5mm-6mm) or customized
customized(Rod diame-
ter:8mm-16mm)
Number of steel wire:1 or customized.
Duct rodder Frame
The Frame have two kinds of materials, Colors:blue,black,orange,green,red,yellow,or
customized.
Frame appearance
Meter marks
There are meter marks on the rod for the user easily read it. The marks is waterproof, ultraviolet and it can be still clear even after using long time.Its outer protected layer is made of high density ABS resin,which has good anti-UV capability, the advantage of smooth, wear-resistant and long service life.
Meter markscan be customized to customer needs.
Rubber wheels
Duct rodder with rubber wheels, is also called wheeled duct rodder. Wheeled duct rodder performs obviously advantage over portable duct rodder when the conduit or pipe is very long or complicated. With a rubber wheel on the steel frame, duct rodder is easier to transport at the working condition. Different from portable duct rodder, wheeled duct rodder is often manufactured with rod diameter changing from 8 mm to 16 mm.
Advantage
1.High strength, flexibility, anti-aging, heat resistance, acid resistance
2.High quality,durable
3.Easy handle
4.size color can be customized
5.save time, effort and improve working efficiency
6.Factory sale directly
