Home > Products > PP material unwired tube settler sheet 0.8mm 35mm clarifier lamella plate
PP material unwired tube settler sheet 0.8mm 35mm clarifier lamella plate
Click on the image to view the original image
Product: views:2PP material unwired tube settler sheet 0.8mm 35mm clarifier lamella plate
Branch: Lanyu
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 19:44
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
water treatment
Place of Origin:
Hebei, China
Brand Name:
Lanyu
Material:
PP/PVC, PP, PVC, FRP
Weight:
0.5kg-2kg
Size:
1M*1M
Power:
/
After-sales Service Provided:
Video technical support, Online support
Warranty:
1 Year
Application:
Wastewater Treatment
Name:
unwired tube settler sheet 0.8mm 35mm clarifier lamella plate
Diameter:
35m, 50mm, 80mm
Other name:
Lamella plate separator
Color:
White, black, green
Sample:
Free sample of lamella plate
Supply Ability
Supply Ability:
60 Cubic Meter/Cubic Meters per Day big capacity of tube settler media
Packaging & Delivery
Packaging Details

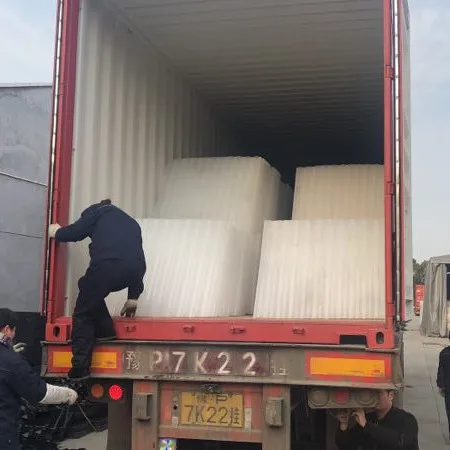

PP material 0.7mm tube settler plate settler lamella will be packed in fumigated wooden pallet
Port
Tianjin, Shanghai, Ningbo
Picture Example:
package-img
Lead Time:
Quantity(Cubic Meters)1 - 3031 - 60 >60
Est. Time(days)1015To be negotiated
Product Details

PP material unwired tube settler sheet 0.8mm 35mm clarifier lamella plate

Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment.tube settlers are single plastic profiles combined to tubes. This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in water and waste water treatment plants.Different executions support a better process and cost reduction of the plant.

Tube settlers increase the settling capacity of circular clarifiers and/or rectangular sedimentation basins by reducing the vertical distance a floc particle must settle before agglomerating to form larger particles. The settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area. This provides for a particle settling depth that is significantly less than the settling depth of a conventional clarifier, reducing settling times. Tube settlers capture the settleable fine floc that escapes the clarification zone beneath the tube settlers and allows the larger floc to travel to the tank bottom in a more settleable form. The settler"s channel collects solids into a compact mass which promotes the solids to slide down the tube Channel.

Product Introduction

Advantages of PP material unwired tube settler sheet 0.8mm 35mm clarifier lamella plate

The advantages of tube settlers can be applied to new or existing clarifiers/basins of any size: Clarifiers/basins equipped with tube//lamella settlers can operate at 4 to 8 times the normal rate of clarifiers/basins without tube or lamella settlers. It is possible to cut coagulant dosage by up to half while maintaining a lower influent turbidity to the treatment plant filters. Less filter backwashing equates to significant operating cost savings for both water and electricity. New installations using tube can be designed smaller because of increased flow capability. Flow of existing water treatment plants can be increased through the addition of tube or lamella settlers. Tube increase allowable flow capacity by expanding settling capacity and increasing the solids removal rate in settling tanks.

1. Tube Settler can operate at 2 to 4 times the normal rate
2. Can cut coagulant dosage by up to half
3. Provides less filter backwashing
4. Increased flow capacity
5. Increased flow of water treatment plants
6. Expanded settling capacity and increased solid removal rate

Product Parameters
Specifications (aperture)
film thickness (mm)
Sheet quantity (pcs/m3)
bulk density (kg / m3)
25mm
0.45-0.5
50
42
35mm
0.35-1
45
37
50mm
0.35-1
32
26
80mm
0.35-1
20
22
Product Details Show
Product Packing
Our Service

If you have any requirements about our PP material unwired tube settler sheet 0.8mm 35mm clarifier lamella plate, welcome to contact with us, we will surely give you our best price and service.
