- Applicable Industries:
- Construction works
- Place of Origin:
- Hebei, China
- Brand Name:
- LanYu
- After-sales Service Provided:
- Video technical support, Online support
- Warranty:
- 1 Year
- Name:
- factory supply 0.7mm blue PVC tube settler media lamella plate sheet
- Material:
- PP/PVC
- Color:
- white/blue or as your request
- Application:
- water treatment
- Opening diameter:
- 25mm, 35m, 50mm, 80mm
- MOQ:
- 100sheets
- Sample:
- free sample of tube settler media
- Supply Ability:
- 8000 Sheet/Sheets per Week big capacity of lamella tube settler media
- Packaging Details
- plastic film+packing belt+pallet
- Port
- Tianjin, Shanghai ,Ningbo

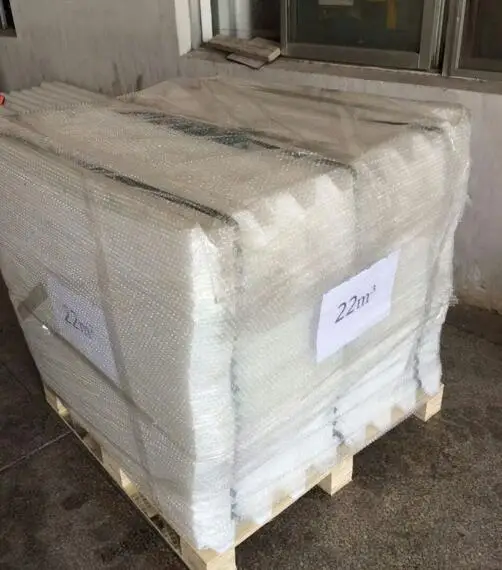

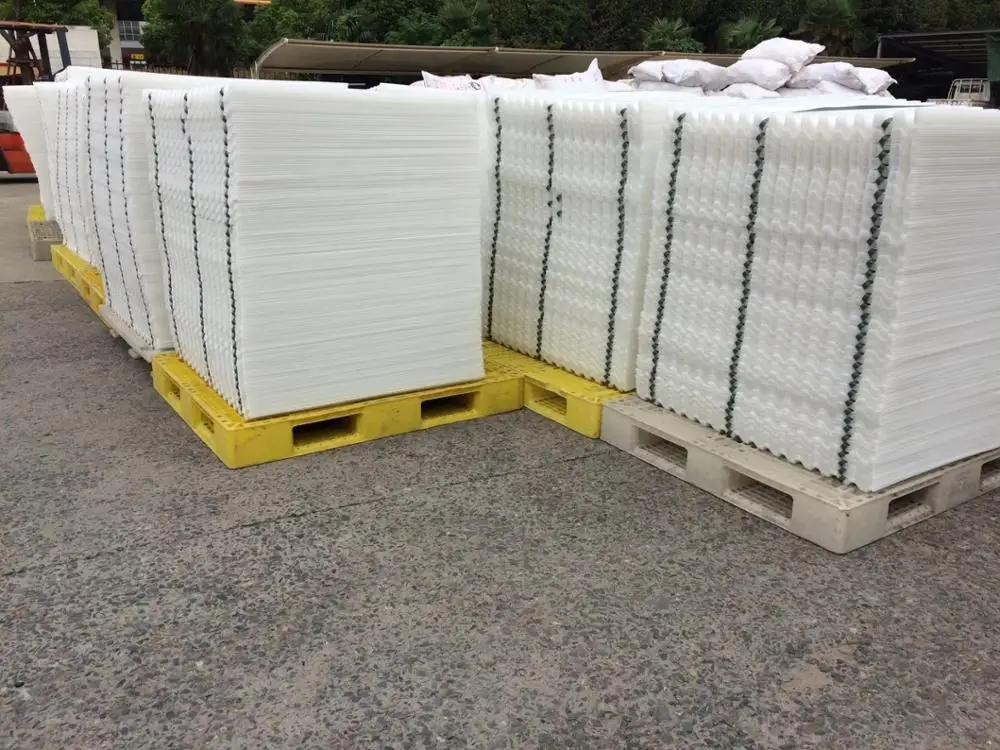

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Sheets) 1 - 5000 >5000 Est. Time(days) 15 To be negotiated
factory supply 0.7mm blue PVC tube settler media lamella plate sheet
The material of PP/PVC/FRP material Tube Settler include polypropylene (PP) ,polyvinyl chloride (PVC), ethylene propylene copolymer and glass fiber reinforced plastic (FRP) types .Assembly form inclined tube and straight pipe in two forms.
factory supply 0.7mm blue PVC tube settler media lamella plate sheet
1. Clarifiers equipped with tube settlers can operate at 2 to 4 times the normal rate of clarifiers/basins without tube settlers.
2.It is possible to cut coagulant dosage by up to half while maintaining a lower influent turbidity to the treatment plant filters.
3.Less filter back washing equates to significant operating cost savings for both water and electricity.
4.New installations using tube settlers can be designed smaller because of increased flow capability.
5.Flow of existing water treatment plants can be increased through the addition of tube settlers.
6.Tube settlers increase allowable flow capacity by expanding settling capacity and increasing the solids removal rate in settling tanks.
factory supply 0.7mm blue PVC tube settler media lamella plate sheet
PP/PVC/FRP material Tube Settler design avoids thin wall membranes and utilizes forming techniques to minimize component stress and subsequent environmental stress cracking fatigue.
PP/PVC/FRP material Tube Settler offer an inexpensive method of upgrading existing water treatment plant clarifiers and sedimentation basins to improve performance. They can also reduce the tankage/footprint required in new installations or improve the performance of existing settling basins by reducing the solids loading on downstream filters.
factory supply 0.7mm blue PVC tube settler media lamella plate sheet
Municipal, Power, Pharmaceutical, Chemical, Electroplating, Metallurgy, Machinery, Papermaking, Printing and Dyeing, Medicine, Food processing, Aquaculture, with the continous improvement and the deepening use of our products. Our mbbr media will be used more and more widely.
In view of the different kinds of waste water, we can design different types of filter media according to customer"s personalized demand, and also can develop the new filter media according to customer"s drawing.
factory supply 0.7mm blue PVC tube settler media lamella plate sheet
The modular and cubical self-supporting settler design of Honeycombed Inclined Tube Settlers aids handling during installation and any subsequent maintenance.
plastic hexagon honeycomb fill 50mm aperture lamella tube settler media
Suspended Ball
Two-double ball which made of PP & PE,Outer structure is two net-shaped spheres, Inner structure is revolving sphere. Act as waste water treatment & Bio-film Reactor.
Combined filler
Combined filler applied in waste water treatment of
petrochemical, food, textile, Dyeing ,
leather, Pharmacy.Soft filler/water
treatment .
Elastic filler
High efficient water treatment process in purifying organic wastewater, whose most important part is the bio-membrane attached on the carrier.
Polyhedral hollow ball filler
Biochemical ball
cooling tower fill
