Home > Products > PVC lamella honeycomb filter plate clarifier tube settler

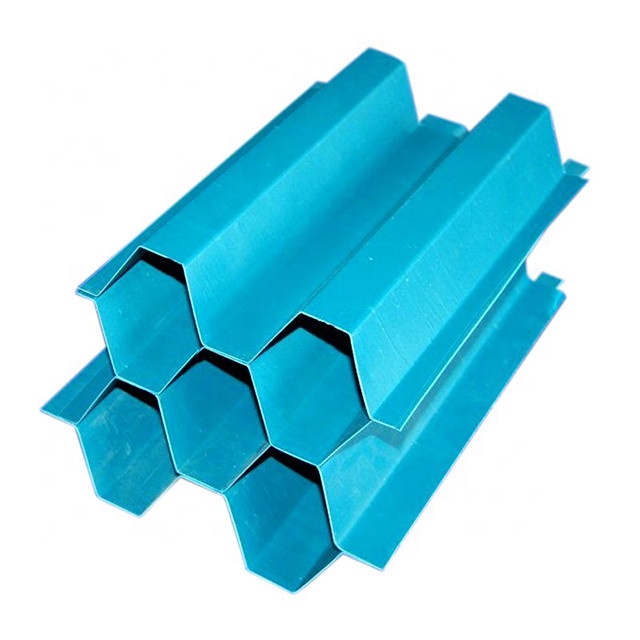

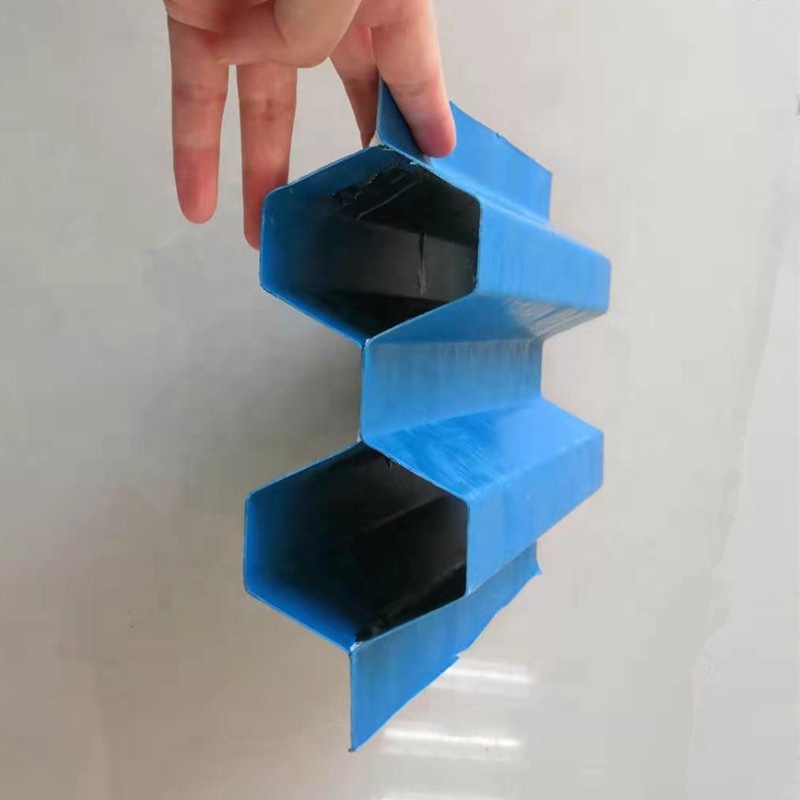

PVC lamella honeycomb filter plate clarifier tube settler
Click on the image to view the original image
Product: views:2PVC lamella honeycomb filter plate clarifier tube settler
Branch: Lanyu
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 19:45
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
water treatment
Place of Origin:
Hebei, China
Brand Name:
Lanyu
After-sales Service Provided:
Online support
Warranty:
More than 5 Years
Material:
pp/pvc/plastic/fiberglass
Application:
water treatment
Color:
blue /white/ black
Function:
precipitate solid impurities in water
Usage:
clarifier/Sand sink
Product name:
lamella honeycomb filter plate clarifiertube settler
MOQ:
10 pcs
size:
Diameter: 25mm, 35mm, 50mm, 80mm
Certification:
SGS
Environmental protection standard:
CJ/T83-1999
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Wooden pllate with plastic foam outside
Port
Shanghai &Tianjin
Lead Time:
Quantity(Cubic Meters)1 - 100101 - 1000 >1000
Est. Time(days)720To be negotiated
Product Description

lamella honeycomb filter plate clarifier  tube settler

Tube settlers, also called lamella clarifiers, widely used in all different clarifiers to remove sand for water treatment.

The settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area. This provides for a particle settling depth that is significantly less than the settling depth of a conventional clarifier, reducing settling times.

Product Introduction







Item Tube settler media
MaterialPPPVCFRP
Diameter( mm)æ35æ50æ80æ35æ50æ80æ35æ50æ80
Sheet quantity /m2403220403220403220
Thickness (mm)0.50.450.70.50.450.70.50.50.7
Weight (kg/m2)211616312323413131
One sheet size(mm)1000*1000*δ1000*1000*δ1000*1000*δ
One block size(mm)1000×1000×8661000×1000×8661000×1000×866
ColorWhiteBlueCan be customized
Assemble method Electrical heatingGlueGlue
Installation angle60°60°60°
Temperature5~505~505~70
Proportion  g/cm30.921.35~1.461.8
Transportation modeBy pcsBy pcsBy pcs
