Home > Products > 610/305mm width black Cooling Tower parts Cooling Tower fill

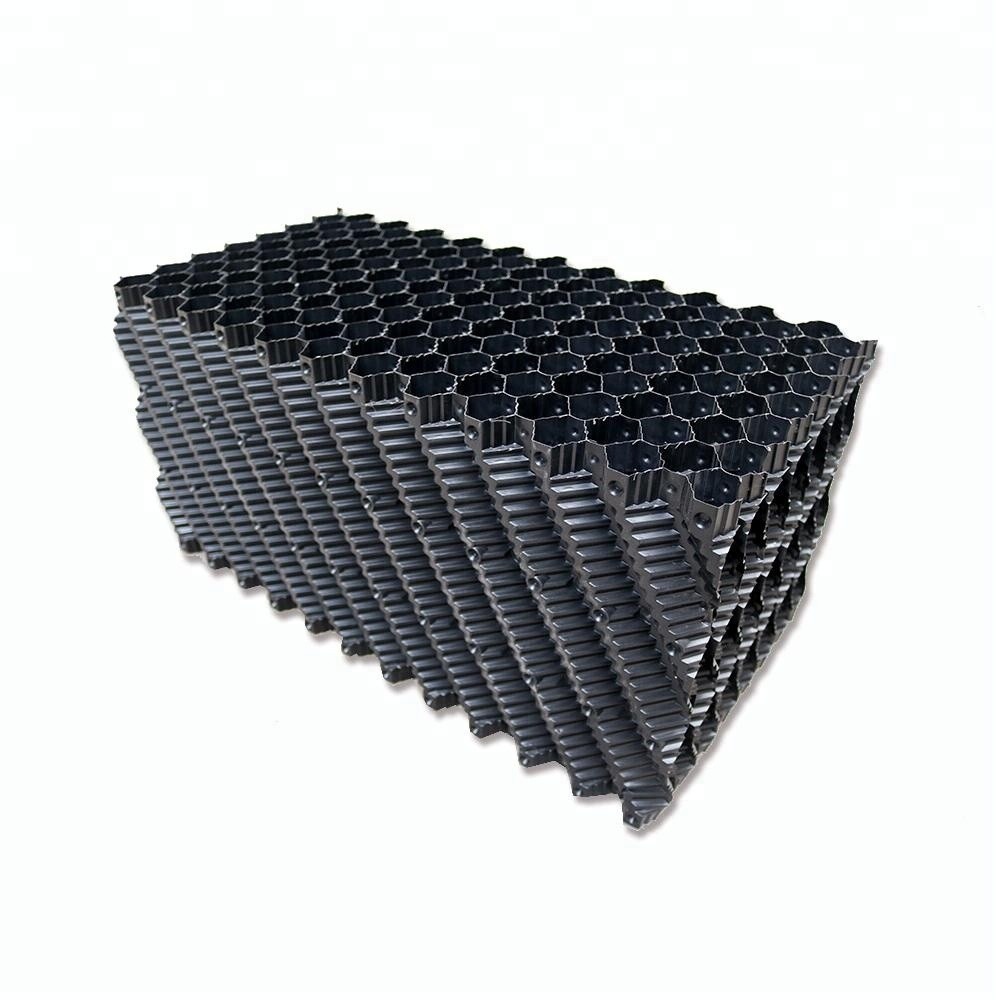

610/305mm width black Cooling Tower parts Cooling Tower fill
Click on the image to view the original image
Product: views:2610/305mm width black Cooling Tower parts Cooling Tower fill
Branch: LANYU
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 19:45
  Negotiated
Product Details
Overview
Quick Details
Cooling Type:
Cross Flow
Power(W):
0
Dimension(L*W*H):
1220*305/610mm
Weight:
600g/square Meter
Warranty:
12 Months
After-sales Service Provided:
Online support
Applicable Industries:
Cooling tower
Condition:
New
Material:
PVC
Place of Origin:
Hebei, China
Brand Name:
LANYU
Voltage:
0
Certification:
ISO9001
Name:
610/305mm width black Cooling Tower parts Cooling Tower fill
Color:
Black,Green
Application:
cooling tower
Sheet thickness:
0.25-0.4mm
Fill width:
150/305/600mm
sheet spacing:
12mm, 19mm, 15mm
Other name:
cooling tower filler plastic sheet
Package:
Bulk
Usage:
Cooing Tower
sample:
free
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Wooden Pallet, Wooden Crate or as your request.
Port
TIANJIN
Lead Time:
Quantity(Pieces)1 - 50005001 - 10000 >10000
Est. Time(days)1530To be negotiated
Video Description

             610/305mm width black Cooling Tower parts Cooling Tower fill

Product Description



OW cooling tower fill belong to counter flow cooling tower fill, it is glued together to be a block which is full of the middle bottom in tower. The thickness are 0.28mm-0.38mm; the width are 150mm,305mm,610mm; the length are 1200mm,1800mm,2000mm,2400mm; the pitch distance are 12mm,15mm,19mm and 25mm.

The pitch 12mm 19mm is normal size. It is also called CF1900,CF1200. It means the fill will be glue to be a block which size is 305mmx305mmx1200mm. The honeycomb is in the vertical direction to make sure the cool air meet the hot water directly.

Usually there are 2 or 3 layers in the bottom of the cooling tower. There are PVC air inlet louver match the CF1900 fill to make sure the water-  treatment surface area proportion arrive to 248m2/m3, and the typical face velocity arrive to 2.0-3.5m/s.



NameOW cooling tower fill PVC cooling tower filler plastic sheet for cooling tower
MaterialPVC, PP
Nomal Size

305mmx305mmx1200mm,150*305*1200mm,610*305*1200mm

Fluted size12mm,15mm,19mm and 25mm
Shaping modePlastic extrusion mould
Sheet thickness0.28-0.37MM ,also can be customized
Packing DetailsIn bundle, wooden pallet or as requested
Free Sample Delivery Time5-10dyas
Production DateWithin 30days



Detail of  cooling tower fill PVC cooling tower filler plastic sheet for cooling tower fill



150mm width OW cooling tower fill





305mm width OW cooling tower fill



500 width OW cooling tower fill





600 width OW cooling tower fill

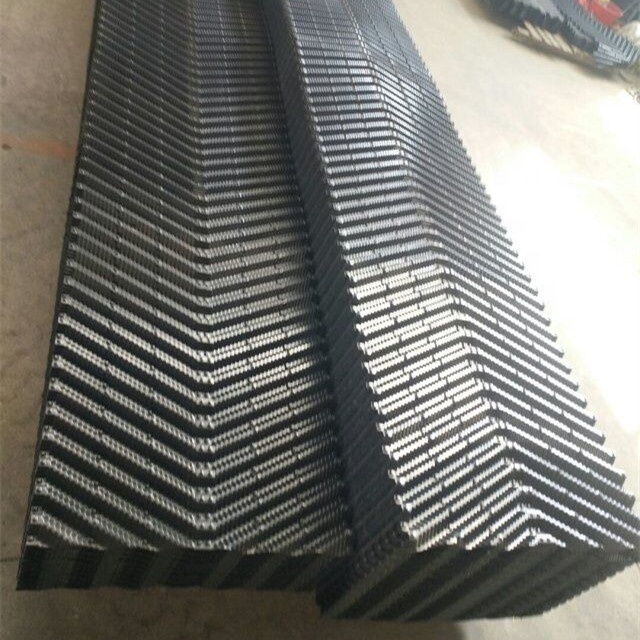

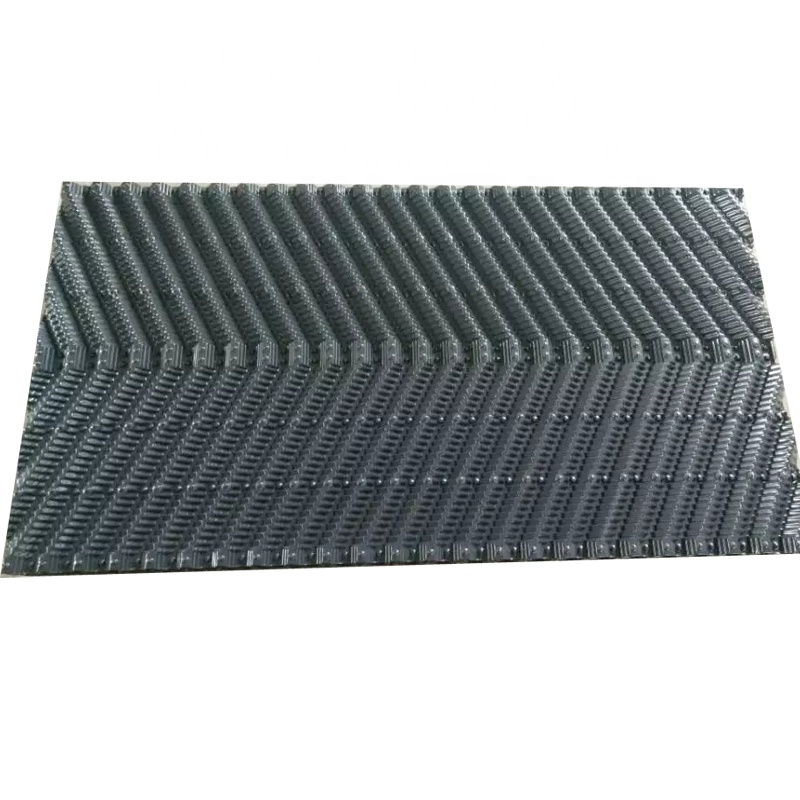

Detail of OW cooling tower fill







 Application of OW cooling tower fill



Packaging of OW cooling tower fill





Releted product about cooling tower fill



If there is any purchase need about OW cooling tower fill, please contact me freely.
