Overview
Quick Details
- Processing:
- Storage Tank
- Applicable Industries:
- Hotels, Building Material Shops, Farms, Construction works
- Condition:
- New
- Place of Origin:
- Hebei, China
- Brand Name:
- LanYu
- Processing Types:
- Water
- Voltage:
- .
- Power(W):
- .
- Weight:
- .
- Dimension(L*W*H):
- 1mX1m, 1.22m*1.22m plate
- Certification:
- .
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support
- Product Name:
- agriculture water storage tank rectangular water tank
- Panel thickness:
- 2 - 5mm
- Product Usage:
- Fire fighting/industrial water
- Panel size:
- 1*1m, 1*0.5m, 0.5*0.5, 1.22*1.22m
- Accessories:
- hot dip galvanized, stainless steel
- Foundation:
- concrete base
- Bottom base:
- Channel steel
- Capacity:
- 1-1000m3 of water tank storage
- Working time:
- more than 20 years
Supply Ability
- Supply Ability:
- 1000 Cubic Meter/Cubic Meters per Month quick delivery of rectangular water tank
Packaging & Delivery
- Packaging Details
- agriculture water storage tank are always packed in pallet, wood carton
- Port
- Tianjin port

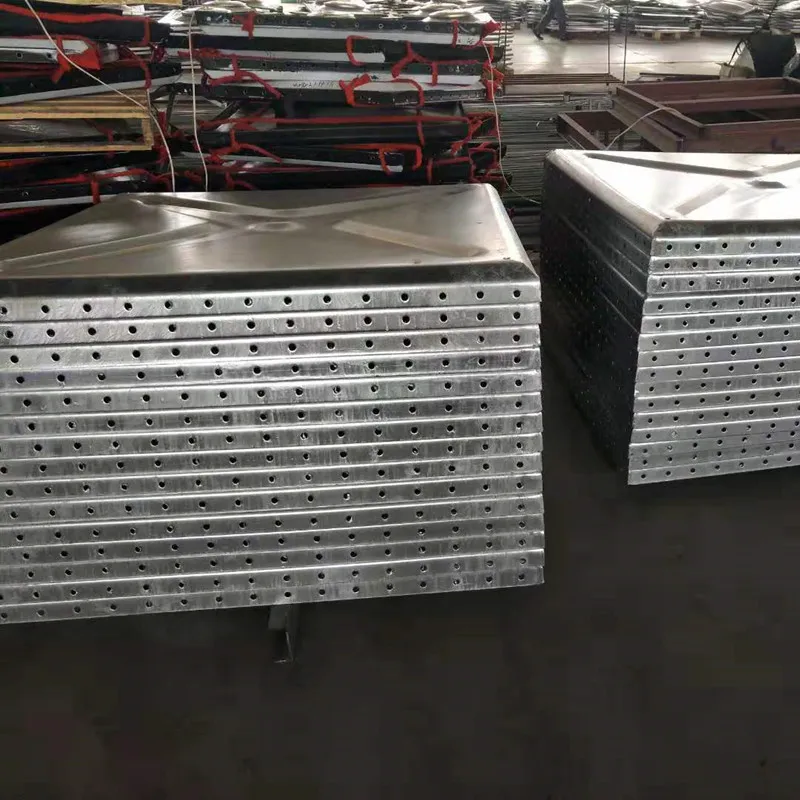

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 100 >100 Est. Time(days) 15 To be negotiated
Product Description
underground water tank agriculture water storage tank rectangular water tank
This water tank is widely used in storage and regulation of living water supply & construction water supply, and temporary water storage tanks for expansion of the heating system, condensate tank and construction, geological survey, industry, National defense project etc.Various industries, civil water supply, HVAC, firefighting, food, beverage, vintage, water treatment, medicine, petroleum, chemical and so on. Taking flexible, reasonable plate design, suitable for all sizes combined water tank.
underground water tank agriculture water storage tank rectangular water tank
Material: Galvanized water tank panel;The size of the panel is: 1220*1220mm,1000*1000mm,1000*500mm, 500*500mm.The thickness of the panel mainly includes: 5mm, 4.5mm, 3mm, 2.5mm, 2mm, 1.5mm. It is different according to the tank dimension. Flanges: The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.Reinforcement Method: All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shallbe made of hot-dipped galvanized material.
Water tank should be regularly cleaned, try to prevent water into the trash
Food grade plastic with stainless steel bolts
Panel: galvanized hot dipped panel with 12pcs of bolts hole
Water tank application
•Pump Chambers•Emergency Water Storage•Rainwater Harvesting & Storage•Potable Water Storage (drinking water) •Effluent/Acid and alkali solution treatment & Storage •Hospital,buildings,building site,school,campgrounds and other places
Galvanized water tank package
FRP/GRP water tank
Galvanized water tank
Stainless steel water tank
