Click on the image to view the original image
- Applicable Industries:
- Construction works , water treatment
- Place of Origin:
- Hebei, China
- Brand Name:
- Lanyu
- Material:
- Pallet, PP, PVC
- Weight:
- .
- Size:
- 1m*1m
- Power:
- .
- After-sales Service Provided:
- Online support
- Warranty:
- Unavailable
- Name:
- 1mm thickness PP lamella tube settler
- Color:
- White, blue, black
- Application:
- honeycomb design
- Other name:
- Hexangular honeycomb tube packing
- Diameter:
- 35/50/80mm
- Shaping dimension:
- 1000*1000*866mm
- Sample:
- small piece of tube settler
- MOQ:
- 1M3
- Supply Ability:
- 800 Cubic Meter/Cubic Meters per Week quick delivery of PP tube settler
- Packaging Details
- Tube settler are always packed with plastic film+packing belt+pallet
- Port
- Shanghai

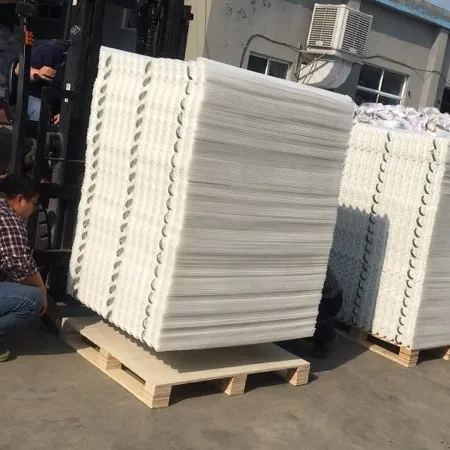

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Cubic Meters) 1 - 68 >68 Est. Time(days) 15 To be negotiated
1mm thickness PP lamella tube settler
1. Clarifiers equipped with tube settlers can operate at 2 to 4 times the normal rate of clarifiers/basins without tube settlers.
2.It is possible to cut coagulant dosage by up to half while maintaining a lower influent turbidity to the treatment plant filters.
3.Less filter back washing equates to significant operating cost savings for both water and electricity.
4.New installations using tube settlers can be designed smaller because of increased flow capability.
5.Flow of existing water treatment plants can be increased through the addition of tube settlers.
6.Tube settlers increase allowable flow capacity by expanding settling capacity and increasing the solids removal rate in settling tanks.
lamella plate clarifier 50mm diameter plastic 1mm thickness PP lamella tube settler
Tube settler design avoids thin wall membranes and utilizes forming techniques to minimize component stress and subsequent environmental stress cracking fatigue.
Tube settler offer an inexpensive method of upgrading existing water treatment plant clarifiers and sedimentation basins to improve performance. They can also reduce the tankage/footprint required in new installations or improve the performance of existing settling basins by reducing the solids loading on downstream filters.
Openiing Diameter(mm) | Pieces/M3 | Sheet Thickness (mm) |
25 | 50 | 0.4-0.5 |
35 | 42 | 0.45-0.5 |
50 | 30 | 0.5-0.8 |
80 | 19 | 0.6-0.8 |
1mm thickness PP lamella tube settler
Municipal, Power, Pharmaceutical, Chemical, Electroplating, Metallurgy, Machinery, Papermaking, Printing and Dyeing, Medicine, Food processing, Aquaculture, with the continous improvement and the deepening use of our products. Our mbbr media will be used more and more widely.
In view of the different kinds of waste water, we can design different types of filter media according to customer's personalized demand, and also can develop the new filter media according to customer's drawing.
1mm thickness PP lamella tube settler
lamella plate clarifier 50mm diameter plastic incline tube settler media
Suspended Ball
Two-double ball which made of PP & PE,Outer structure is two net-shaped spheres, Inner structure is revolving sphere. Act as waste water treatment & Bio-film Reactor.
Combined filler
Combined filler applied in waste water treatment of
petrochemical, food, textile, Dyeing ,
leather, Pharmacy.Soft filler/water
treatment .
Elastic filler
High efficient water treatment process in purifying organic wastewater, whose most important part is the bio-membrane attached on the carrier.
Polyhedral hollow ball filler
Biochemical ball
Marely cooling tower fill
PP PVC Tube Settler Lamella Plate Clarifier
If you have some interets about our PP PVC Tube Settler Lamella Plate Clarifier,we welcome to contact us. We will reply you with detail information within 24 hours.
