- Place of Origin:
- Hebei, China
- Brand Name:
- Lanyu
- Model Number:
- LYDR01
- Application:
- cable push pull tool
- Surface Treatment:
- ABS plastic coasted
- Technique:
- pultrusion
- Item:
- 12mm 300m fiberglass traceable Continuous duct rodder
- Material:
- FIBERGLASS
- Diameter:
- 4 - 18mm
- Length:
- 30m-500m (OEM)
- Color:
- yellow, orange, black, blue, white, green
- Accessories:
- frame, wheel, copper connectors
- Marker:
- Meter marker
- MOQ:
- 1 set of Continuous duct rodder
- Working temperature:
- -40~80 degree
- Breaking tension:
- 4.5T
- Supply Ability:
- 2880 Set/Sets per Month quick delivery of traceable Continuous duct rodder
- Packaging Details
- 12mm 300m duct rodder is packed with woven bag wrap and carton box
- Port
- Tianjin port

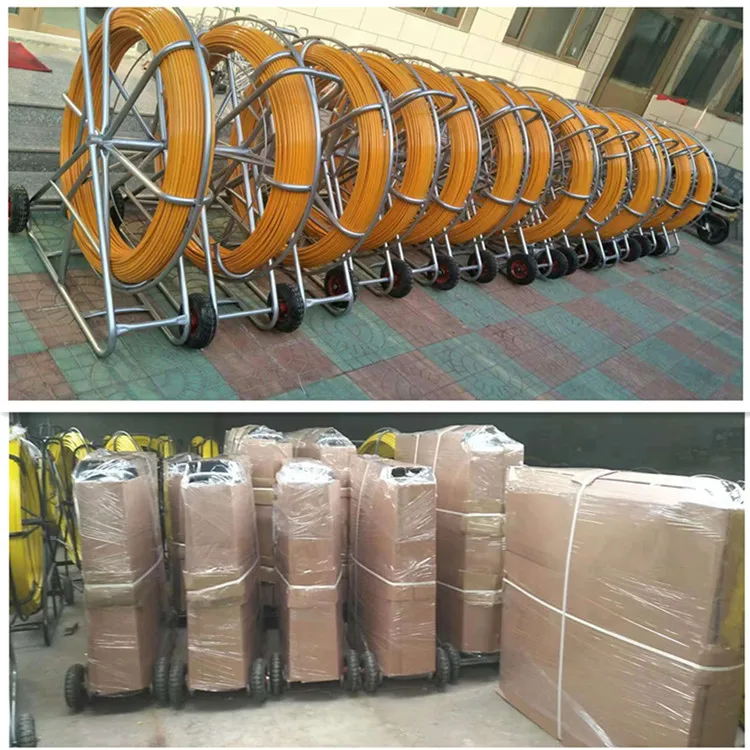

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 2 3 - 220 >220 Est. Time(days) 7 15 To be negotiated
12mm 300m fiberglass traceable Continuous duct rodder
Fiberglass duct rodder is selected as a special tool for pulling electric cables and optical fiber cables in telecom, power industries, buildings and many other fields. The rod is made of fiberglass and high strength resin at high temperature, it is coated by high density polyethylene engineering plastic as its protected layer, which makes the duct rodder cover sliding on surface, durable, corrosion resistant and has good insulation performance, these make it safe for using in cable occupied duct. Along with pull head and handcart, it features easy to move and operate. The fiberglass duct rodder wil be equipped with different size of reels in accordance with the length of the rod, there are wheels on the reel to make it convenient for moving, it is an ideal tool for laying cables.
12mm 300m fiberglass traceable Continuous duct rodder | ||||||
Material | Epoxy fiber glass(inner core) and imported ABS(out layer) | |||||
Parameter Frame Dimension 1300mm*450mm*1330mm 1200mm*420mm*1220mm 980mm*350mm*1000mm 680mm*240mm*700mm 420mm*180mm*400mm | Reinforcement | E-Glass Fiber | ||||
Glass content of inner part | E-Glass Fiber | |||||
Density | >1.9g/m3 | |||||
Diameter tolerance | +/- 0.1mm | |||||
Work situation temperature | - 40℃ ~ +80℃ | |||||
Min pulling strength | 4000N +/-5% | |||||
Tensile modulus | >3000MPa | |||||
Consistency of rod | 150g+/-5% | |||||
Flexural modulus | >3000MPa | |||||
Elongation at Break | 2.5 - 3% | |||||
