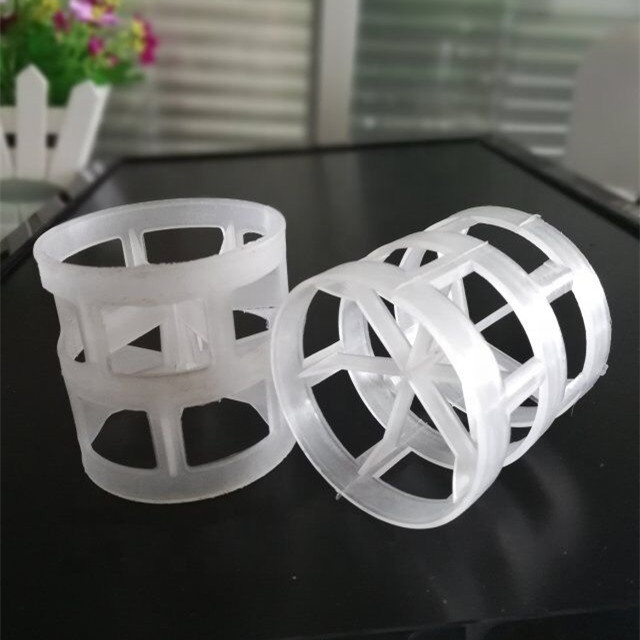

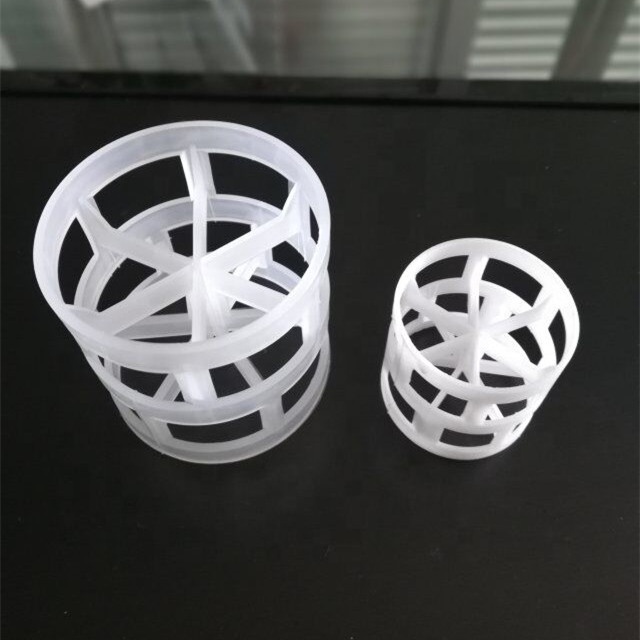

Malaysia gas scrubbers Different Structure Plastic 50mm PP pall ring
Pall ring is suitable for using in petroleum, chemical, chlor-alkali, gas, environmental protection and other industries in medium and low temperature (60-150 degrees) stripping, absorption and washing towers, carbon dioxide degassing towers, ozone contact reaction towers, etc. as contact fillers and other reaction towers.
Pall Ring Features:
1. Higher capacity and lower pressure drop than ceramic packing.
2. Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.
3. Relatively high liquid hold-up allows good absorption efficiency with slow chemical reaction. 4. Lower sensitivity to liquid and vapor distribution quality allows use with conventional liquid distributors.
5. Ring and spoke construction provides high mechanical strength, which allows use in deep beds.
Technical Data
| Plastic Pall Ring | |||||
| Material | PE,PP,RPP,PVC,CPVC,PVDF,PTFE | ||||
| Size | 16mm,25mm,38mm,50mm,76mm,80mm,90mm,100mm | ||||
| Color | Transparent, or customized | ||||
| Application | Adsorption, Scrubbing, Separation, Plastic Packed Columns, ect. | ||||
| Item | Size D*H*T(mm) | Number per m³ | Surface Area m²/m³ | Free Volume % | F factor m-1 |
| Dg16 | 16x16x1.0 | 180000 | 274 | 90 | 376 |
| Dg25 | 25x25x1.0 | 53500 | 213 | 91 | 285 |
| Dg38 | 38x38x1.2 | 15800 | 151 | 91 | 200 |
| Dg50 | 50x50x1.5 | 6500 | 100 | 91.5 | 130 |
| Dg76 | 76x76x2.6 | 1930 | 72 | 92 | 9 |
We can supply different types of tower packing medias:
Tower packing medias packaging:
Welcome your inquiry anytime.
