19mm Pitch PVC PP honeycomb Cooling Tower fill
OW cooling tower fill belong to counter flow cooling tower fill, it is glued together to be a block which is full of the middle bottom in tower. The thickness are 0.28mm-0.38mm; the width are 150mm,305mm,610mm; the length are 1200mm,1800mm,2000mm,2400mm; the pitch distance are 12mm,15mm,19mm and 25mm.
The pitch 12mm 19mm is normal size. It is also called CF1900,CF1200. It means the fill will be glue to be a block which size is 305mmx305mmx1200mm. The honeycomb is in the vertical direction to make sure the cool air meet the hot water directly.
Usually there are 2 or 3 layers in the bottom of the cooling tower. There are PVC air inlet louver match the CF1900 fill to make sure the water- treatment surface area proportion arrive to 248m2/m3, and the typical face velocity arrive to 2.0-3.5m/s.
| Name | OW cooling tower fill PVC cooling tower filler plastic sheet for cooling tower |
| Material | PVC, PP |
| Nomal Size | 305mmx305mmx1200mm,150*305*1200mm,610*305*1200mm |
| Fluted size | 12mm,15mm,19mm and 25mm |
| Shaping mode | Plastic extrusion mould |
| Sheet thickness | 0.28-0.37MM ,also can be customized |
| Packing Details | In bundle, wooden pallet or as requested |
| Free Sample Delivery Time | 5-10dyas |
| Production Date | Within 30days |
Detail of cooling tower fill PVC cooling tower filler plastic sheet for cooling tower fill
150mm width OW cooling tower fill
305mm width OW cooling tower fill
500 width OW cooling tower fill
600 width OW cooling tower fill

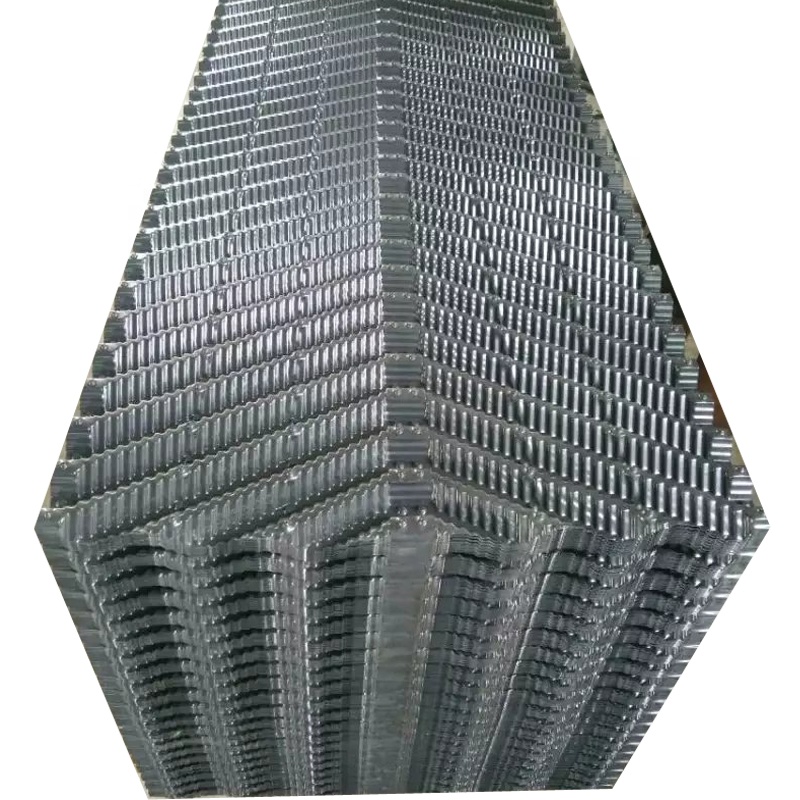

Detail of OW cooling tower fill
Application of OW cooling tower fill
Packaging of OW cooling tower fill
Releted product about cooling tower fill
If there is any purchase need about OW cooling tower fill, please contact me freely.
