Home > Products > 4.5mm 6mm 8mm 10mm 12mm Flexible wire pushing fiber glass cobra duct roddor

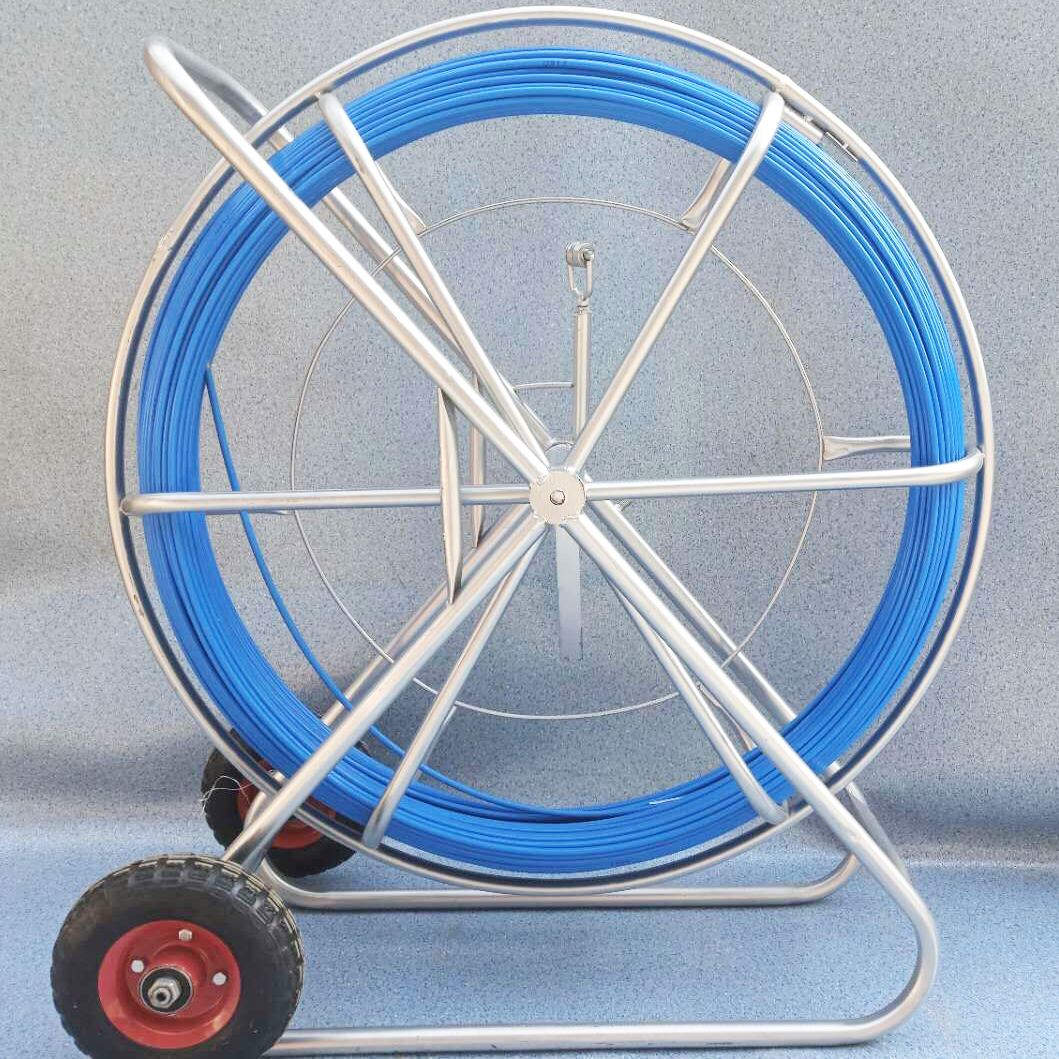

4.5mm 6mm 8mm 10mm 12mm Flexible wire pushing fiber glass cobra duct roddor
Click on the image to view the original image
Product： views：74.5mm 6mm 8mm 10mm 12mm Flexible wire pushing fiber glass cobra duct roddor
Branch： LANYU
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 19:46
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
LANYU
Model Number:
LANYU00
Application:
push pulling rod tools
Surface Treatment:
ABS coated
Technique:
pultrusion
Material:
frp
Product name:
4.5mm 10mm 12mm Flexible wire pushing fiber glass cobra duct roddor
Color:
yellow blue white green orange
frame:
galvanized steel frame or spray paint
Special using:
tracing,cable push pull tools
length:
50 100 150 200 250 300m or customization
diameter:
4.5-16mm
Temperature:
-40℃ to +80℃
Surface:
smooth
sampe:
free
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plastic woven bag and carton box or as your request
Port
TIANJIN
Lead Time:
Quantity(Sets)1 - 100101 - 500 >500
Est. Time(days)2030To be negotiated



4.5mm 6mm 8mm 10mm 12mm Flexible wire pushing fiber glass cobra duct roddor

Lanyu company supply  you good quality fiberglass push pull snake conduit duct rodder made of frp duct rods.

Good flexible and tracing make the duct rods have good effective to finish the snake and electric conduction in the electric cable tubes.



The Specification for FRP Fiberglass Duct Rodder

Product Name
Fiberglass Duct Rodder
Material
Epoxy fiber glass(inner core) and imported ABS (out layer)

 Parameter





Frame dimension 1300mm×450mm×1330mm,1200mm×420mm×1220mm,980mm×350mm×1000mm,
680mm×240mm×700mm,
420mm×180mm×400mm.
Reinforcement
E-Glass Fiber
Glass content of inner part
E-Glass Fiber
Density
>1.9g/m3
Diameter tolerance
±0.10mm
Work situation temperature
-40°C ~ +80°C
Min pulling strength
4000N ± 5%
Tensile modulus
>30000 MPa
Consistency of rod
150g ± 5%
Flexural modulus
>30000 MPa
Elongation at Break
2.5-3%


The Detail of FRP Duct rodder Fiberglass push pull duct rods Duct Rodder

Related product of 11mm fiber optic cable duct rodder Cable Duct Rod underground cable puller



What is the special of our conduit rodder duct rodders?

  1. Permanently etched meters incremental markings allow for easy measuring

  2. High tensile ,strong flexural performance
  3. Flexible and Efficient
  4. Strong anti-aging performance
  5. No running cost

Tips:

We have many kind of size conduit rodder duct rodders,we also can do the custom.If you are interested in our products,please contact with us.

Packaging of fiberglass duct rodder duct rodders





Our Service                                                                                             Best Quality,12 years production

Factory supply directly

Shipment as your required ,by sea or air

After-sale service,any questions will reply in 24 hours
