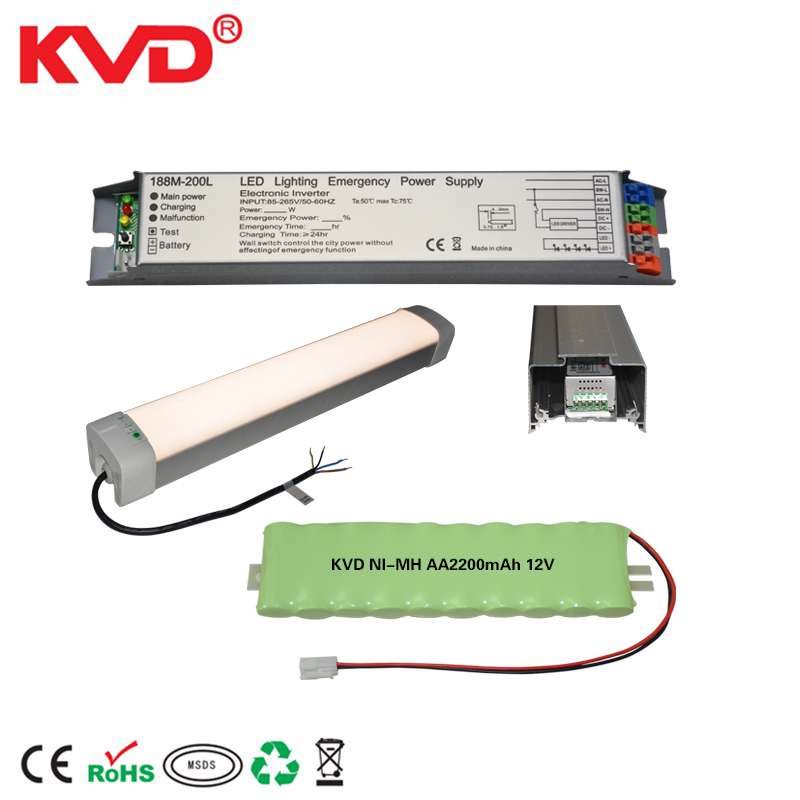

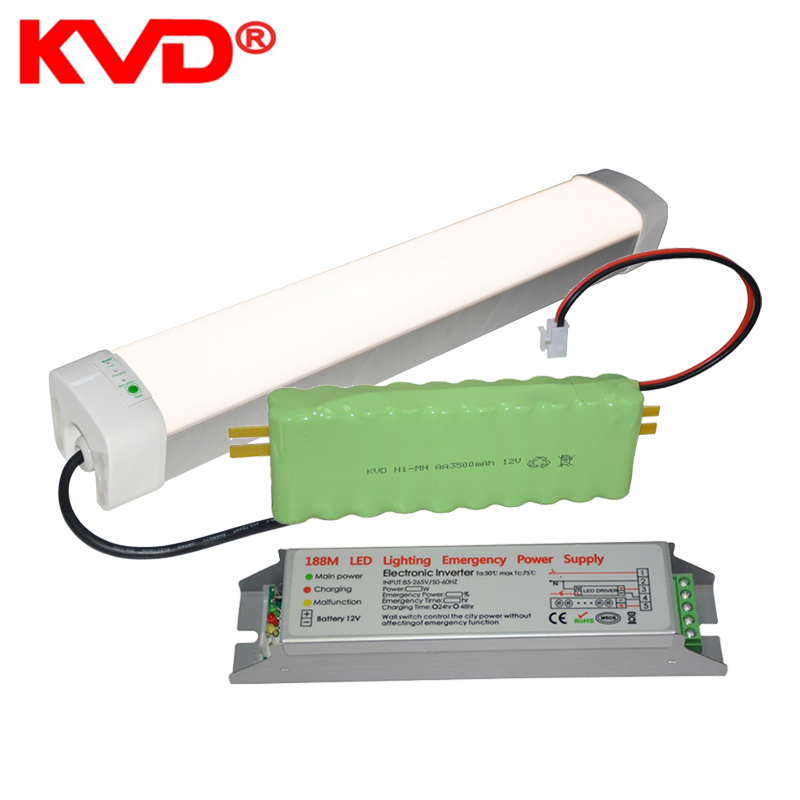

KVD emergency conversion kit for LED Linear tri-proof downlight ceiling light emergency battery backup power
KVD 188M emergency module kit can fit LED Linear light, tri-proof light, Ceiling Light downlight, LED Trofferand other LED light with external AC driver.
Your LED light will work at a reduced power from battery pack when there is a main power failure.
KVD develop and manufacture premium solutions for your emergency needs and battery charging applications
Features:
1. Suitable LED Light Power Range: 20W-200W
2. Power in emergency mode: 10W-30W (adjustable based on your needs, different emergency power need different battery capacity)
3. Input Voltage: 100v-277v AC
4. Frequency: 50/60Hz
5. Battery DC Output Voltage: 10-80v DC
6. Emergency Time: 90mins, 180mins or customizable
7. Battery Type: Li-ion battery, Ni-Cd battery, Ni-MH battery, LiFe04 battery, High temperature battery pack.
8. Over load protection
9. Over discharge protection
10.Over circuit protection
11.Over current protection
12.Over voltage protection
13. 2 years warranty
14. LED Emergency Driver Size: L168*W38*H28mm
15. Includes test button switch and charge indicator accessory
| Model | KVD 188M |
| Suitable for LED light Power | 20W-200W |
| Power in emergency mode | 10W 15W 20W 25W 30W |
| Input Voltage | 100-277V AC |
| Battery Voltage | 10V-80V DC |
| Frequency | 50/60Hz |
| Emergency Duration Time | 90mins / 180mins or Customized |
| Switching Time | <1s |
| Charging Time | 24hr |
| Power Factor | 90% |
| Battery Type | Li-ion battery, Ni-Cd or Ni-MH battery, LiFe04 battery, High temperature batterypack |
| 12V battery | Rechargeable Battery Pack |
| LED emergency driver Size | L168*W38*H28mm |
| Working environment | -20°C--+55°C |
| Working test button | Yes |
| Duration time | Customized based on your needs |
| Note | The battery size can be customized |
| Lifetime | 36 months/ 450 cycles of discharging & recharging |
KVD have emergency driver like follows:
1. 188B-3.7V fit for 5W-45W LED light with external driver.
2. 188B-7.2V fit for 10W-60W LED light with external driver.
3. 188M-200L-7.2v fit for 10W-60W LED light with external driver.
4. 188M-12v fit for 15W-200W LED light with external driver.
5. 188M-200L-12v fit for 20W-200W LED light with external driver.
6. 188D-12v fit for 5W-25W LED tube or LED bulb
7. 188D-12v fit for 12W-30W LED tube or LED bulb
8. 188D-22V fit for 35W-50W LED tube or LED bulb
And KVD have battery pack like Ni-cd, Ni-MH and Li-ion battery pack
Emergency solution is differ from LED type and emergency duration time you want.
So we need to know more before we give you the best quotation:
1. Your LED light type (LED Tube or LED downlight…) and LED light power.
2. Emergency duration time (90mins, 120mins or 180mins..)can be customized.
3. DC output voltage of your LED driver (or can send us a picture of your LED driver)
4. Expected quantity you are going to order.
1. Customers offer general requirement for LED emergency light.
2. Our sales will provide a professional recommendation of our products.
3. After your confirmation of the product, you can ask for a sample and get an appropriate quotation.
4. Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so different kinds of the metal box are available.
Our factory has our own design team to provide whole new emegency project solution to meet your needs, we have developed many ODM products to our cutomers" specify projects.
If you have the needs, please let us know your LED emergency light application environment.
And we provide OEM service to your brand marketing. We always stick the label with our customer"s logo
Our LED emergencly light battery pack are equipped with CE RoSH IEC and MSDS transportation certification.
Each LED emergency Driver are strictly tested in our factory to make evey units working fine at customer"s location.
Each LED Emergency Driver Kit are individually wrapped well for shipping.
And the outer carton is made of thickening and hardening corrugated board K=K. We make sure the LED Emergency pack arrive at your destination safely.
