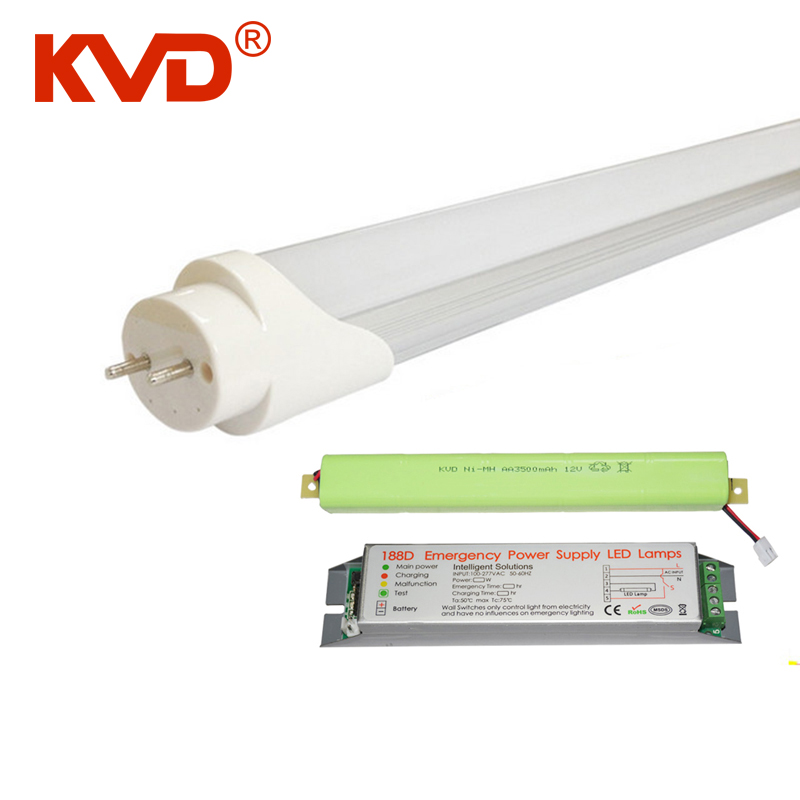

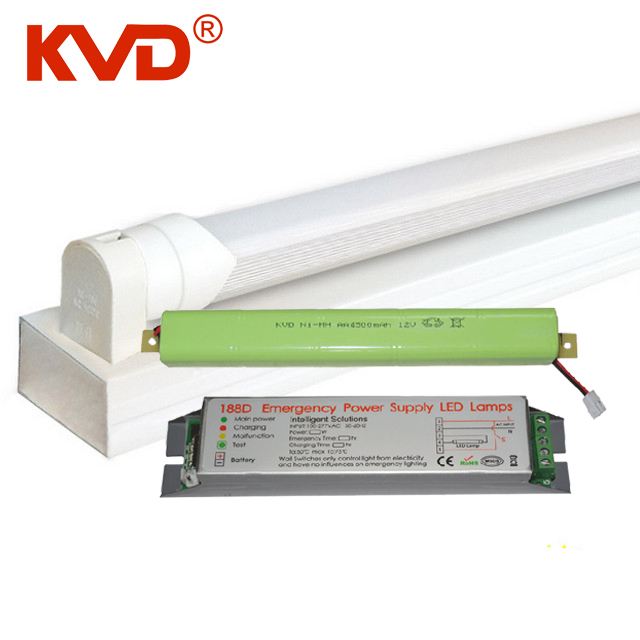

KVD 188D T8 LED tube emergnecy conversion kit for 5W 18W 30W emergnecy light kits for LED TUBE
KVD 188D emergency module kit is specially designed for LED Tube and LED bulb that with internal AC driver.
Your LED light will work at 100% full power from battery pack as the same as from the AC power when there is a main power failure
KVD develop and manufacture premium solutions for your emergency needs and battery charging applications
Features:
1. Suitable LED Light Power Range: 5W-50W
2. Power in emergency mode: 8W
3. Input Voltage: 100v-277v AC
4. Frequency: 50/60Hz
5. Battery DC Output Voltage: 100-277v DC
6. Emergency Time: 90mins, 180mins or customizable
7. Battery Type: Li-ion battery, Ni-Cd battery, Ni-MH battery, LiFe04 battery, High temperature battery pack.
8. Over load protection
9. Over discharge protection
10.Over circuit protection
11.Over current protection
12.Over voltage protection
13. 2 years warranty
14. LED Emergency Driver Size: L168*W38*H28mm
15. Includes test button switch and charge indicator accessory
| Model | KVD 188D |
| Suitable for LED lamp Power | 15W-50W LED Tube or LED Bulb |
| Power in emergency mode | 15W-50W same power as AC power |
| Input voltage | 100-277V AC |
| Battery Output Voltage | 100-277V DC |
| Frequency | 50/60Hz |
| Emergency Duration Time | 90mins /180mins or customized |
| Switching Time | <0.1s |
| Charging Time | >24hr |
| Power Factor | 90% |
| Battery Type | Li-ion battery, Ni-Cd or Ni-MH battery, LiFe04 battery, High temperature battery pack |
| 12V Battery Pack | Rechargeable Battery Pack |
| LED Emergency Driver Size | L168*W38*H28mm |
| Working Environment | -20℃--+55℃ |
| Working Test Button | Yes |
| Note | The battery size can be customized |
Working Environment Attention
Working & storage temperature: -10℃–+45℃(Standard temperature 28℃)
To ensure a longer lifetime, LED emergency battery is needed to be charged and discharged every 3 months.
If stored longer than 3 months in warehouse, emergency battery is needed to be charged and discharged every 3 months.
Our emergency batteries can be charged/discharged 500 cycles if used in a right way.
Please make sure wire connection is correct before switch on from long
There are only a few real factory manufacturing the LED emergency conversion kit in China, many are trading company.
And many Chinese LED factories add our emergency kit to turn their LED light into emergency one, and then export to other countries with much higer price.
Get the right emergency driver and battery pack from us, and wire it to your LED light easily, thus you will save more for your clients.
KVD have emergency driver like follows:
1. 188B-3.7V fit for 5W-45W LED light with external driver.
2. 188B-7.2V fit for 10W-60W LED light with external driver.
3. 188M-200L-7.2v fit for 10W-60W LED light with external driver.
4. 188M-12v fit for 15W-200W LED light with external driver.
5. 188M-200L-12v fit for 20W-200W LED light with external driver.
6. 188D-12v fit for 5W-25W LED tube or LED bulb
7. 188D-12v fit for 12W-30W LED tube or LED bulb
8. 188D-22V fit for 35W-50W LED tube or LED bulb
And KVD have battery pack like Ni-cd, Ni-MH and Li-ion battery pack, emergency solution is differ from LED type and emergency duration time you want.
So we need to know more before we give you the best quotation:
1. Your LED light type (LED Tube or LED downlight…) and LED light power.
2. Emergency duration time (90mins, 120mins or 180mins..)can be customized.
3. DC output voltage of your LED driver (or can send us a picture of your LED driver)
4. Expected quantity you are going to order.
1. Customers offer general requirement for LED emergency light.
2. Our sales will provide a professional recommendation of our products.
3. After your confirmation of the product, you can ask for a sample and get an appropriate quotation.
4. Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so different kinds of the metal box are available.
Our factory has our own design team to provide whole new emegency project solution to meet your needs, we have developed many ODM products to our cutomers" specify projects.
If you have the needs, please let us know your LED emergency light application environment.
Our LED emergencly light battery pack are equipped with CE RoSH and MSDS transportation certification.
Each LED emergency Driver are strictly tested in our factory to make evey units working fine at customer"s location.
Each LED Emergency Driver Kit are individually wrapped well for shipping.
And the outer carton is made of thickening and hardening corrugated board K=K. We make sure the LED Emergency pack arrive at your destination safely.
Established in 2008, Shenzhen KVD Technology is specialized in LED Emergency Driver Module, LED emergency battery pack, LED emergency power supply, LED emergency lights. 10 years research and production experience enable us become the most professional manufacturer in this industry.
So we registered our "KVD" brand finally, we strive to make excellent quality product to maintain a good reputation from customers all over the world. During this session, our defective product is still less than 50pcs, and that"s the reason why our clients have a strong loyalty to us.
Our factory has our own design team, we can provide the best project solution to your special needs, and they always develops the best technology for LED emergency light.
1. We focus on LED Emergency Driver Kit Only for all kinds of LED Emergency Light.
2. We provide the best quality product only and dont provide cheapest bad quality dangerous LED Emergency battery pack.
3. We have already so many clients worked with us before, so we are reliable and trustworthy.
4. All the LED emergency battery power are designed in our own team, we know how to solve your project problem.
5. As a manufacturer, we provide competitive price, choose us, then you work with a factory directly.
Indeed, we provide many LED emergency driver kits to trading company and some LED Light factory. By working with us, we can simplely send our LED Emergency Module to your partner factory for saving a lot.
Please feel free to contact us if you have questions or needs, it"s so simple to get started by contacting us via:
What"s App: +86 189 2676 8556
We are eager to hear from your side!
Welcome to visit our factory!
