KVD LED emergency power supply 5W 90mins 180mins lithium battery led emergency light 5W 18W 20W 45W
Description:

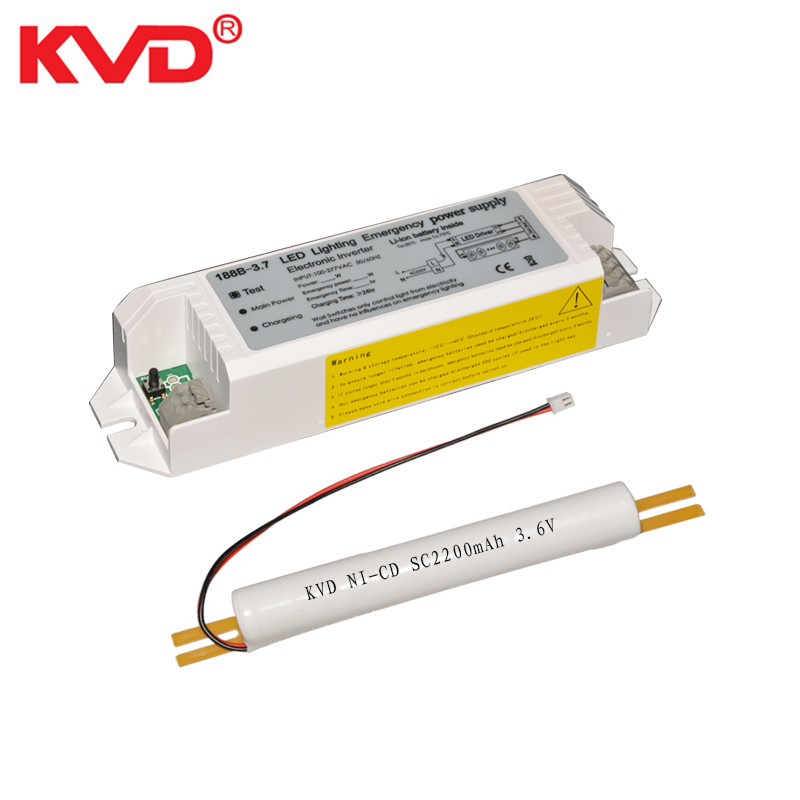

The 188B-3.7V from KVD is a LED emergency conversion kit that allow the same LED fixture to be used for both normal and emergency operation. The unit built-in a Li-ion battery, converter circuit in a single slim plastic case for installation within the LED lighting channel space. When there is a power failure, the 188B-3.7v switches to emergency mode and operates the existing fixture for 90mins or 180mins. The 188B-3.7V will operate an LED array load at 5 watts at a rated voltage of 10V-100V.
Innovative new designed Emergency ballast with battery pack kit for LED ceiling lights, LED panel light, LED down light, LED tri-proof light etc. that with external driver.
CE ROHS MSDS certified LED emergency light battery backup power
LED 10-45W lights lighting fixture emergency coversion Kit battery backup power 1.5 hours or 3 hours customizable.
Features:
•Maintained mode in combination with an LED-driver
•Non-maintained mode
• 1.5 h or 3 h operating time (variant upon request)
• Status display LED
• Compatible with all dimmable and non-dimmable LED-drivers
•Battery protections: over charge protection, over discharge protection, short circuit protection
•Includes test button and charge indicator accessory kit
•Push terminal for easy connecting the wires.
•CE, RoHS compliant
•Ni-Cd, Ni-MH and LiFePO4 battery are available.
•2 years warranty
Specification:
1. LED Lighting application Power: 5W-45W
2. Emergency Power: 3W-4W
3. Emergency Time: 90 mins or 180 mins (can be customized)
4. Input Voltage: 110v-277v
5. Output Voltage: 10v-80v
6. Conversion Efficiency:≥95%
7. Working Lifetime(Hour)30000
8. 2 years warranty.
9. Product Dimesion: 122*78*28mm
Lifetime: 36 months/ 450 cycles of discharging & recharging
| Product Name | LED emergnecy driver and battery power kit |
KVD have emergency driver like follows:
1. 188B-3.7V fit for 5W-45W LED light with external driver.
2. 188B-7.2V fit for 10W-60W LED light with external driver.
3. 188M-200L-7.2v fit for 10W-60W LED light with external driver.
4. 188M-12v fit for 15W-200W LED light with external driver.
5. 188M-200L-12v fit for 20W-200W LED light with external driver.
6. 188D-12v fit for 5W-25W LED tube or LED bulb
7. 188D-12v fit for 12W-30W LED tube or LED bulb
8. 188D-22V fit for 35W-50W LED tube or LED bulb
And KVD have battery pack like Ni-cd, Ni-MH and Li-ion battery pack
Emergency solution is differ from LED type and emergency duration time you want.
So we need to know more before we give you the best quotation:
1. Your LED light type (LED Tube or LED downlight…) and LED light power.
2. Emergency duration time (90mins, 120mins or 180mins..)can be customized.
3. DC output voltage of your LED driver (or can send us a picture of your LED driver)
4. Expected quantity you are going to order.
1. Customers offer general requirement for LED emergency light.
2. Our sales will provide a professional recommendation of our products.
3. After your confirmation of the product, you can ask for a sample and get an appropriate quotation.
4. Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so different kinds of the metal box are available.
Our LED emergencly light battery pack are equipped with CE RoSH and MSDS transportation certification.
Each LED emergency Driver are strictly tested in our factory to make evey units working fine at customer"s location.
Each LED Emergency Driver Kit are individually wrapped well for shipping.
And the outer carton is made of thickening and hardening corrugated board K=K. We make sure the LED Emergency pack arrive at your destination safely.
Established in 2008, Shenzhen KVD Technology is specialized in LED Emergency Driver Module, LED emergency battery pack, LED emergency power supply, LED emergency lights. 10 years research and production experience enable us become the most professional manufacturer in this industry.
So we registered our "KVD" brand finally, we strive to make excellent quality product to maintain a good reputation from customers all over the world. During this session, our defective product is still less than 50pcs, and that"s the reason why our clients have a strong loyalty to us.
Our factory has our own design team, we can provide the best project solution to your special needs, and they always develops the best technology for LED emergency light.
