KVD 3W emergency power supply conversion kit for 5W 18W 20W 25W 45W single battery powered light LED downlight
Description:

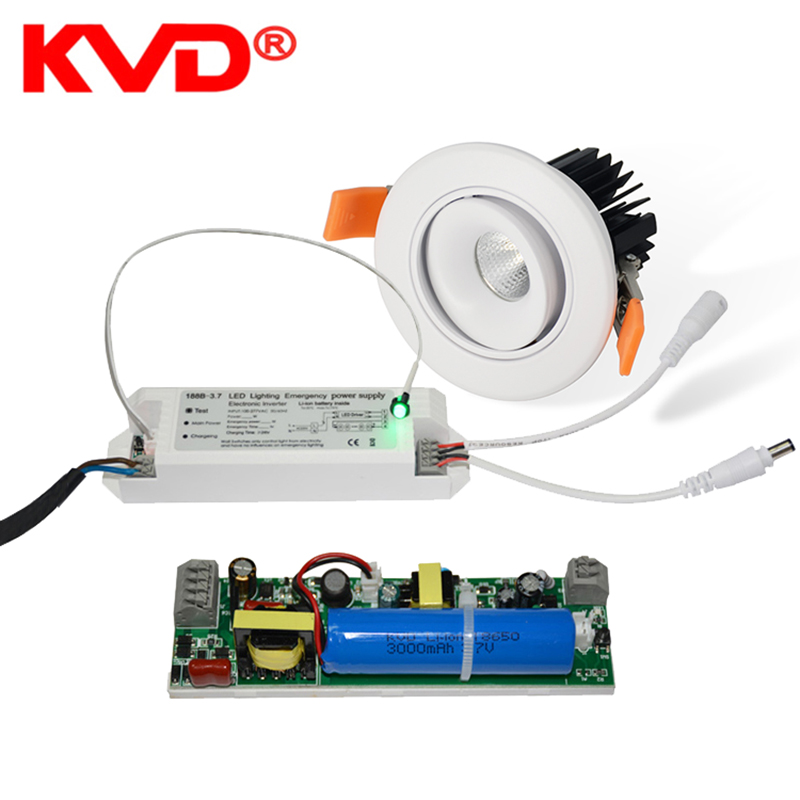

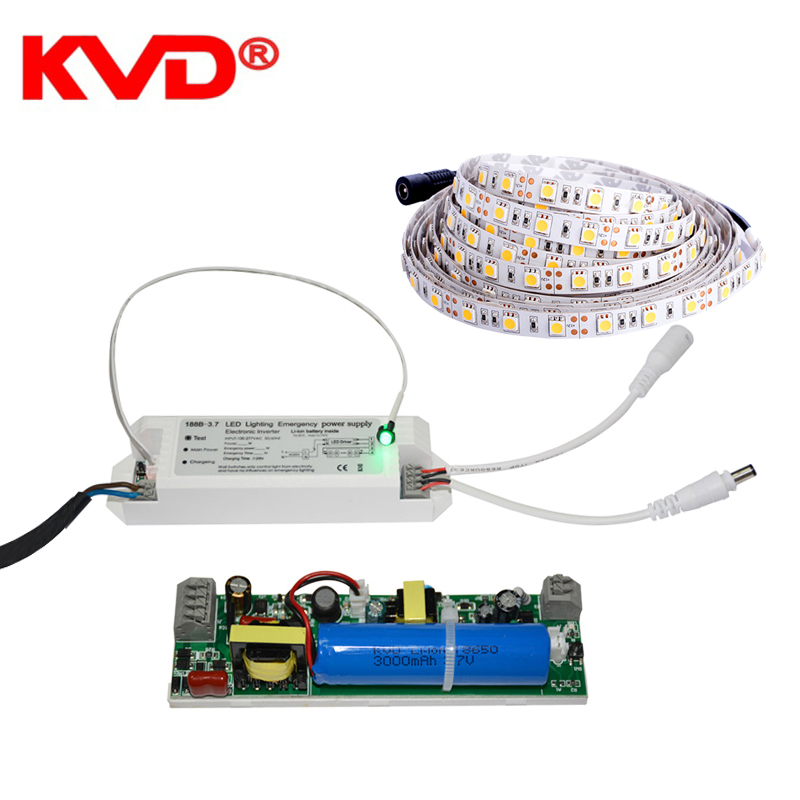

The 188B-3.7V from KVD is a LED emergency conversion kit that allow the same LED fixture to be used for both normal and emergency operation. The unit built-in a Li-ion battery, converter circuit in a single slim plastic case for installation within the LED lighting channel space. When there is a power failure, the 188B-3.7v switches to emergency mode and operates the existing fixture for 90mins or 180mins. The 188B-3.7V will operate an LED array load at 5 watts at a rated voltage of 10V-100V.
Innovative new designed Emergency ballast with battery pack kit for LED ceiling lights, LED panel light, LED down light, LED tri-proof light etc. that with external driver.
CE ROHS MSDS certified LED emergency light battery backup power
LED 10-45W lights lighting fixture emergency coversion Kit battery backup power 1.5 hours or 3 hours customizable.
Features:
•Maintained mode in combination with an LED-driver
•Non-maintained mode
• 1.5 h or 3 h operating time (variant upon request)
• Status display LED
• Compatible with all dimmable and non-dimmable LED-drivers
•Battery protections: over charge protection, over discharge protection, short circuit protection
•Includes test button and charge indicator accessory kit
•Push terminal for easy connecting the wires.
•CE, RoHS compliant
•Ni-Cd, Ni-MH and LiFePO4 battery are available.
•2 years warranty
Specification:
1. LED Lighting application Power: 5W-45W
2. Emergency Power: 3W-4W
3. Emergency Time: 90 mins or 180 mins (can be customized)
4. Input Voltage: 110v-277v
5. Output Voltage: 10v-80v
6. Conversion Efficiency:≥95%
7. Working Lifetime(Hour)30000
8. 2 years warranty.
9. Product Dimesion: 122*78*28mm
Lifetime: 36 months/ 450 cycles of discharging & recharging
| Product Name | LED emergnecy driver and battery power kit |
Established in 2008, Shenzhen KVD Technology is specialized in LED Emergency Driver Module, LED emergency battery pack, LED emergency power supply, LED emergency lights. 10 years research and production experience enable us become the most professional manufacturer in this industry.
So we registered our "KVD" brand finally, we strive to make excellent quality product to maintain a good reputation from customers all over the world. During this session, our defective product is still less than 50pcs, and that"s the reason why our clients have a strong loyalty to us.
Our factory has our own design team, we can provide the best project solution to your special needs, and they always develops the best technology for LED emergency light.
1. We focus on LED Emergency Driver Kit Only for all kinds of LED Emergency Light.
2. We provide the best quality product only and dont provide cheapest bad quality dangerous LED Emergency battery pack.
3. We have already so many clients worked with us before, so we are reliable and trustworthy.
4. All the LED emergency battery power are designed in our own team, we know how to solve your project problem.
5. As a manufacturer, we provide competitive price, choose us, then you work with a factory directly.
Indeed, we provide many LED emergency driver kits to trading company and some LED Light factory. By working with us, we can simplely send our LED Emergency Module to your partner factory for saving a lot.
Each LED Emergency Driver Kit are individually wrapped well for shipping.
And the outer carton is made of thickening and hardening corrugated board K=K. We make sure the LED Emergency pack arrive at your destination safely.
