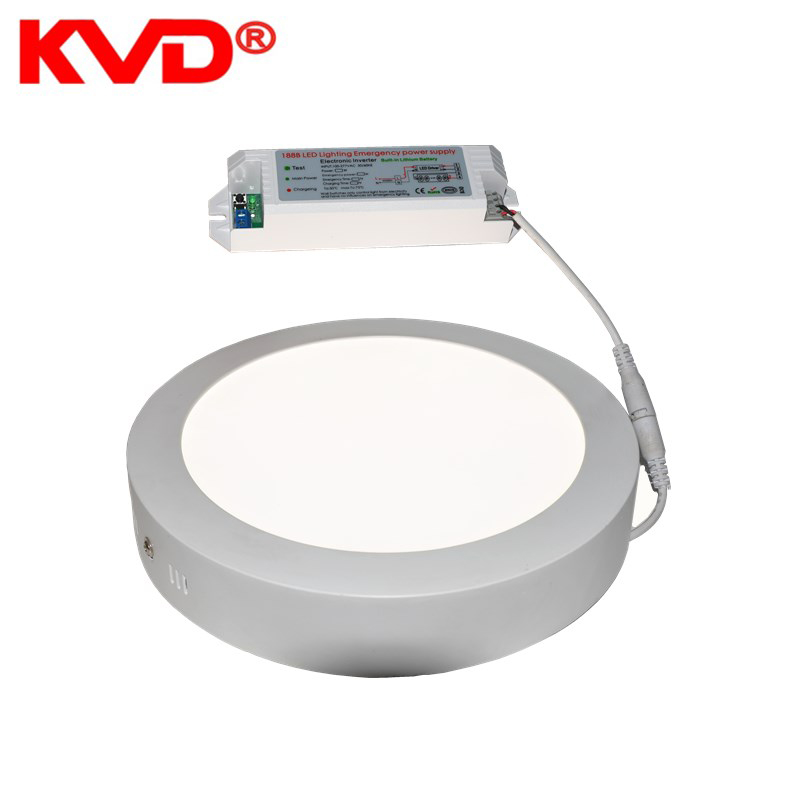

KVD battery operated LED emergency light with 5W emergency power ceiling panel tri-proof down light
Description:

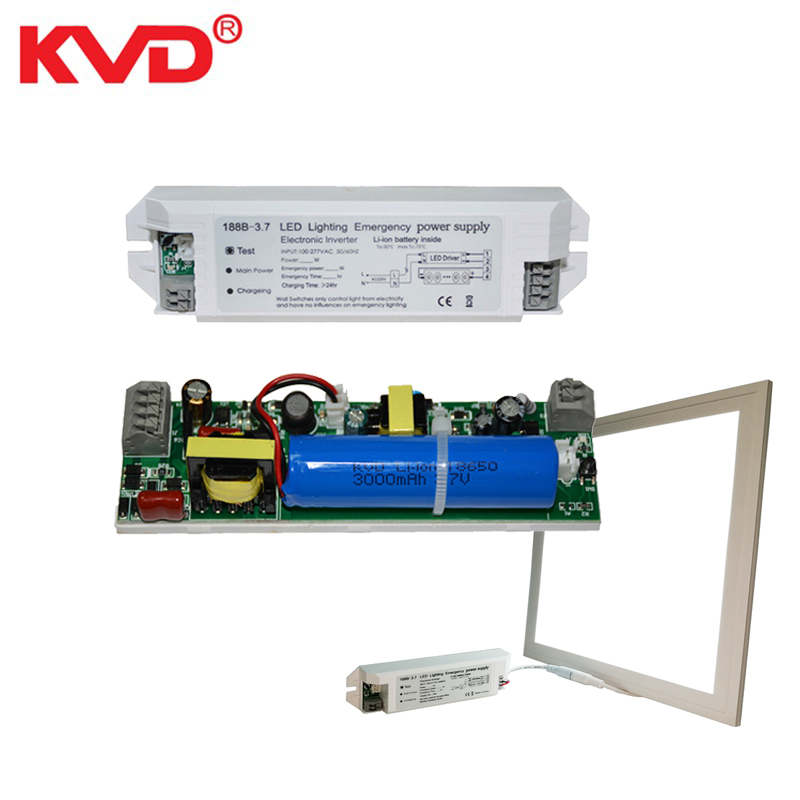

The 188B-3.7V from KVD is a LED emergency conversion kit that allow the same LED fixture to be used for both normal and emergency operation. The unit built-in a Li-ion battery, converter circuit in a single slim plastic case for installation within the LED lighting channel space. When there is a power failure, the 188B-3.7v switches to emergency mode and operates the existing fixture for 90mins or 180mins. The 188B-3.7V will operate an LED array load at 5 watts at a rated voltage of 10V-100V.
Innovative new designed Emergency ballast with battery pack kit for LED ceiling lights, LED panel light, LED down light, LED tri-proof light etc. that with external driver.
CE ROHS MSDS certified LED emergency light battery backup power
LED 10-45W lights lighting fixture emergency coversion Kit battery backup power 1.5 hours or 3 hours customizable.
Features:
•Maintained mode in combination with an LED-driver
•Non-maintained mode
• 1.5 h or 3 h operating time (variant upon request)
• Status display LED
• Compatible with all dimmable and non-dimmable LED-drivers
•Battery protections: over charge protection, over discharge protection, short circuit protection
•Includes test button and charge indicator accessory kit
•Push terminal for easy connecting the wires.
•CE, RoHS compliant
•Ni-Cd, Ni-MH and LiFePO4 battery are available.
•2 years warranty
Specification:
1. LED Lighting application Power: 5W-45W
2. Emergency Power: 3W-4W
3. Emergency Time: 90 mins or 180 mins (can be customized)
4. Input Voltage: 110v-277v
5. Output Voltage: 10v-80v
6. Conversion Efficiency:≥95%
7. Working Lifetime(Hour)30000
8. 2 years warranty.
9. Product Dimesion: 122*78*28mm
Lifetime: 36 months/ 450 cycles of discharging & recharging
| Model | KVD188B small battery operated led light |
| Applicable for | 5w-45w LED lamps |
| Emergency Output Power | 5W |
| Input Voltage | 100-277V AC |
| Frequency | 50-60HZ |
| Battery Voltage | 3.7V |
| Emergency Time | 90 mins/180 mins/ Specified |
| Switching time | ≤1S |
| Charging Time | 24Hr |
| Power Factor | 90% |
| Compatible | lithium Battery |
| 12V battery | Rechargeable battery pack |
| Power Supply Dimmension | 148*38*28mm |
| Working Environment | -20°C -- +55°C |
| WorKing Testing Button | Yes |
| Duration | Custom-made |
| Note | The battery size is customized |
Tri-proof light built-in emergency battery
LED emergency battery
LED emergency light batterys
LED emergency power supply
Color led display: Green=Main circuit. Red=Charging.
Our factory has our own design team to provide whole new emegency project solution to meet your needs, we have developed many ODM products to our cutomers" specify projects.
If you have the needs, please let us know your LED emergency light application environment.
Our LED emergencly light battery pack are equipped with CE RoSH and MSDS transportation certification.
Each LED emergency Driver are strictly tested in our factory to make evey units working fine at customer"s location.
Each LED Emergency Driver Kit are individually wrapped well for shipping.
And the outer carton is made of thickening and hardening corrugated board K=K. We make sure the LED Emergency pack arrive at your destination safely.
Established in 2008, Shenzhen KVD Technology is specialized in LED Emergency Driver Module, LED emergency battery pack, LED emergency power supply, LED emergency lights. 10 years research and production experience enable us become the most professional manufacturer in this industry.
So we registered our "KVD" brand finally, we strive to make excellent quality product to maintain a good reputation from customers all over the world. During this session, our defective product is still less than 50pcs, and that"s the reason why our clients have a strong loyalty to us.
Our factory has our own design team, we can provide the best project solution to your special needs, and they always develops the best technology for LED emergency light.
1. We focus on LED Emergency Driver Kit Only for all kinds of LED Emergency Light.
2. We provide the best quality product only and dont provide cheapest bad quality dangerous LED Emergency battery pack.
3. We have already so many clients worked with us before, so we are reliable and trustworthy.
4. All the LED emergency battery power are designed in our own team, we know how to solve your project problem.
5. As a manufacturer, we provide competitive price, choose us, then you work with a factory directly.
Indeed, we provide many LED emergency driver kits to trading company and some LED Light factory. By working with us, we can simplely send our LED Emergency Module to your partner factory for saving a lot.
1. Customers offer general requirement for LED emergency light.
2. Our sales will provide a professional recommendation of our products.
3. After your confirmation of the product, you can ask for a sample and get an appropriate quotation.
4. Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so different kinds of the metal box are available.
Please feel free to contact us if you have questions or needs, it"s so simple to get started by contacting us via:
What"s App: +86 189 2676 8556
Email: Judy at szkvd dot com
We are eager to hear from your side!
Welcome to visit our factory!
