Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- KVD
- Bulb Type:
- LED
- Battery Type:
- Other, Built-in 2 Li-ion Battery
- Material:
- Plastic
- Usage:
- Camping
- Certification:
- CE
- Specifications:
- 30w*3h*8W
- Product Name:
- LED Emergency ballast
- Input voltage::
- AC 100~277V,50/60Hz
- Out Voltage in emergency::
- DC 10-80V
- Applications Power:
- LED Lamp Max.60W
- Emergency Time::
- 90min 180min or custom-mad
- Charging Time::
- >24h without break
- Certification::
- CE ROHS MSDS
- Highest Surface Temperature::
- 60°C
- Warranty::
- 2 years
- Supply Ability:
- 8888 Set/Sets per Month LED Emergency ballast
- Packaging Details
- export normal packing
LED Emergency ballast
- Port
- Shenzhen
- Picture Example:
![package-img]()
![package-img]()
Rechargeable Battery emergency conversion kit for 10w-60w LED lighting lamp duration time 1.5 or 3 hours LED Emergency ballast

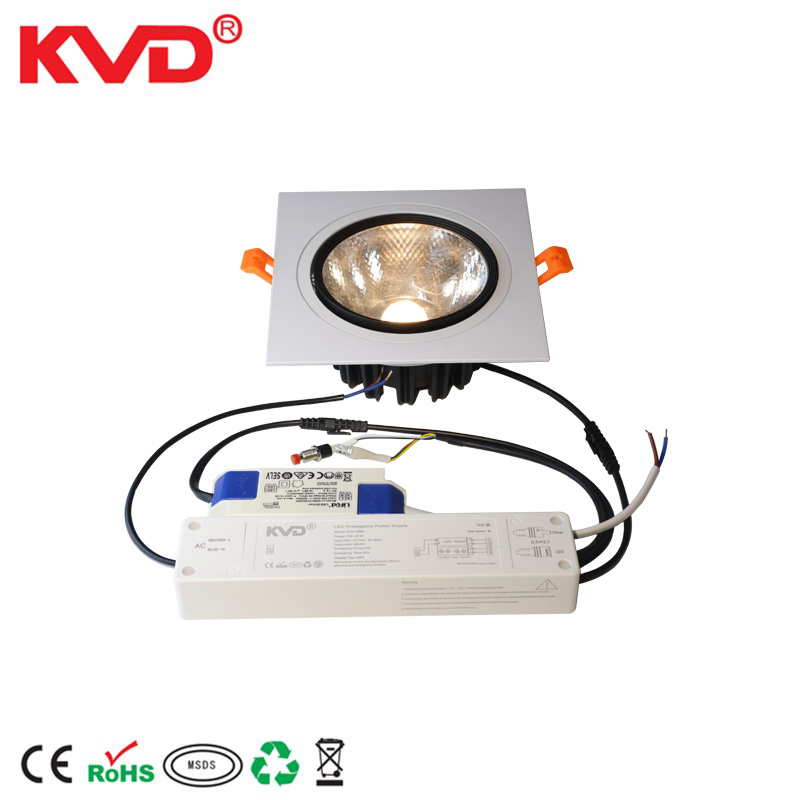

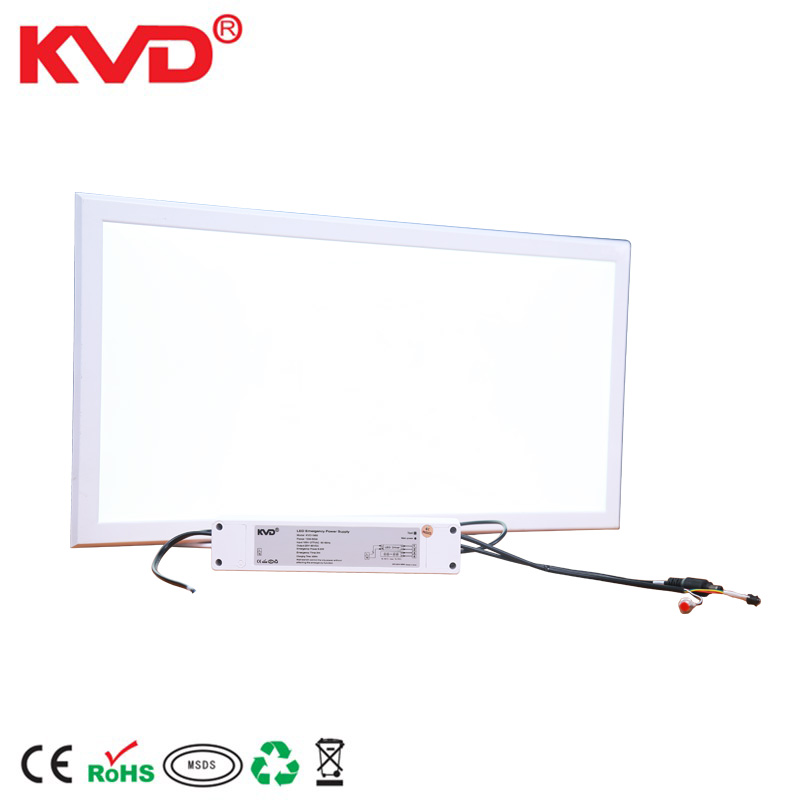

Innovative new designed Emergency ballast with battery pack kit for LED ceiling lights, LED panel light, LED down light, LED tri-proof light etc.
CE ROHS MSDS certified LED emergency light battery backup power
LED 10-60W lights lighting fixture emergency coversion Kit battery backup power 1.5 hours or 3 hours customizable.
1. Fit for LED Lighting application Power :Max.60W
2. Emergency Power: 8W
3. Emergency Time: 90 mins or 180 mins (can be customized)
4. Input Voltage: 110v-277v
5. Output Voltage: 10v-80v
6. With self-checking function
7. Zero Voltage Battery Activation Function
8. Conversion Efficiency:≥95%
9. Working Lifetime(Hour)30000
10. 2 years warranty.
11. Product Dimesion: 215*40*28mm
This new LED Emergency Ballast is equipped with a cover for the connection part, preventing it from dust and moisture.
Lifetime: 36 months/ 450 cycles of discharging & recharging
| Model | KVD188B 7.4v LED Emergency Ballast |
| Applicable for | 10w-60w LED lamps |
| Emergency Output Power | 8W |
| Input Voltage | 100-277V AC |
| Frequency | 50-60HZ |
| Battery Voltage | 7.4V |
| Emergency Time | 90 mins/180 mins/ Specified |
| Switching time | ≤0.1S |
| Charging Time | 24Hr |
Power Factor | 90% |
| Compatible | 2 lithium Battery |
| 12V battery | Rechargeable battery pack |
| Power Supply Dimmension | L215*W40*H28mm |
| Working Environment | -20°C -- +55°C |
| WorKing Testing Button | Yes |
| Duration | Custom-made |
| Note | The battery size is customized |
Color led display: Green=Main circuit. Red=Charging.
Working Environment Attention
Working & storage temperature: -10℃–+45℃(Standard temperature 28℃)
To ensure a longer lifetime, LED emergency battery is needed to be charged and discharged every 3 months.
If stored longer than 3 months in warehouse, emergency battery is needed to be charged and discharged every 3 months.
Our emergency batteries can be charged/discharged 500 cycles if used in a right way.
Please make sure wire connection is correct before switch on from long
KVD have emergency driver like follows:
1. 188B-3.7V fit for 5W-45W LED light with external driver.
2. 188B-7.2V fit for 10W-60W LED light with external driver.
3. 188M-200L-7.2v fit for 10W-60W LED light with external driver.
4. 188M-12v fit for 15W-200W LED light with external driver.
5. 188M-200L-12v fit for 20W-200W LED light with external driver.
6. 188D-12v fit for 5W-25W LED tube or LED bulb
7. 188D-12v fit for 12W-30W LED tube or LED bulb
8. 188D-22V fit for 35W-50W LED tube or LED bulb
And KVD have battery pack like Ni-cd, Ni-MH and Li-ion battery pack
Emergency solution is differ from LED type and emergency duration time you want.
So we need to know more before we give you the best quotation:
1. Your LED light type (LED Tube or LED downlight…) and LED light power.
2. Emergency duration time (90mins, 120mins or 180mins..)can be customized.
3. DC output voltage of your LED driver (or can send us a picture of your LED driver)
4. Expected quantity you are going to order.
1. Customers offer general requirement for LED emergency light.
2. Our sales will provide a professional recommendation of our products.
3. After your confirmation of the product, you can ask for a sample and get an appropriate quotation.
4. Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so different kinds of the metal box are available.
Our factory has our own design team to provide whole new emegency project solution to meet your needs, we have developed many ODM products to our cutomers" specify projects.
If you have the needs, please let us know your LED emergency light application environment.
Our LED emergencly light battery pack are equipped with CE RoSH and MSDS transportation certification.
Each LED emergency Driver are strictly tested in our factory to make evey units working fine at customer"s location.
Each LED Emergency Driver Kit are individually wrapped well for shipping.
And the outer carton is made of thickening and hardening corrugated board K=K. We make sure the LED Emergency pack arrive at your destination safely.
Established in 2008, Shenzhen KVD Technology is specialized in LED Emergency Driver Module, LED emergency battery pack, LED emergency power supply, LED emergency lights. 10 years research and production experience enable us become the most professional manufacturer in this industry.
So we registered our "KVD" brand finally, we strive to make excellent quality product to maintain a good reputation from customers all over the world. During this session, our defective product is still less than 50pcs, and that"s the reason why our clients have a strong loyalty to us.
Our factory has our own design team, we can provide the best project solution to your special needs, and they always develops the best technology for LED emergency light.
1. We focus on LED Emergency Driver Kit Only for all kinds of LED Emergency Light.
2. We provide the best quality product only and dont provide cheapest bad quality dangerous LED Emergency battery pack.
3. We have already so many clients worked with us before, so we are reliable and trustworthy.
4. All the LED emergency battery power are designed in our own team, we know how to solve your project problem.
5. As a manufacturer, we provide competitive price, choose us, then you work with a factory directly.
Indeed, we provide many LED emergency driver kits to trading company and some LED Light factory. By working with us, we can simplely send our LED Emergency Module to your partner factory for saving a lot.
Please feel free to contact us if you have questions or needs, it"s so simple to get started by contacting us via:
What"s App: +86 18926768556
Email: Judy@szkvd dot com
We are eager to hear from your side!
Welcome to visit our factory!
