surface mounted kit led light emergency square non-maintained emergency light rechargeable D50 battery backup SAA
kit led light emergency
Description

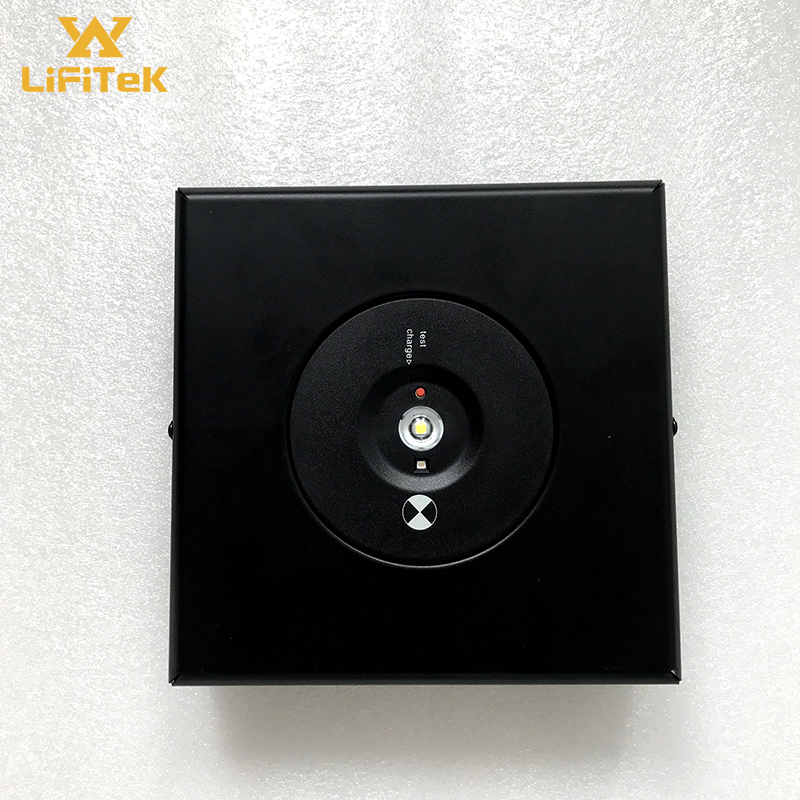

Xlite A3 is a non-maintained emergency spot light with lithium iron phosphate(LiFePo4) battery , which has high quality standard to make sure its safety and high reliability; the whole charging time is ≥16 hours, and the lamp emergency duration is 3 hours.

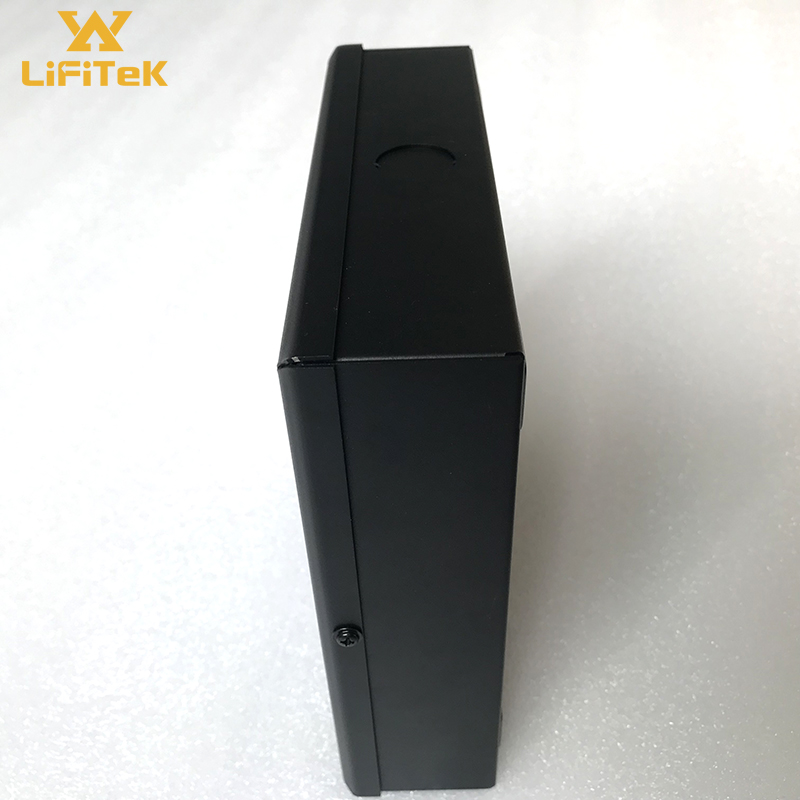

The dimensions of Xlite A3 is L180mm*W180mm*H52mm, can be used for every damp and dry environment emergency lighting, the installation process is convenient.
Efficienct driver circuit
Light up 180 mins of emergency battery power .
Long-life,maintenance-free,rechargeable Lithium Iron Phosphate (LiFePO4 ) battery
Internal solid-state transfer switch automatically connects internal batteries to LED board and LED lamp heads for emergency illumination.
Over charged and Over discharged protection.
CRI> 80
Color redenring : 2700-7000K for your option
Life span: 50000hours
Guarantee: 3 years.
Replaces :Emergency lighting fitting
Application : Emergency Exit & Stand alone;
Emergency Lights for all indoor areas.
Features
Philips LUXEON 5050LED CHIP with good quality lens - D50 (19.4M)
Top quality Battery backup - Lithium Iron Phosphate (LiFePO4 ) battery backup
LED luminous efficiency :120lm/W
Total 2.7W.
LED emergency converter that can transfer standard LED fitting into emergency LED fitting.
Accessory: test switch and charge indicator.
Relevant standard
IEC 61347-1
IEC 61347-2-7
EN 55015
IEC 60598-2-22
AS2293.3
Details
Pictures
Packing
| Product name: 3W NON-MAINTAINED EMERGENCY LAMP |
| Product size: 200*200*52mm |
| Duration: 3hours |
| Light source: Philips LUXEON 5050 |
| Operation: Non-maintained |
| Power source: 220-240VAC~50/60Hz(Customized:100-127VAC~50/60Hz) |
| Recharge period: 16hours |
| Color Temperature: 2700-7000K for your option. |
| LED lifetime: >50,000 Hrs |
| Battery: LiFePO4 6.4v 1500mAh |
| Accessory:test switch and charge indicator. |
| Indicators: Φ3 LED Charging indicator light: Green light on--Battery is charging Green light on--Battery is fully charged Indicator off--The device is something wrong and is malfunction |
| Working temperature: 0°C~60°C |
| Average lifetime without any errors: >5,000 Hrs |
| IP Rating: IP20 |
| Suited for: Indoor |
| Package: a inner box for per piece. 20boxes / carton. |
Certificate
CE ROHS SAA C-TICK AS2293
Company Information
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample order will needs 3-5 working days, mass order will needs 7-15 working days for reference.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to dilivery. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production and shippment
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
What Is LiFePO4 And Why Is It A Better Choice for LED emergency lights?
All lithium chemistries are not created equal. In fact, most American consumers – electronic enthusiasts aside – are only familiar with a limited range of lithium solutions. The most common versions are built from cobalt oxide, manganese oxide and nickel oxide formulations.
First, let’s take a step back in time. Lithium-ion batteries are a much newer innovation and have only been around for the last 25 years. Over this time, lithium technologies have increased in popularity as they have proven to be valuable in powering smaller electronics – like laptops and cell phones. But as you may recall from several news stories over recent years, lithium-ion batteries also gained a reputation for catching fire. Until recent years, this was one of the main reasons lithium wasn"t commonly used to create large battery banks.
But then came along lithium iron phosphate (LiFePO4). This newer type of lithium solution was inherently non-combustible, while allowing for slightly lower energy density. LiFePO4 batteries were not only safer, they had many advantages over other lithium chemistries, particularly for high power applications.
Although lithium iron phosphate (LiFePO4) batteries aren’t exactly new, they’re just now picking up traction in Global commercial markets. Here’s a quick breakdown on what distinguishes LiFePO4 from the other lithium battery solutions:
Safety And Stability
LiFePO4 batteries are best known for their strong safety profile, the result of extremely stable chemistry. Phosphate-based batteries offer superior thermal and chemical stability which provides an increase in safety over lithium-ion batteries made with other cathode materials. Lithium phosphate cells are incombustible, which is an important feature in the event of mishandling during charging or discharging. They can also withstand harsh conditions, be it freezing cold, scorching heat or rough terrain.
When subjected to hazardous events, such as collision or short-circuiting, they won’t explode or catch fire, significantly reducing any chance of harm. If you’re selecting a lithium battery and anticipate use in hazardous or unstable environments, LiFePO4 is likely your best choice.
Performance
Performance is a major factor in determining which type of battery to use in a given application. Long life, slow self-discharge rates and less weight make lithium iron batteries an appealing option as they are expected to have a longer shelf life than lithium-ion. Service life usually clocks in at five to ten years or longer, and runtime significantly exceeds lead-acid batteries and other lithium formulations. Battery charging time is also considerably reduced, another convenient performance perk. So, if you’re looking for a battery to stand the test of time and charge quickly, LiFePO4 is the answer.
Space Efficiency
Also worth mentioning is LiFePO4’s space-efficient characteristics. At one-third the weight of most lead-acid batteries and almost half the weight of the popular manganese oxide, LiFePO4 provides an effective way to make use of space and weight. Making your product more efficient overall.
Environmental Impact
LiFePO4 batteries are non-toxic, non-contaminating and contain no rare earth metals, making them an environmentally conscious choice. Lead-acid and nickel oxide lithium batteries carry significant environmental risk (especially lead acid, as internal chemicals degrade structure over team and eventually cause leakage).
Compared to lead-acid and other lithium batteries, lithium iron phosphate batteries offer significant advantages, including improved discharge and charge efficiency, longer life span and the ability to deep cycle while maintaining performance. LiFePO4 batteries often come with a higher price tag, but a much better cost over life of the product, minimal maintenance and infrequent replacement makes them a worthwhile investment and a smart long-term solution.
Thank you for reading our article with more details on what makes lithium iron batteries the best choice for your application.
