non-maintained saa 3w surface mounted fire resistant emergency led light downlight D50 with AS2293
Non-maintained emergency lamp
Description
Xlite A3 is a non-maintained emergency spot light with lithium iron phosphate(LiFePo4) battery , which has high quality standard to make sure its safety and high reliability; the whole charging time is ≥16 hours, and the lamp emergency duration is 3 hours.
The dimensions of Xlite A3 is L180mm*W180mm*H52mm, can be used for every damp and dry environment emergency lighting, the installation process is convenient.
Efficienct driver circuit
Light up 180 mins of emergency battery power .
Long-life,maintenance-free,rechargeable Lithium Iron Phosphate (LiFePO4 ) battery
Internal solid-state transfer switch automatically connects internal batteries to LED board and LED lamp heads for emergency illumination.
Over charged and Over discharged protection.
CRI> 80
Color redenring : 2700-7000K for your option
Life span: 50000hours
Guarantee: 3 years.
Replaces :Emergency lighting fitting
Application : Emergency Exit & Stand alone;
Emergency Lights for all indoor areas.
Features
Philips LUXEON 5050LED CHIP with good quality lens - D50 (19.4M)
Top quality Battery backup - Lithium Iron Phosphate (LiFePO4 ) battery backup
LED luminous efficiency :120lm/W
Total 2.7W.
LED emergency converter that can transfer standard LED fitting into emergency LED fitting.
Accessory: test switch and charge indicator.
Relevant standard
IEC 61347-1
IEC 61347-2-7
EN 55015
IEC 60598-2-22
AS2293.3
Details

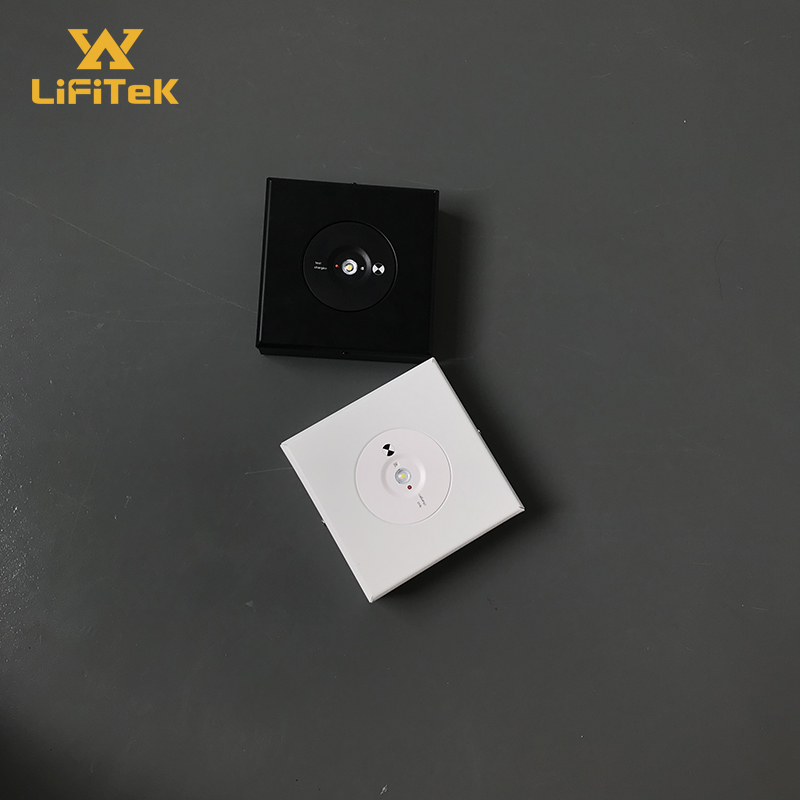

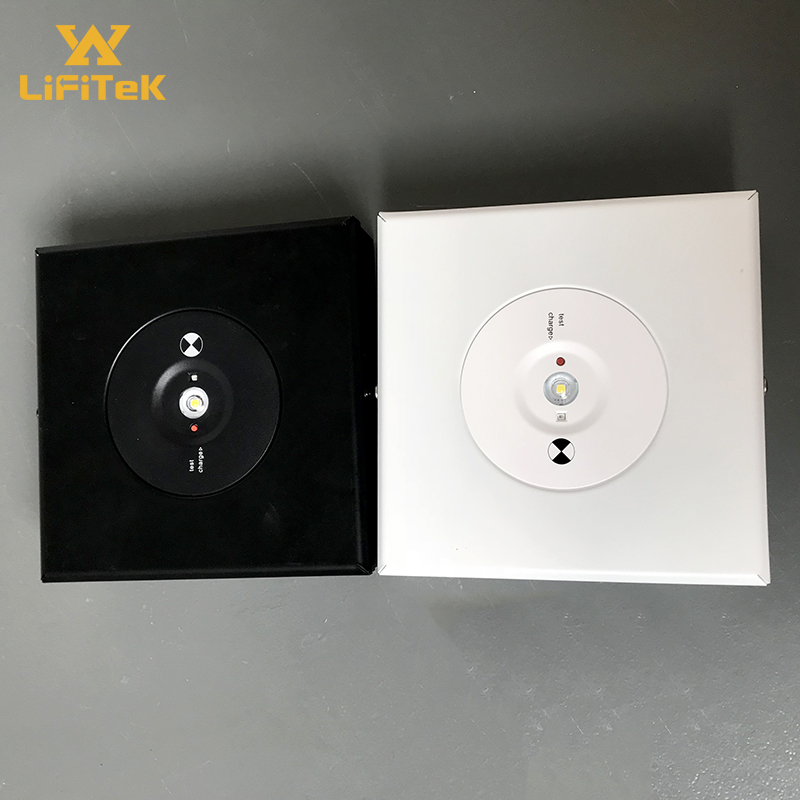

Pictures
Packing
| Product name: 3W NON-MAINTAINED EMERGENCY LAMP |
| Product size: 180*180*52mm |
| Duration: 3hours |
| Light source: Philips LUXEON 5050 |
| Operation: Non-maintained |
| Power source: 220-240VAC~50/60Hz(Customized:100-127VAC~50/60Hz) |
| Recharge period: 16hours |
| Color Temperature: 2700-7000K for your option. |
| LED lifetime: >50,000 Hrs |
| Battery: LiFePO4 6.4v 1500mAh |
| Accessory:test switch and charge indicator. |
| Indicators: Φ3 LED Charging indicator light: Green light on--Battery is charging Green light on--Battery is fully charged Indicator off--The device is something wrong and is malfunction |
| Working temperature: 0°C~60°C |
| Average lifetime without any errors: >5,000 Hrs |
| IP Rating: IP20 |
| Suited for: Indoor |
| Package: a inner box for per piece. 20boxes / carton. |
Certificate
CE ROHS SAA C-TICK AS2293
Company Information
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample order will needs 3-5 working days, mass order will needs 7-15 working days for reference.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to dilivery. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production and shippment
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
