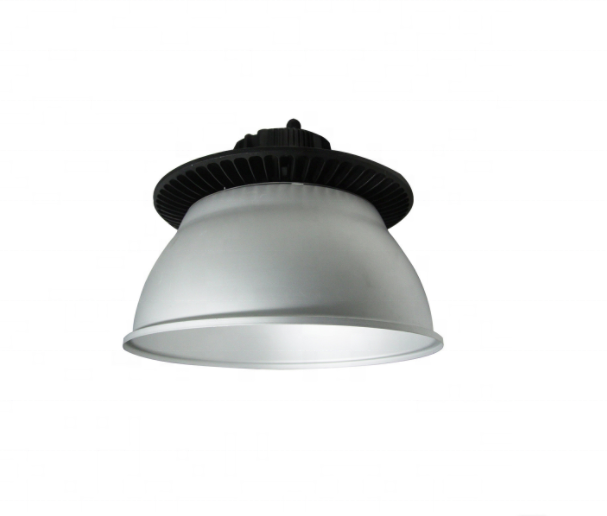

LLX-HB-120 Outdoor IP65 UFO 120W Industrial/Warehouse LED High Bay Light
IP65 LED High Bay Light Feature;
1. Perfect heat disspation, die-casting aluminum UFO shape body
2. Private mould, light weight, good quality
3. High transmittance PC lens
4. Different reflect shade is optional
5. Beam angle:60°°/90°/120°
6. Motion sensor can be added to control the light automatically
Detailed image for the IP65 LED High Bay Light;
Size description for the IP65 LED High Bay Light;
The IP65 LED High Bay Light Specification;
The IP65 LED High Bay Light application;
IMPORTANT SAFETY INFORMATION FOR THE LED HIGH BAY LIGHT:
Input Voltage: AC 120-277V, 50/60Hz
Working Temperature: -25ºC~40ºC
This fitting must be wired in accordance with the National Electrical Code and applicable local codes and ordinances.
Installation and servicing this fitting should be performed by qualified electrician only.
Before installation or maintenance, turn off electric power and allow the fitting to be cool.
Proper grounding is required to insure personal safety. Carefully observe grounding procedure under installation section.
Ensure all electrical connections are secure & that there are no loose strands.
Install the fitting in a well-ventilated environment, keep away from corrosive/explosive materials, flammable gas or
electric dust.
Violent shaking or impact should be avoided when the fitting is working.
To weather proof your outdoor installation, be sure to seal all holes, conduit plugs with silicone caulking.
SUGGESTED METHOD OF INSTALLATION:
ALWAYS SWTICH OFF THE MAINS SUPPLY BEFORE INSTALLATION.
STEP 1: Hang the fitting to the fixing through the hook.
STEP 2: Secure the safety chain to the fixing.
STEP 3: Connect the wires through an IP rate connector.
WARNING:
The product must be grounded and installed in accordance with the National Electrical Code and all local codes.
Failure to do so may increase the RISH OF PERSONAL INJURY, PROPERTY DAMAGE, FIRE AND DEATH.
Longlux much more care the high quality of IP65 LED High Bay Light production,with strict demands for the production line.
