Home > Products > Office Light with PC Cover 2FT/4FT/5FT/6FT LED Linear Light

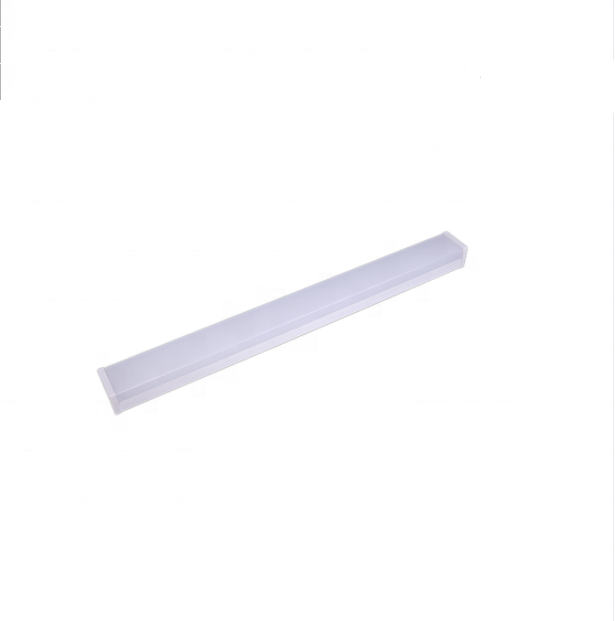

Office Light with PC Cover 2FT/4FT/5FT/6FT LED Linear Light
Click on the image to view the original image
Product： views：10Office Light with PC Cover 2FT/4FT/5FT/6FT LED Linear Light
Branch： Longlux
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 17:35
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Longlux
Model Number:
LLX-LL-P
Lamp Luminous Flux(lm):
100-130lm/W
Working Lifetime(Hour):
50000
Input Voltage(V):
110-277V/220-240V
CRI (Ra>):
80
Application:
office
LED Linear Light Beaming Angle:
80° for LED Linear Light
LED Linear Light LED Chips:
Bridgelux chips for LED Linear Light
LED Linear Light Body Thickness:
0.7mm for LED Linear Light
LED Linear Light PF:
0.95 for LED Linear Light
LED Linear Light Power:
10W-60W LED Linear Light
Light Source:
LED
Item Type:
Pendant Lights
Certification:
ce, EMC, ETL, LVD, RoHS, Saa
Lamp Body Material:
PC(Polycarbonate)
LED Light Source:
led
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Longlux LED Linear Light package with high quality and standard firm export carton.The customized package can be negotiated.
Port
Longlux LED Linear Light accept all ports in China, here quotation based on Shanghai/Ningbo port.
Lead Time:
Quantity(Pieces)1 - 100101 - 30003001 - 10000 >10000
Est. Time(days)192530To be negotiated

Office Light with PC Cover 2FT/4FT/5FT/6FT  LED Linear Light

More details for Longlux LED Linear Light;

Longlux LED Linear Light Features;

High Efficiency and more energy saving up to 70% than normal fluorescent lamp
SMT LEDs, easy to install, 50,000 hrs life span
Safe and healthy to eye
Environmental-friendly: Lead (Pb) free-RoHS compliant
High quality DC driver, no flickering with soft light
Size:Narrow
Housing: Coated Steel + Polycarbonate/Acrylic
Installation:Pendant or Wall Mounted

LED Linear Light Specifications;

Housing: Coated Steel + Polycarbonate
Width: Single LED strip

Model No.LLX-LL-PN-600LLX-LL-PN-1200LLX-LL-PN-1500LLX-LL-PN-1800
Voltage(V)110-277110-277110-277110-277
Rated current(A)10202528
Wattage(W)0.09/0.04A0.18/0.08A0.22/0.1A0.26/0.11A
Lumen(lm)1200220028003400
P.F.0.950.950.950.95
Ra≥80/90≥80/90≥80/90≥80/90
Lifetime(H)50000+50000+50000+50000+
Protection ClassClass 1Class 1Class 1Class 1
IP degreeIP20IP20IP20IP20
Body Size(MM)620*69*821230*69*821530*69*821795*69*82

Housing: Coated Steel + Polycarbonate
Width: Double LED strip

Model No.LLX-LL-PW-600LLX-LL-PW-1200LLX-LL-PW-1500LLX-LL-PW-1800
Voltage(V)110-277110-277110-277110-277
Rated current(A)20374656
Wattage(W)0.18/0.08A0.35/0.15A0.43/0.19A0.52/0.23A
Lumen(lm)2000400050006000
P.F.0.950.950.950.95
Ra≥80/90≥80/90≥80/90≥80/90
Lifetime(H)50000+50000+50000+50000+
Protection ClassClass 1Class 1Class 1Class 1
IP degreeIP20IP20IP20IP20
Body Size(MM)620*109*821230*109*821530*109*821795*109*82

Housing: Coated Steel + Acrylic
Width: Single LED strip

Model No.LLX-LL-AN-600LLX-LL-AN-1200LLX-LL-AN-1500LLX-LL-AN-1800
Voltage(V)110-277110-277110-277110-277
Rated current(A)10202528
Wattage(W)0.09/0.04A0.18/0.08A0.22/0.1A0.26/0.11A
Lumen(lm)1200220028003400
P.F.0.950.950.950.95
Ra≥80/90≥80/90≥80/90≥80/90
Lifetime(H)50000+50000+50000+50000+
Protection ClassClass 1Class 1Class 1Class 1
IP degreeIP20IP20IP20IP20
Body Size(MM)620*68*901230*68*901530*68*901795*68*90

Housing: Coated Steel + Acrylic
Width: Double LED strip

Model No.LLX-LL-AW-600LLX-LL-AW-1200LLX-LL-AW-1500LLX-LL-AW-1800
Voltage(V)110-277110-277110-277110-277
Rated current(A)20364556
Wattage(W)0.18/0.08A0.35/0.15A0.43/0.19A0.52/0.23A
Lumen(lm)2200440055006600
P.F.0.950.950.950.95
Ra≥80/90≥80/90≥80/90≥80/90
Lifetime(H)50000+50000+50000+50000+
Protection ClassClass 1Class 1Class 1Class 1
IP degreeIP20IP20IP20IP20
Body Size(MM)620*124*901230*124*901530*124*901795*124*90

More datas for LED Linear Light ;

Installation instruction for LED Linear Light ;

 LED Linear Light  Application;

Longlux much more care about the high quality and strict demands for LED Linear Light production;
