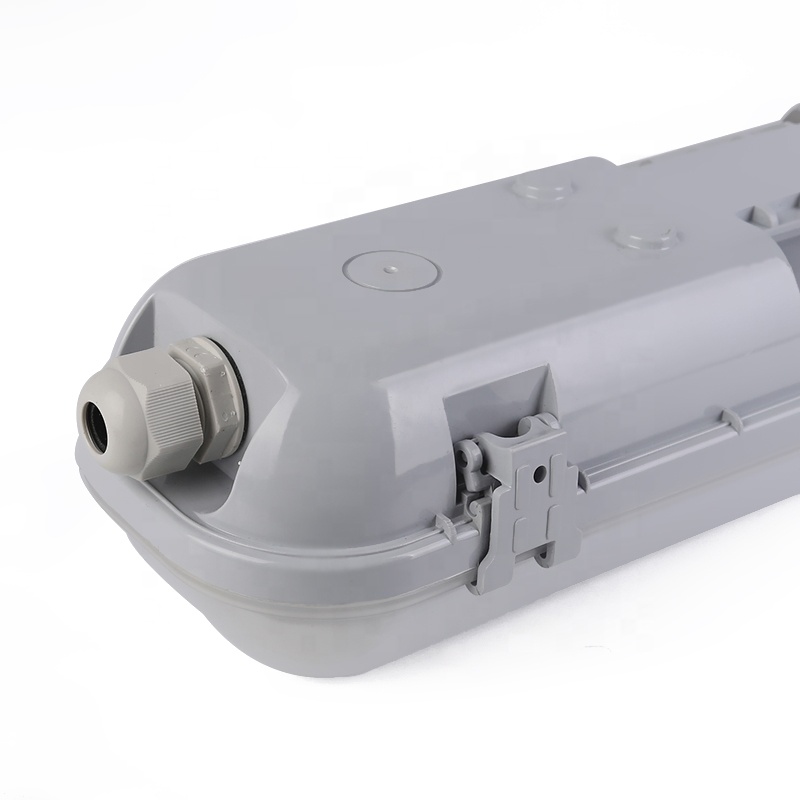

High Bright 18W Energy Saving Outdoor LED Water-Proof Tri-Proof Light
Features of the LED Water-Proof Light;
1. Unique design,CE, ROHS listed.
2. Water-proof , Dust-proof, Vapor - proof.
3. Body and diffuser meet IK08 and 850ºC glow wire test requirement
4. PC Transparent diffuser & Micky diffuser, PC & stainless steel for your option
5. Application: Parking place, Tunnel, Railway Station,Warehouse.
6. Easy and fast ceiling installation
7. Using advanced injection technologu, good overall of body, streamline structure makes light homogeneous and soft

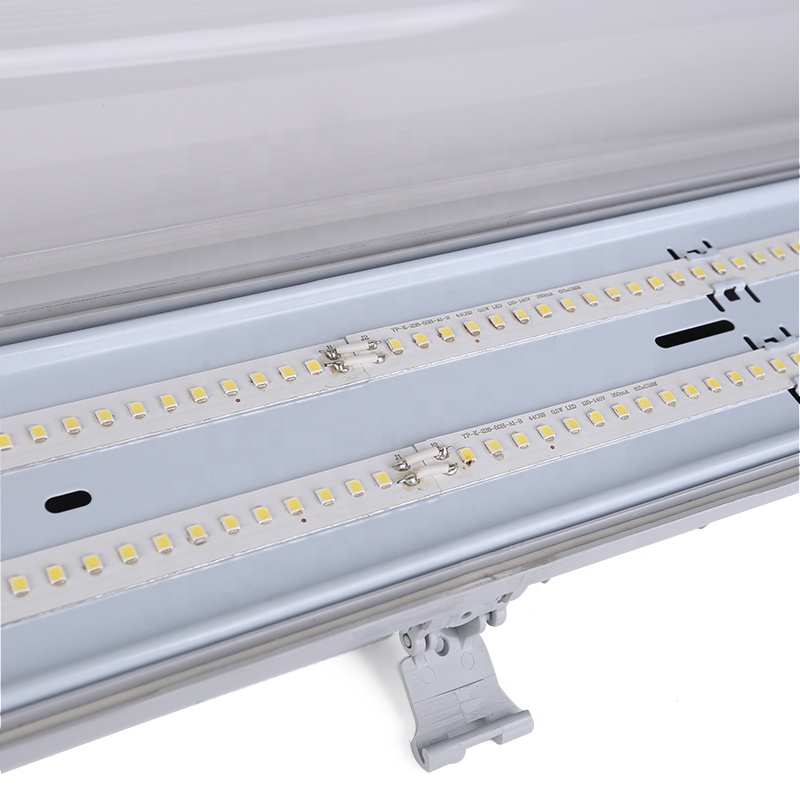

8. Using well-known brand driver and Epistar Chip 2835 led, customized power
9. Also suitable for different ballast and tube according to client"s requirements
10. External wires connection mode, no need to open cover, more convenience
2. Water-proof , Dust-proof, Vapor - proof.
3. Body and diffuser meet IK08 and 850ºC glow wire test requirement
4. PC Transparent diffuser & Micky diffuser, PC & stainless steel for your option
5. Application: Parking place, Tunnel, Railway Station,Warehouse.
6. Easy and fast ceiling installation
7. Using advanced injection technologu, good overall of body, streamline structure makes light homogeneous and soft
8. Using well-known brand driver and Epistar Chip 2835 led, customized power
9. Also suitable for different ballast and tube according to client"s requirements
10. External wires connection mode, no need to open cover, more convenience
LED Water-Proof Light Specification;
| Watt | LED Qty | Lumen | Light Effect | Dimensions(L*w*H*LF) | Qty/ctn | Outside carton size |
| 18W | 96pcs | 1700LM | 90-100LM/W | 675*70*80*410mm | 12pcs | 690*240*355mm |
| 36W | 192pcs | 3400LM | 90-100LM/W | 1275*70*80*900mm | 9pcs | 1290*240*270mm |
| 50W | 256pcs | 4700LM | 90-100LM/W | 1575*70*80*1200mm | 9pcs | 1590*240*270mm |
| 18W | 150pcs | 2350LM | 130-140LM/W | 675*70*80*410mm | 12pcs | 690*240*355mm |
| 36W | 280pcs | 4700LM | 130-140LM/W | 1275*70*80*900mm | 9pcs | 1290*240*270mm |
| 50W | 384pcs | 6500LM | 130-140LM/W | 1575*70*80*1200mm | 9pcs | 1590*240*270mm |
| Watt | LED Qty | Lumen | Light Effect | Dimensions(L*w*H*LF) | Qty/ctn | Outside carton size |
| 25W | 128pcs | 2350LM | 90-100LM/W | 675*100*80*410mm | 8pcs | 690*225*355mm |
| 50W | 256pcs | 4700LM | 90-100LM/W | 1275*100*80*900mm | 6pcs | 1290*225*270mm |
| 60W | 318pcs | 5700LM | 90-100LM/W | 1575*95*77*1100mm | 6pcs | 1590*225*270mm |
| 25W | 192pcs | 3250LM | 130-140LM/W | 675*100*80*410mm | 8pcs | 690*225*355mm |
| 50W | 384pcs | 6500LM | 130-140LM/W | 1275*100*80*900mm | 6pcs | 1290*225*270mm |
| 60W | 456pcs | 7800LM | 130-140LM/W | 1575*100*80*1200mm | 6pcs | 1590*225*270mm |
Longlux care high quality LED Water-Proof Light and with strict production process;
LED Water-Proof Light application;
