Home > Products > IP65 waterproof 40w led panel light 60x60
IP65 waterproof 40w led panel light 60x60
Click on the image to view the original image
Product： views：4IP65 waterproof 40w led panel light 60x60
Branch： Longlux
Size： 60X60X5 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 17:35
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
85V-265V
Lamp Luminous Flux(lm):
90-130lm/W
CRI (Ra>):
80
Working Temperature(℃):
-45 - 55
Working Lifetime(Hour):
50000
Lamp Body Material:
Acrylic, Aluminium, Plastic, PMMA, Paper
IP Rating:
IP65
Certification:
CE, SAA, UL
Place of Origin:
Zhejiang, China
Brand Name:
Longlux
Model Number:
LLX-Panel IP65-6060
Application:
office
Light Source:
LED
led panel light 60x60 Shape:
square led panel light 60x60
led panel light 60x60Base Material:
Aluminum base
CRI for led panel light 60x60:
>80
LED:
SMD4014
certification:
CE, RoHS, SAA, SASO etc.
Item Type:
Panel Lights
LED Light Source:
LED
Warranty(Years):
3

Packaging & Delivery

Selling Units:
Single item
Single package size:
60X60X5 cm
Single gross weight:
3.0 kg
Package Type:
Longlux led panel light 60x60 will be packaged with high quality and firm standard export carton.And customized package can be negotiated.

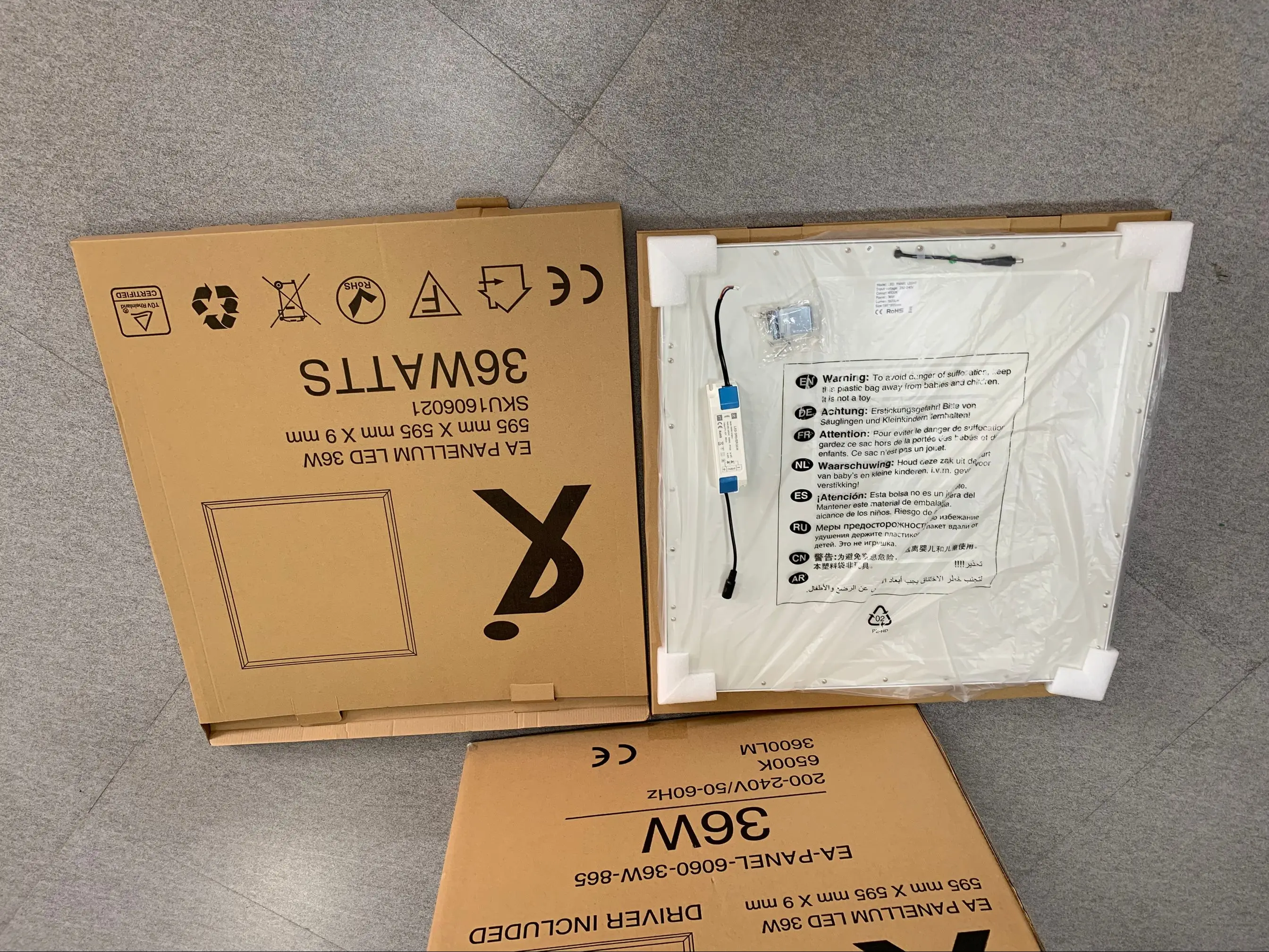

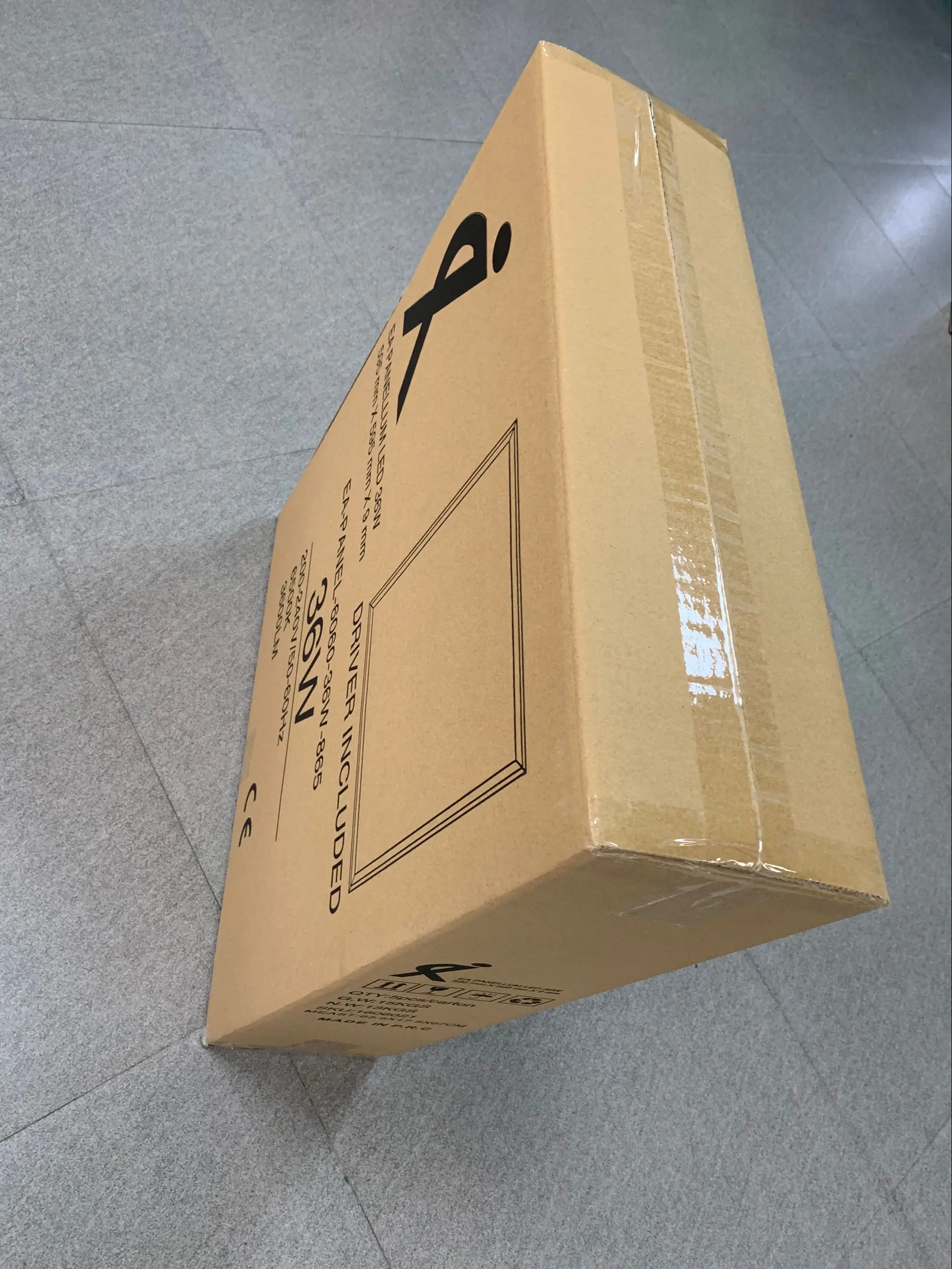

Picture Example:
package-img
package-img
Lead Time:
Quantity(Piece)1 - 500501 - 10000>10000
Est. Time(days)1530To be negotiated
Specification
led panel light 60x60 specification
Model
LLX-Panel IP65-6060
size
L=596mm, W=596mm ,H=11mm
Rated  power
40W
Rated/Actual Input
85~265Vac 50Hz
Driver Output Data
25-38Vdc / 36W
Power Factor/THD/PE
>90%/<15/88%
Lumen Output(lm)±5%
3600-4500
Life Hours L90/L80
30,000 hrs/50,000hrs
Detailed Description







                                                                     panel light led

                                                                       driver Option





led panel light 60x60

with Aluminum Frame




                                                              PMMA LGP

                                                               PC DIFFUSER

                                                                PET REFLECTOR

Model No.
LLX-Panel IP65-6060
 LLX-Panel IP65 -30120
 LLX-Panel IP65-60120
Rated Power(W)
40
40
60
Lumen Output(lm)±5%
3600-4500
3600-4500
3600-4500
Rated/Actual Input
85~265Vac  50Hz
85~265Vac  50Hz
85~265Vac  50Hz
Driver Output Data
25-38Vdc / 36W
25-38Vdc / 36W
25-38Vdc / 54W
Power Factor/THD/PE
>90%/<15/88%
>90%/<15/88%
>90%/<15/88%
Life Hours L90/L80
30,000 hrs/50,000hrs
40,000 hrs/50,000hrs
30,000 hrs/50,000hrs
Size
L=596mm W=596mm H=11mm
 L=1196mm W=296mm H=11mm
L=596mm W=1196mm H=11mm
Installation Process
Applications
Company Information
FAQ

Q1. Can I have a sample order for led panel light 60x60

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-7 days, mass production time needs 1 month for order quantity more than

Q3. Do you have any MOQ limit for led panel light 60x60 order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led panel light 60x60?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
