Overview
Quick Details
- Type:
- LED tri-proof light
- Certification:
- CE/IEC/SAA etc.
- Model Number:
- LLX-TriProof-D
- Application:
- WAREHOUSE/PARK/OUTSIDE
- waterproof lighting fitting Ik:
- 08
- lifespan:
- 50000hours for waterproof lighting fitting
- waterproof lighting fitting Lock:
- PC or Stainless Steel Clips
- IP Rating:
- IP 65
- Base Material:
- ABS/PC waterproof lighting fitting
- Cover Material:
- PC
- waterproof lighting fitting Warranty:
- 5 Years
- Cable Gland:
- PC/Brass
- Length:
- 2ft/4ft/5ft IP65
- CRI:
- 80
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 160X25X28 cm
- Single gross weight:
- 2.0 kg
- Package Type:
- Package for waterproof lighting fitting with standard and high quality firm export carton, and the customized package can be negotiate.
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 200 201 - 1000 >1000 Est. Time(days) 28 15 To be negotiated

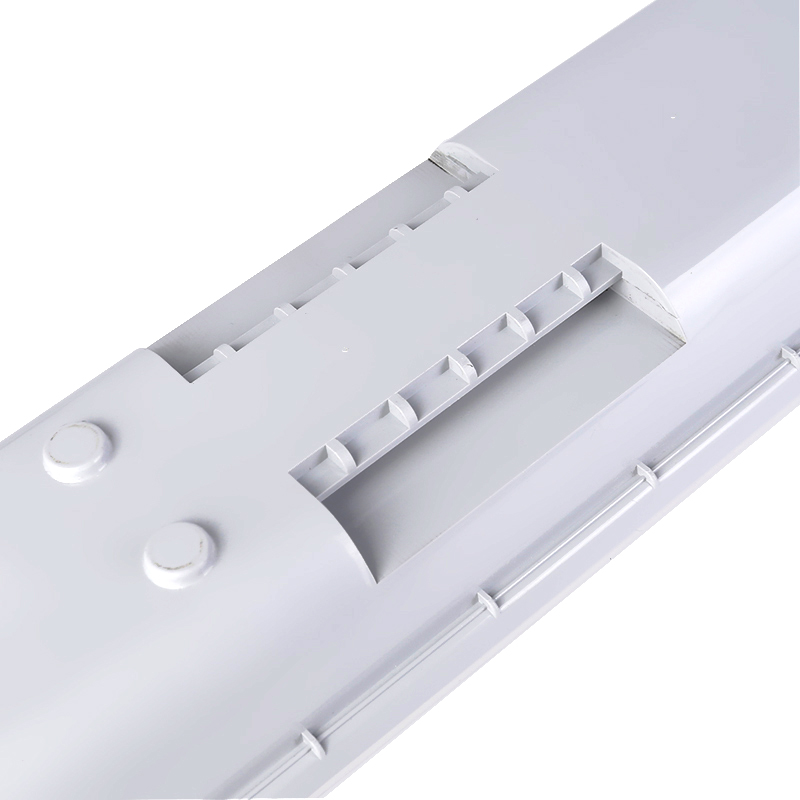

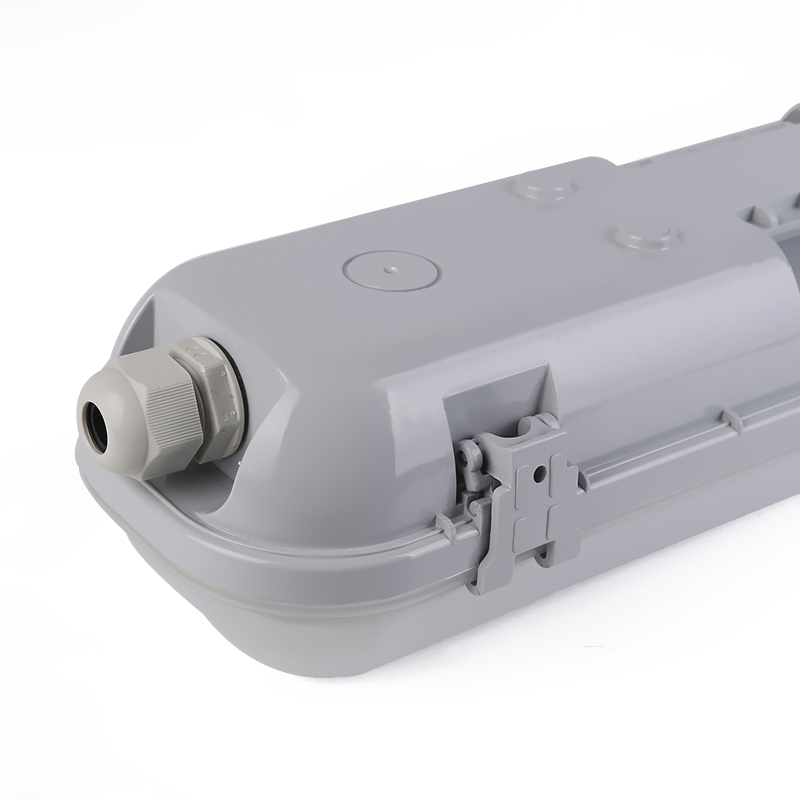

led linear tri-proof explosion proof lights waterproof lighting fittings
| Watt | LED Qty | Lumen | Light Effect | Dimensions(L*w*H*LF) | Qty/ctn | Outside carton size |
| 18W | 96pcs | 1700LM | 90-100LM/W | 675*70*80*410mm | 12pcs | 690*240*355mm |
| 36W | 192pcs | 3400LM | 90-100LM/W | 1275*70*80*900mm | 9pcs | 1290*240*270mm |
| 50W | 256pcs | 4700LM | 90-100LM/W | 1575*70*80*1200mm | 9pcs | 1590*240*270mm |
| 18W | 150pcs | 2350LM | 130-140LM/W | 675*70*80*410mm | 12pcs | 690*240*355mm |
| 36W | 280pcs | 4700LM | 130-140LM/W | 1275*70*80*900mm | 9pcs | 1290*240*270mm |
| 50W | 384pcs | 6500LM | 130-140LM/W | 1575*70*80*1200mm | 9pcs | 1590*240*270mm |
| Watt | LED Qty | Lumen | Light Effect | Dimensions(L*w*H*LF) | Qty/ctn | Outside carton size |
| 25W | 128pcs | 2350LM | 90-100LM/W | 675*100*80*410mm | 8pcs | 690*225*355mm |
| 50W | 256pcs | 4700LM | 90-100LM/W | 1275*100*80*900mm | 6pcs | 1290*225*270mm |
| 60W | 318pcs | 5700LM | 90-100LM/W | 1575*95*77*1100mm | 6pcs | 1590*225*270mm |
| 25W | 192pcs | 3250LM | 130-140LM/W | 675*100*80*410mm | 8pcs | 690*225*355mm |
| 50W | 384pcs | 6500LM | 130-140LM/W | 1275*100*80*900mm | 6pcs | 1290*225*270mm |
| 60W | 456pcs | 7800LM | 130-140LM/W | 1575*100*80*1200mm | 6pcs | 1590*225*270mm |
