Overview
Quick Details
- Input Voltage(V):
- 85V-265V
- Lamp Luminous Flux(lm):
- 80-130lm/W
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -45 - 55
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- aluminum alloy
- IP Rating:
- 20
- Certification:
- CE, SAA, UL
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Longlux
- Model Number:
- LLX-595*1195*9mm 60w
- Application:
- office
- Light Source:
- LED
- 2x4 led panel light Shape:
- square 2x4 led panel light
- Base Material:
- Aluminum base 2x4 led panel light
- CRI for 2x4 led panel light:
- >80
- LED:
- SMD4014
- certification:
- CE, RoHS, SAA, SASO etc.
- 2x4 led panel light Source:
- LED
- Warranty(Years):
- 5
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 125X61X5 cm
- Single gross weight:
- 5.8 kg
- Package Type:

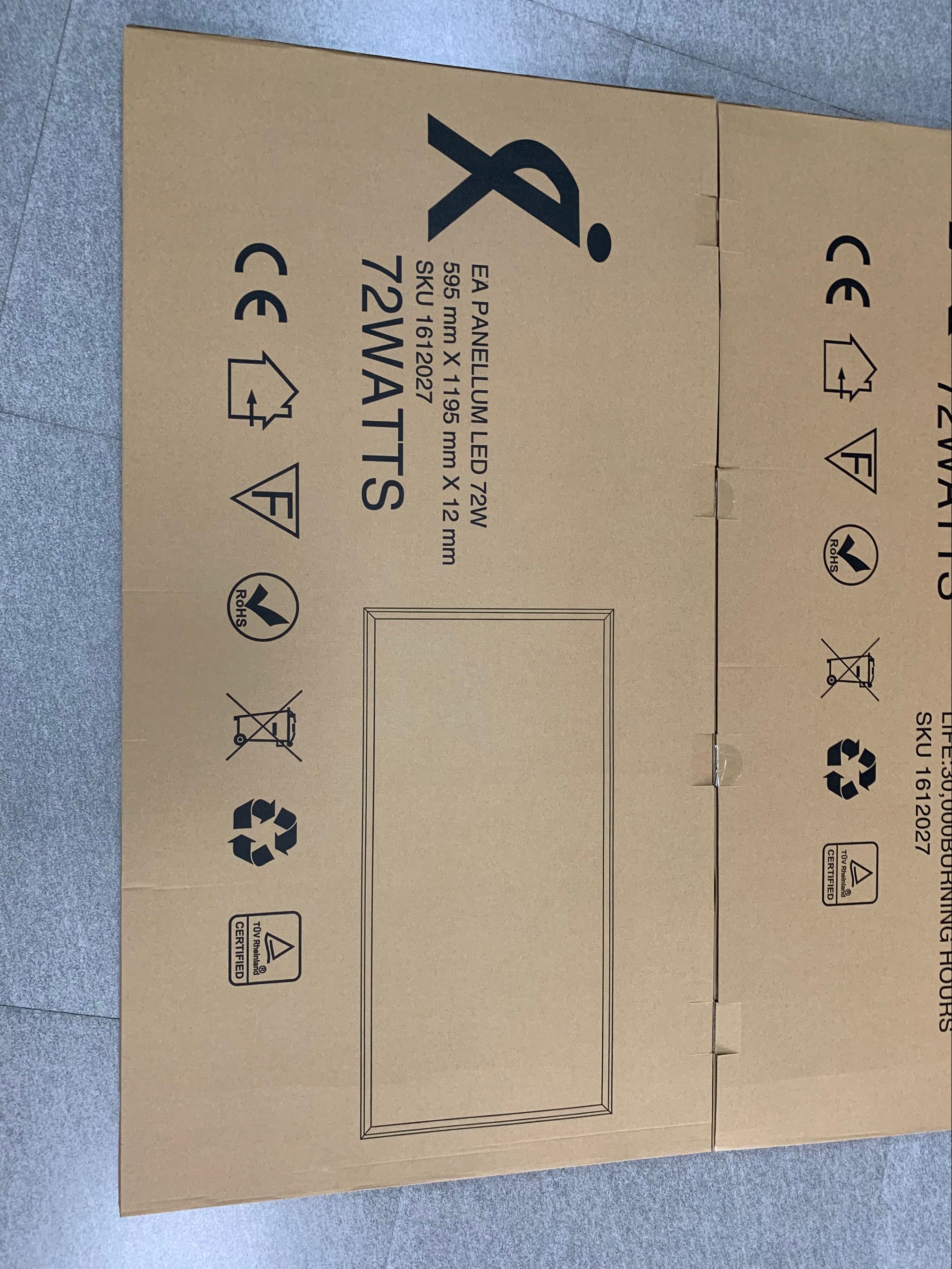

- Longluxled 2x4 led panel light will be packaged with high quality and firm standard export carton.And customized package can be negotiated.
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 15 To be negotiated
Light guide plate pmma lgp for 2x4 led panel light skd
| Item | Size | Power | Material | CRI | Lumen Efficiancy | PF | Voltage |
| LLX-595*595*9mm | 6060 | 36W | Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR | >80 | 80lm/W-130lm/W | ≥0.9 | AC220-240v |
| LLX-595*595*9mm | 6060 | 40W | Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR | >80 | 80lm/W-130lm/W | ≥0.9 | AC220-240v |
| LLX-595*595*9mm | 6060 | 48W | Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR | >80 | 80lm/W-130lm/W | ≥0.9 | AC220-240v |
| LLX-295*1195*9mm | 30120 | 36W | Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR | >80 | 80lm/W-130lm/W | ≥0.9 | AC220-240v |
| LLX-295*1195*9mm | 30120 | 40W | Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR | >80 | 80lm/W-130lm/W | ≥0.9 | AC220-240v |
| LLX-295*1195*9mm | 30120 | 48W | Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR | >80 | 80lm/W-130lm/W | ≥0.9 | AC220-240v |
| LLX-595*1195*9mm | 60120 | 60W | Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR | >80 | 80lm/W-130lm/W | ≥0.9 | AC220-240v |
| LLX-595*1195*9mm | 60120 | 72W | Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR | >80 | 80lm/W-130lm/W | ≥0.9 | AC220-240v |
