Overview
Quick Details
- Input Voltage(V):
- 85V-265V
- Lamp Luminous Flux(lm):
- 50-80lm/W
- CRI (Ra>):
- 70
- Working Temperature(℃):
- -25 - 45
- Working Lifetime(Hour):
- 20000
- Lamp Body Material:
- Acrylic, Aluminium, Plastic, PMMA
- IP Rating:
- IP44
- Certification:
- ETL, RoHS, SAA, UL
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Longlux
- Model Number:
- LED Slim Panelround 18W
- Application:
- office
- Light Source:
- LED
- micro led panel Housing:
- Aluminum+Plastic
- Voltage:
- 85-265v for micro led panel
- micro led panel Efficiancy:
- 50-80lm/W
- Flicker:
- No flicker
- Application of micro led panel:
- Residential /Commercial
- CRI:
- >70
- Sdcm:
- <6
- Installation:
- Surface Mounted
- CCT:
- Cool White, Nature White, Warm White
- Warranty(Years):
- 2
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 22X22X3 cm
- Single gross weight:
- 1.0 kg
- Package Type:
- High quality and standard firm export package cartion for micro led panel, the customized package can be negotiated.
- Lead Time:
Quantity(Piece) 1 - 10000 >10000 Est. Time(days) 15 To be negotiated

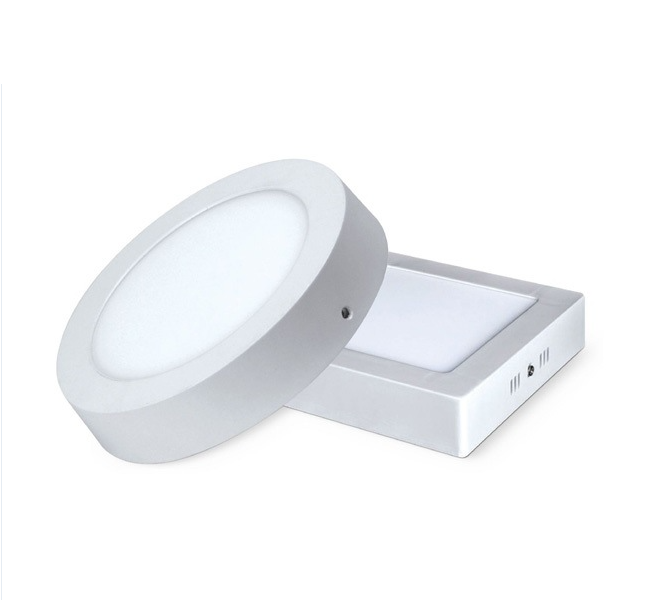

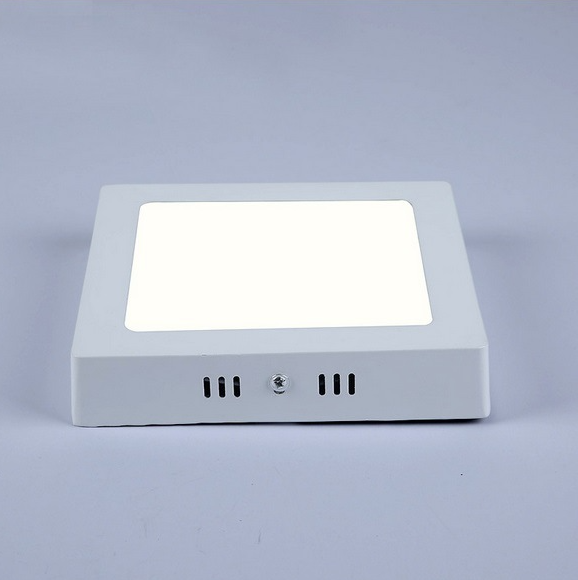

Square or Round bright led panel light 6w 18w
led panel light 24w round Feature:
1.Standard replacement for traditional grille light.
2.Ultra slim design,Aluminum+Plastic frame, elegant appearance and comfortable light
3.Optical PS LGP and optical PC fire resistant diffuser,nice and consistent lighting distribution.
4.High efficiency and super energy saving, saving 70% than fluorescent tube
5. Long lifespan,low optical decay, more than 25,000h lifespan
6. Different installation ways, flexible to use any where, Quick and easy installation to minimize retrofit costs
7.Smooth and even light.
8. Using aluminum alloy shell, with frosted poly cover, Have good heat dissipation ability and optical effects.
led panel light 24w round specification:
Item | Size | Power | Material | CRI | Lumen Efficiancy | PF | Voltage |
LED Slim Panel Round Surface 6W | 120mm | 6W | Aluminum+Plastic Frame PS LGP PC DIFFUSER PET REFLECTOR | >70 | 50-80lm/W | ≥0.9 | AC85-265v |
LED Slim Panel Round Surface 12W | 175mm | 12W | Aluminum+Plastic Frame PS LGP PC DIFFUSER PET REFLECTOR | >70 | 50-80lm/W | ≥0.9 | AC85-265v |
LED Slim Panel Round Surface 18W | 225mm | 18W | Aluminum+Plastic Frame PS LGP PC DIFFUSER PET REFLECTOR | >70 | 50-80lm/W | ≥0.9 | AC85-265v |
LED Slim Panel Round Surface 24W | 300mm | 24W | Aluminum+Plastic Frame PS LGP PC DIFFUSER PET REFLECTOR | >70 | 50-80lm/W | ≥0.9 | AC85-265v |
LED Slim Panel Square Surface 6W | 120mm | 6W | Aluminum+Plastic Frame PS LGP PC DIFFUSER PET REFLECTOR | >70 | 50-80lm/W | ≥0.9 | AC85-265v |
LED Slim Panel Square Surface 12W | 175mm | 12W | Aluminum+Plastic Frame PS LGP PC DIFFUSER PET REFLECTOR | >70 | 50-80lm/W | ≥0.9 | AC85-265v |
LED Slim Panel Square Surface 18W | 225mm | 18W | Aluminum+Plastic Frame PS LGP PC DIFFUSER PET REFLECTOR | >70 | 50-80lm/W | ≥0.9 | AC85-265v |
LED Slim Panel Square Surface 24W | 300mm | 24W | Aluminum+Plastic Frame PS LGP PC DIFFUSER PET REFLECTOR | >70 | 50-80lm/W | ≥0.9 | AC85-265v |
