Home > Products > linkable led linear light ip65 recessed

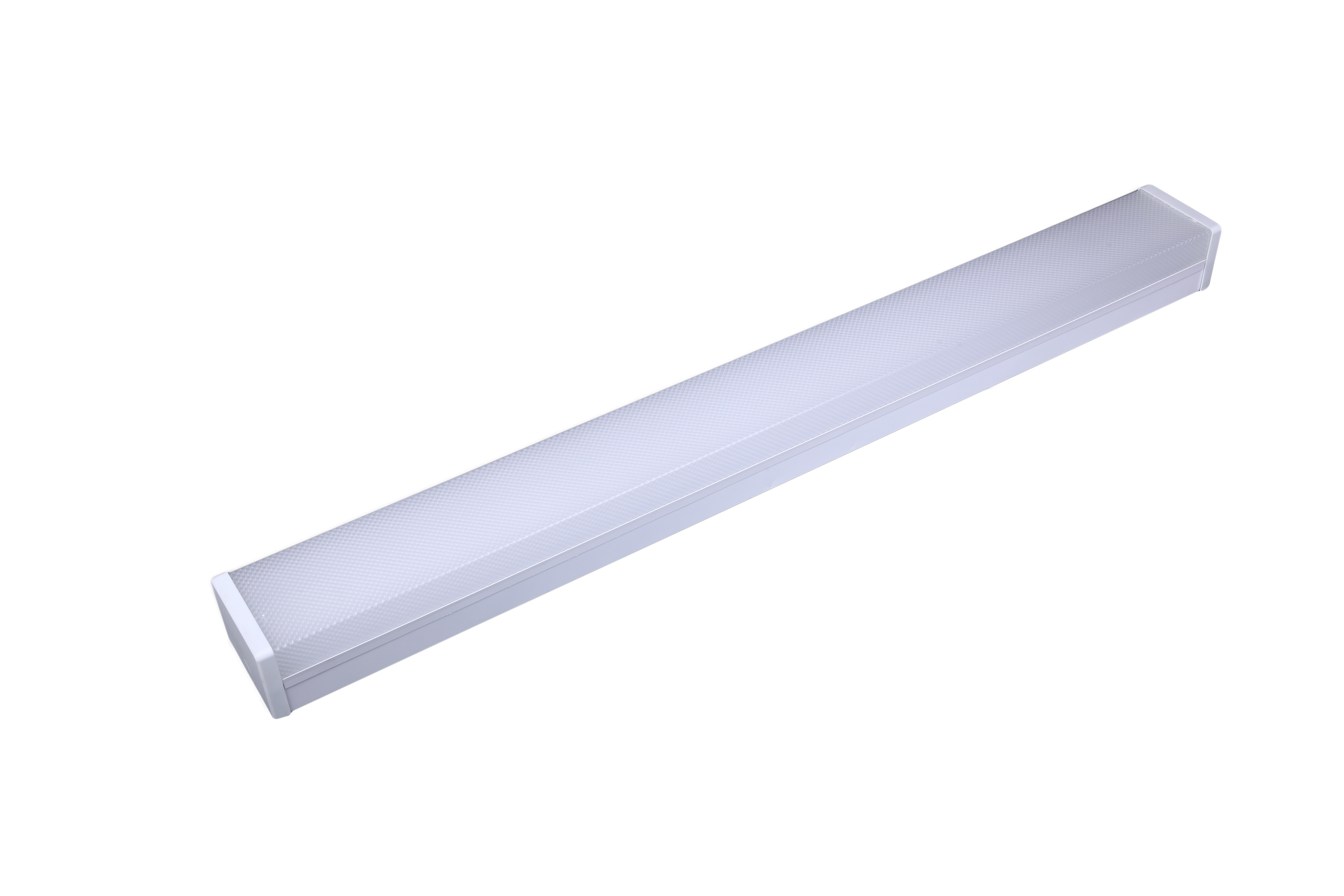

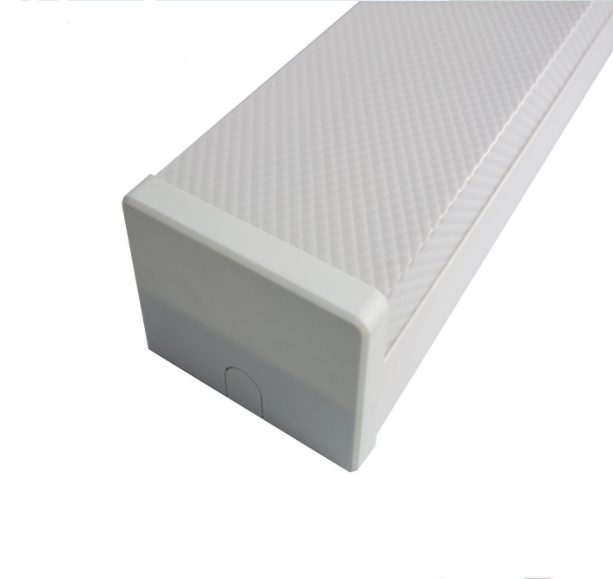

linkable led linear light ip65 recessed
Click on the image to view the original image
Product： views：4linkable led linear light ip65 recessed
Branch： Longlux
Type： Contemporary
Size： 180X8X9 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 17:35
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Longlux
Model Number:
LLX-LL-P
Material:
cover PC(Polycarbonate) or PMMA(Acrylic)
Type:
Contemporary
Light Source:
LED
Number of Lights:
accordingly on model and requirements
Lamp Luminous Flux(lm):
100-130lm/W
Working Lifetime(Hour):
50000
Beam Angle(°):
80°
Input Voltage(V):
110-277V/220-240V
CRI (Ra>):
80
Support Dimmer:
Yes
Application:
office
led linear light ip65 Source:
LED
Item Type:
Pendant Lights
Certification:
Saa/ce/el ect.
Lamp Body Material:
PC(Polycarbonate) led linear light ip65
Source:
led
led linear light ip65 Beaming Angle:
80°
LED Chips:
Bridgelux chips for led linear light ip65
Body Thickness:
0.7mm for led linear light ip65
led linear light ip65 PF:
0.95
led linear light ip65 Power:
10W-60W

Packaging & Delivery

Selling Units:
Single item
Single package size:
180X8X9 cm
Single gross weight:
2.5 kg
Package Type:
Longlux led linear light ip65 package with high quality and standard firm export carton.The customized package can be negotiated.
Lead Time:
Quantity(Piece)1 - 100>100
Est. Time(days)15To be negotiated

linkable led linear light ip65 recessed

More details for Longlux led linear light;



Longlux led linear light Features;

High Efficiency and more energy saving up to 70% than normal fluorescent lamp
SMT LEDs, easy to install, 50,000 hrs life span
Safe and healthy to eye
Environmental-friendly: Lead (Pb) free-RoHS compliant
High quality DC driver, no flickering with soft light
Size:Narrow
Housing: Coated Steel + Polycarbonate/Acrylic
Installation:Pendant or Wall Mounted

led linear light Specifications;

Housing: Coated Steel + Polycarbonate
Width: Single LED strip

Model No.LLX-LL-PN-600LLX-LL-PN-1200LLX-LL-PN-1500LLX-LL-PN-1800
Voltage(V)110-277110-277110-277110-277
Rated current(A)10202528
Wattage(W)0.09/0.04A0.18/0.08A0.22/0.1A0.26/0.11A
Lumen(lm)1200220028003400
P.F.0.950.950.950.95
Ra≥80/90≥80/90≥80/90≥80/90
Lifetime(H)50000+50000+50000+50000+
Protection ClassClass 1Class 1Class 1Class 1
IP degreeIP20IP20IP20IP20
Body Size(MM)620*69*821230*69*821530*69*821795*69*82

Housing: Coated Steel + Polycarbonate
Width: Double LED strip

Model No.LLX-LL-PW-600LLX-LL-PW-1200LLX-LL-PW-1500LLX-LL-PW-1800
Voltage(V)110-277110-277110-277110-277
Rated current(A)20374656
Wattage(W)0.18/0.08A0.35/0.15A0.43/0.19A0.52/0.23A
Lumen(lm)2000400050006000
P.F.0.950.950.950.95
Ra≥80/90≥80/90≥80/90≥80/90
Lifetime(H)50000+50000+50000+50000+
Protection ClassClass 1Class 1Class 1Class 1
IP degreeIP20IP20IP20IP20
Body Size(MM)620*109*821230*109*821530*109*821795*109*82

Housing: Coated Steel + Acrylic
Width: Single LED strip

Model No.LLX-LL-AN-600LLX-LL-AN-1200LLX-LL-AN-1500LLX-LL-AN-1800
Voltage(V)110-277110-277110-277110-277
Rated current(A)10202528
Wattage(W)0.09/0.04A0.18/0.08A0.22/0.1A0.26/0.11A
Lumen(lm)1200220028003400
P.F.0.950.950.950.95
Ra≥80/90≥80/90≥80/90≥80/90
Lifetime(H)50000+50000+50000+50000+
Protection ClassClass 1Class 1Class 1Class 1
IP degreeIP20IP20IP20IP20
Body Size(MM)620*68*901230*68*901530*68*901795*68*90

Housing: Coated Steel + Acrylic
Width: Double LED strip

Model No.LLX-LL-AW-600LLX-LL-AW-1200LLX-LL-AW-1500LLX-LL-AW-1800
Voltage(V)110-277110-277110-277110-277
Rated current(A)20364556
Wattage(W)0.18/0.08A0.35/0.15A0.43/0.19A0.52/0.23A
Lumen(lm)2200440055006600
P.F.0.950.950.950.95
Ra≥80/90≥80/90≥80/90≥80/90
Lifetime(H)50000+50000+50000+50000+
Protection ClassClass 1Class 1Class 1Class 1
IP degreeIP20IP20IP20IP20
Body Size(MM)620*124*901230*124*901530*124*901795*124*90

More datas for led linear light ;

Installation instruction for led linear light ;

led linear light Application;

Longlux much more care about the high quality and strict demands for led linear light production;
