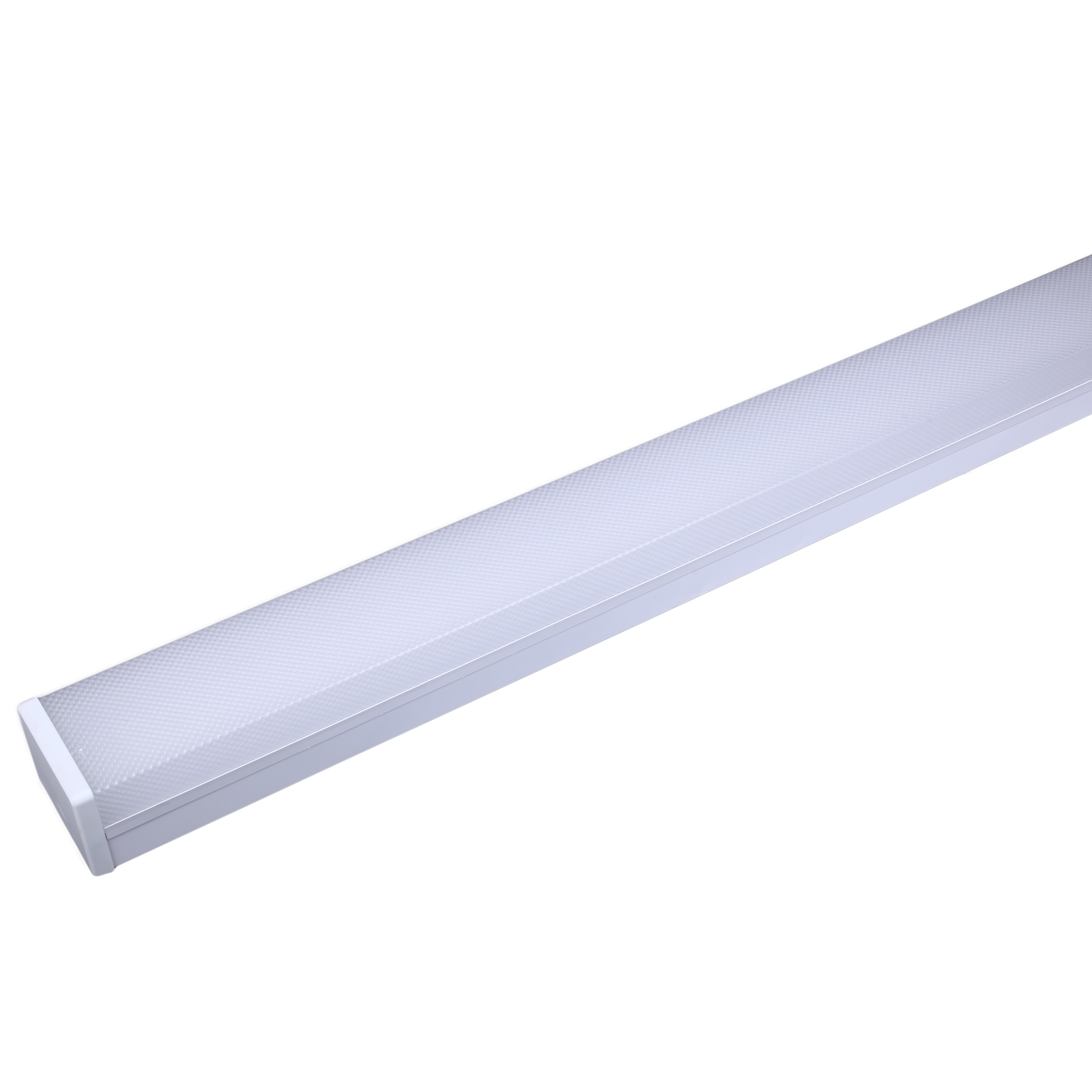

36w linear led ceiling light bar

Click on the image to view the original image

Product：	views：636w linear led ceiling light bar
Branch：	Longlux
Type：	Contemporary
Size：	180X8X9 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 17:35

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Longlux

Model Number:: LLX-LL-P

Material:: cover PC(Polycarbonate) or PMMA(Acrylic)

Type:: Contemporary

Light Source:: LED

Number of Lights:: accordingly on model and requirements

Lamp Luminous Flux(lm):: 100-130lm/W

Working Lifetime(Hour):: 50000

Beam Angle(°):: 80°

Input Voltage(V):: 110-277V/220-240V

CRI (Ra>):: 80

Support Dimmer:: Yes

Application:: office

36w led linear light Source:: LED

Item Type:: Pendant Lights

Certification:: Saa/ce/el ect.

Lamp Body Material:: PC(Polycarbonate) 36w led linear light

Source:: led

36w led linear light Beaming Angle:: 80°

LED Chips:: Bridgelux chips for 36w led linear light

Body Thickness:: 0.7mm for 36w led linear light

36w led linear light PF:: 0.95

36w led linear light Power:: 10W-60W

Packaging & Delivery

Selling Units:: Single item

Single package size:: 180X8X9 cm

Single gross weight:: 2.5 kg

Package Type:: Longlux 36w led linear light package with high quality and standard firm export carton.The customized package can be negotiated.

Lead Time:

Quantity(Piece)	1 - 100	>100
Est. Time(days)	15	To be negotiated

36w linear led ceiling light bar

More details for Longlux led linear light;

Longlux led linear light Features;

High Efficiency and more energy saving up to 70% than normal fluorescent lamp
SMT LEDs, easy to install, 50,000 hrs life span
Safe and healthy to eye
Environmental-friendly: Lead (Pb) free-RoHS compliant
High quality DC driver, no flickering with soft light
Size:Narrow
Housing: Coated Steel + Polycarbonate/Acrylic
Installation:Pendant or Wall Mounted

led linear light Specifications;

Housing: Coated Steel + Polycarbonate
Width: Single LED strip

Model No.	LLX-LL-PN-600	LLX-LL-PN-1200	LLX-LL-PN-1500	LLX-LL-PN-1800
Voltage(V)	110-277	110-277	110-277	110-277
Rated current(A)	10	20	25	28
Wattage(W)	0.09/0.04A	0.18/0.08A	0.22/0.1A	0.26/0.11A
Lumen(lm)	1200	2200	2800	3400
P.F.	0.95	0.95	0.95	0.95
Ra	≥80/90	≥80/90	≥80/90	≥80/90
Lifetime(H)	50000+	50000+	50000+	50000+
Protection Class	Class 1	Class 1	Class 1	Class 1
IP degree	IP20	IP20	IP20	IP20
Body Size(MM)	6206982	12306982	15306982	17956982

Housing: Coated Steel + Polycarbonate
Width: Double LED strip

Model No.	LLX-LL-PW-600	LLX-LL-PW-1200	LLX-LL-PW-1500	LLX-LL-PW-1800
Voltage(V)	110-277	110-277	110-277	110-277
Rated current(A)	20	37	46	56
Wattage(W)	0.18/0.08A	0.35/0.15A	0.43/0.19A	0.52/0.23A
Lumen(lm)	2000	4000	5000	6000
P.F.	0.95	0.95	0.95	0.95
Ra	≥80/90	≥80/90	≥80/90	≥80/90
Lifetime(H)	50000+	50000+	50000+	50000+
Protection Class	Class 1	Class 1	Class 1	Class 1
IP degree	IP20	IP20	IP20	IP20
Body Size(MM)	62010982	123010982	153010982	179510982

Housing: Coated Steel + Acrylic
Width: Single LED strip

Model No.	LLX-LL-AN-600	LLX-LL-AN-1200	LLX-LL-AN-1500	LLX-LL-AN-1800
Voltage(V)	110-277	110-277	110-277	110-277
Rated current(A)	10	20	25	28
Wattage(W)	0.09/0.04A	0.18/0.08A	0.22/0.1A	0.26/0.11A
Lumen(lm)	1200	2200	2800	3400
P.F.	0.95	0.95	0.95	0.95
Ra	≥80/90	≥80/90	≥80/90	≥80/90
Lifetime(H)	50000+	50000+	50000+	50000+
Protection Class	Class 1	Class 1	Class 1	Class 1
IP degree	IP20	IP20	IP20	IP20
Body Size(MM)	6206890	12306890	15306890	17956890

Housing: Coated Steel + Acrylic
Width: Double LED strip

Model No.	LLX-LL-AW-600	LLX-LL-AW-1200	LLX-LL-AW-1500	LLX-LL-AW-1800
Voltage(V)	110-277	110-277	110-277	110-277
Rated current(A)	20	36	45	56
Wattage(W)	0.18/0.08A	0.35/0.15A	0.43/0.19A	0.52/0.23A
Lumen(lm)	2200	4400	5500	6600
P.F.	0.95	0.95	0.95	0.95
Ra	≥80/90	≥80/90	≥80/90	≥80/90
Lifetime(H)	50000+	50000+	50000+	50000+
Protection Class	Class 1	Class 1	Class 1	Class 1
IP degree	IP20	IP20	IP20	IP20
Body Size(MM)	62012490	123012490	153012490	179512490

More datas for led linear light ;

Installation instruction for led linear light ;

led linear light Application;

Longlux much more care about the high quality and strict demands for led linear light production;
