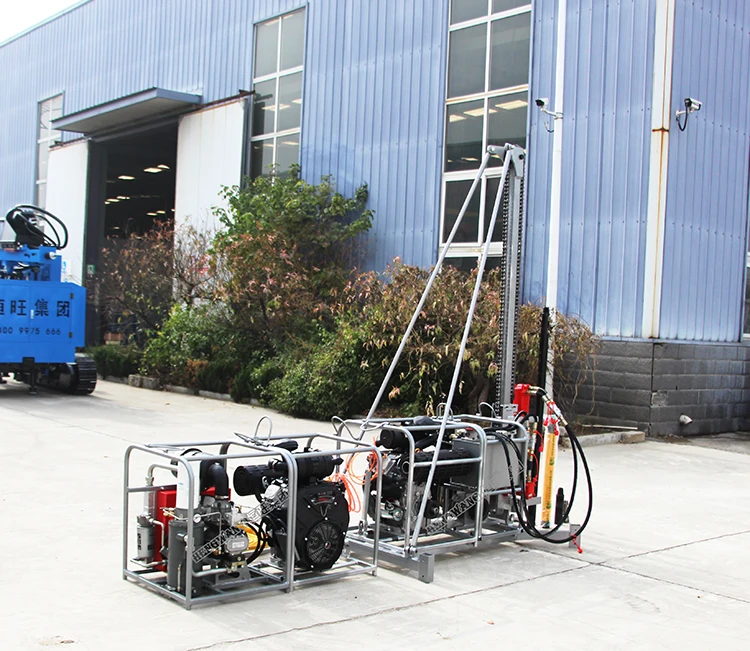

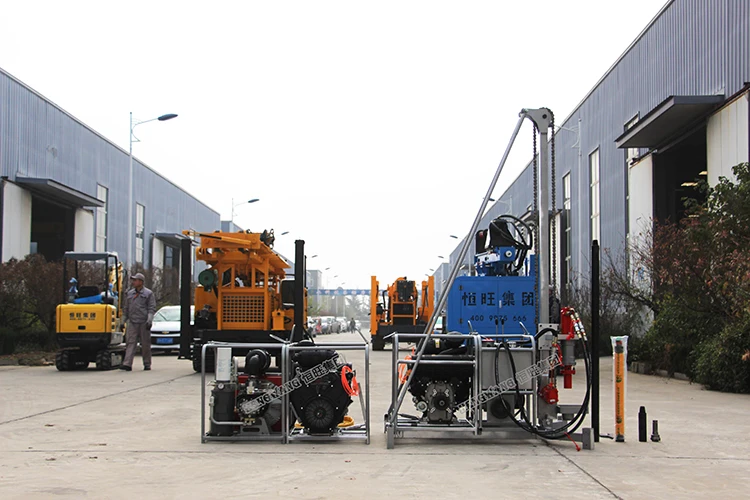

HW-S30 Hydraulic mountain drill rig is a series of products developed by the company with independent intellectual property rights.
Mountain drilling rig are widely used in oil drilling exploration, geological exploration, small and medium-sized mines and transportation, defense, rock Drilling and blasting hole in water Conservancy engineering, etc.
MAIN FEATURES:
1Designed in strict accordance with the requirements of general industrial design standards, Product Parts, Module unit versatility, interchangeable .
2. Adopt full hydraulic working mode and buckle type adjustment device, So the structure is simple, easy to operate.
3. Variable pump used in Hydraulic station, So that the entire hydraulic system optimization, with energy-saving, small, low-cost functions.
4. The hydraulic quick lift drill pipe design eliminates the derrick, hoist and gearbox, which makes the operation simpler and safer.
1, high drilling efficiency, making operation costs reduced;
2, simple structure, easy dismantling and maintenance;
3, the operation is more humane
4, the overall light weight, and for the split structure, easy to move and transport.
simple operate mini water well rig rock drilling machine for sale
Model | HW-S30 | ||
Drilling depth | 30m | ||
Drilling method | pneumatic hammer drilling | ||
Screwdrilling and mud drilling(alternative) | |||
Drilling diameter | pneumatic hammer drilling | rock70-90,soil75-95 | |
75-90 | |||
drill rod(Dia*Length) | (mm) pneumatic hammer drilling | Φ60×1500 | |
Power head | (N.m)Torque | 800-900 | |
(r/min)Drilling speed | 0-135 | ||
Drilling pressurization and lifting | (N) Feed pressure | 5500-6000 | |
(kN)Lifting power | 12-16 | ||
(m/s)Max lifting speed | 0.71-0.81 | ||
(kw)/(r/min)Main engine power/speed | 26/3600 | ||
hydraulic system | (L/min) Flow | 0-60 | |
(Mpa)Working pressure | 20 | ||

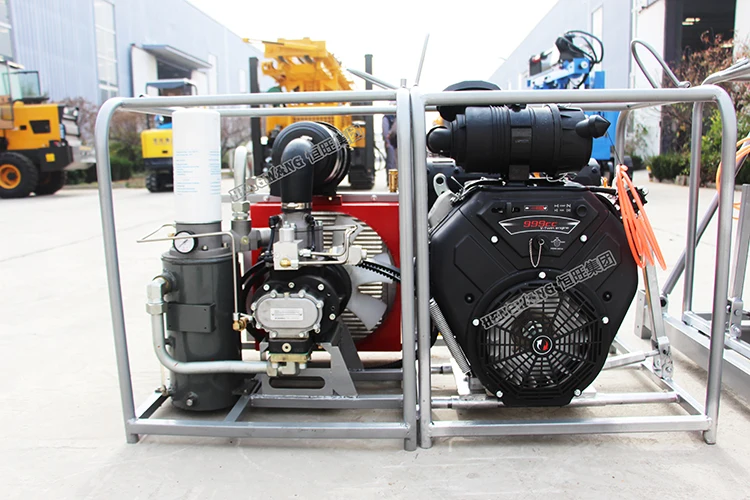

air compressor | Type/Quantity | Piston/1 unit | Screw |
(m3/min)Flow | 3.5 | 3.8 | |
(Mpa)Pressure | 0.8 | ||
(kw)/(r/min) Engine power/speed | 26/3600 | ||
