Electric/gasoline tamping rammer,Honda engine rammer,soil tamping rammer/rammer compactor

Click on the image to view the original image

Product：	views：3Electric/gasoline tamping rammer,Honda engine rammer,soil tamping rammer/rammer compactor
Branch：	LH
Size：	100X60X80 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:41

Product Details

Overview

Quick Details

Warranty:: 1 Year

Power(W):: 6.5HP

Weight:: 90kg

After-sales Service Provided:: Video technical support

Certification:: ISO

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: LH

Voltage:: 220V/380V

Dimension(L*W*H):: 430*760*1020mm

Name:: HONDA GX160 Engine Rammer

Engine:: Honda GX160 5.5HP

Engine type:: Honda

Usage:: Soil

Height:: 40-70mm

Forward speed:: 10-13m/min

Impact ability:: 9-11Kn

Plate size:: 300*280mm

Impact times:: 600-700times/min

Size:: 620*520*1100mm

Packaging & Delivery

Selling Units:: Single item

Single package size:: 100X60X80 cm

Single gross weight:: 95.0 kg

Lead Time:

Quantity(Set)	1 - 20	>20
Est. Time(days)	3	To be negotiated

Electric/gasoline tamping rammer,Honda engine rammer,soil tamping rammer/rammer compactor

Product Description

1- Aluminum alloy for lighter weight and better thermal diffusivity

2- 20CrMnTi alloy gears for higher intensity and higher wearing resistance

3- 65Mn steel springs for higher elasticity

4- PU bellow with higher intensity and longer durability

5- Powder metallurgy clutch for better transmissibility and higher wearing resistance

6- Forged alloy steel plate wraped with high intensity rubber for higher intensity and better shock

absorption

Technology Parameter

Electric/gasoline tamping rammer,Honda engine rammer,soil tamping rammer/rammer compactor

Model	hw80	hw90	hw90A	hw110
Engine	Hongda,Lifan,Loncin	Hongda ,Lifan,Loncin	Hongda Lifan Loncin Robin	Hongda,Lifan Loncin Robin
Rated Power	5.5~6.5HP
Impact Force	15KN
Leap Height	45~75mm
Advancing Speed	9~12m/min
Leap Frequency	640~680times/min
Plate size	300*280mm	300*280mm	300*300mm	300*300mm
Weight	80kgs	85kgs	90kgs	110kgs

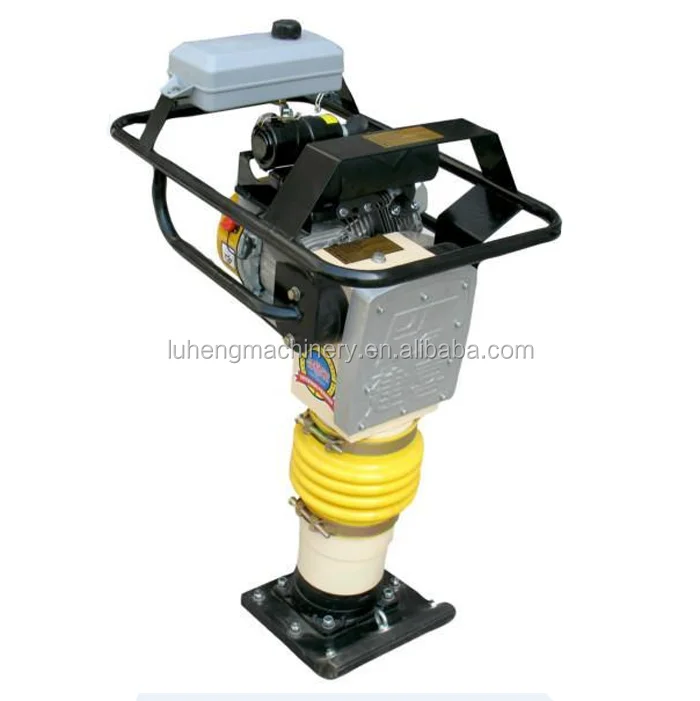

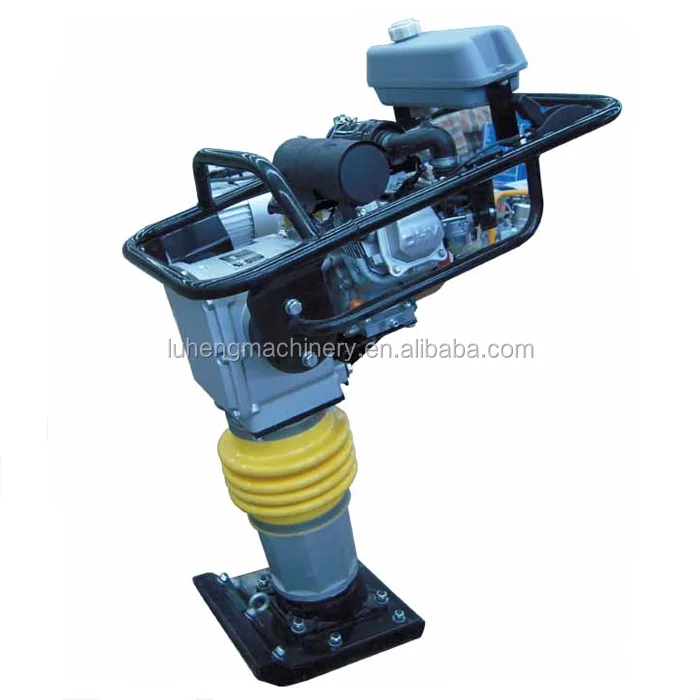

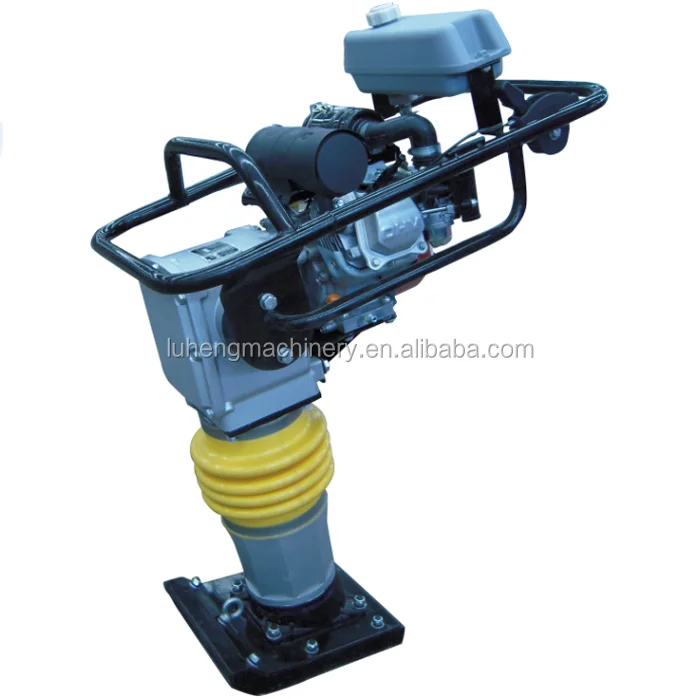

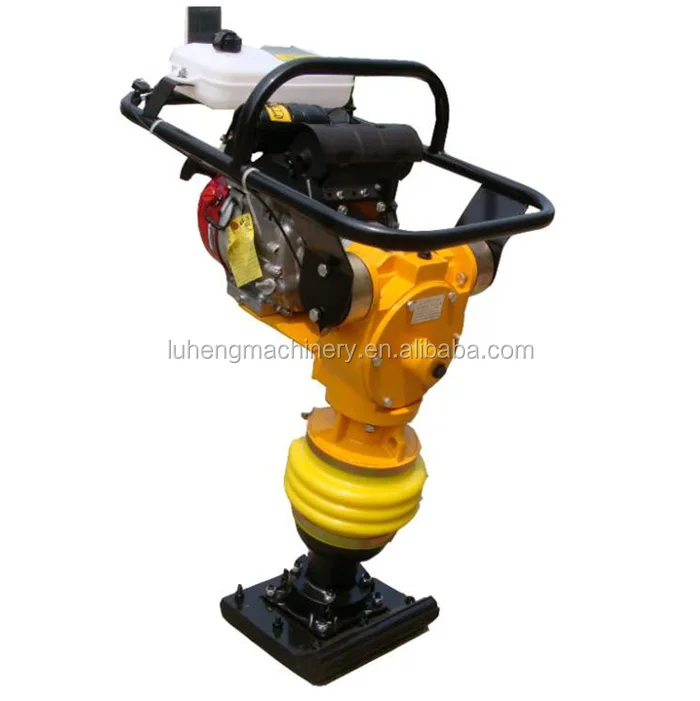

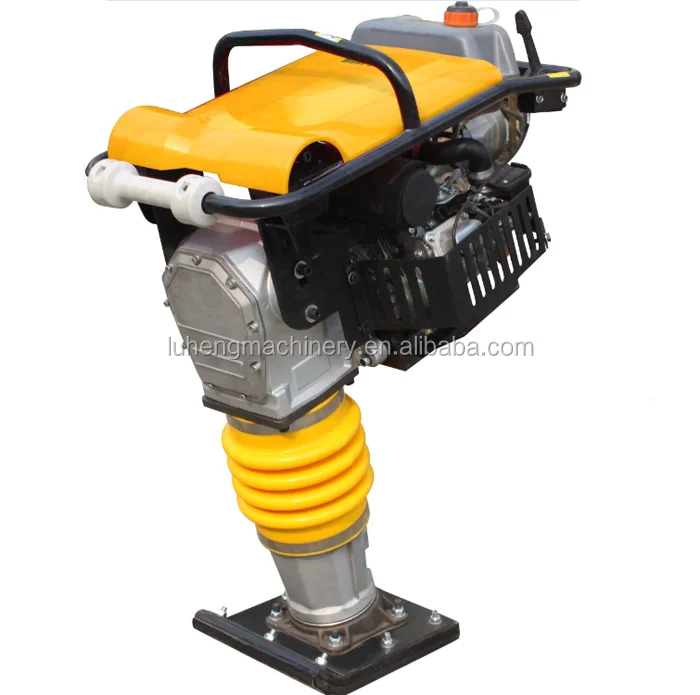

The photos
