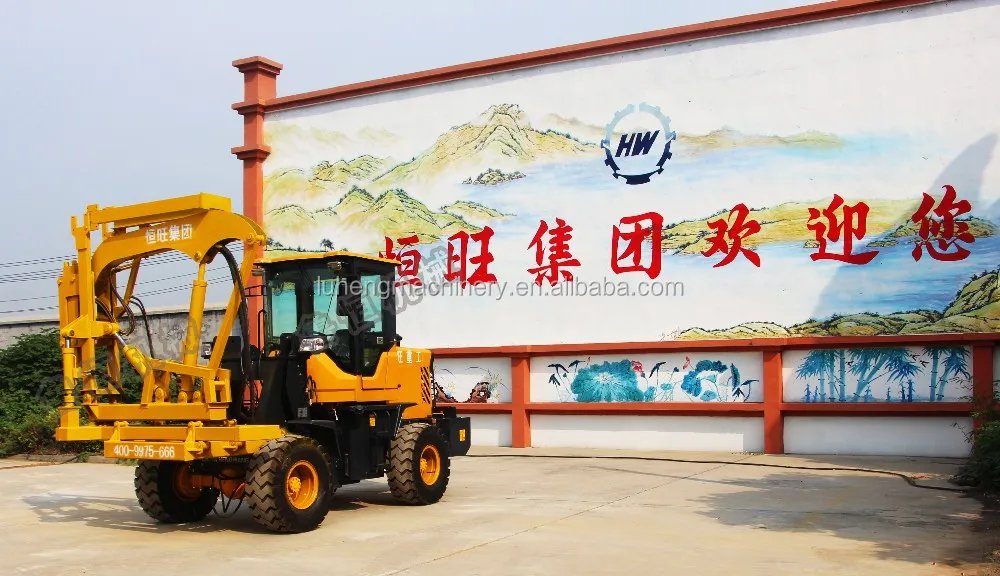

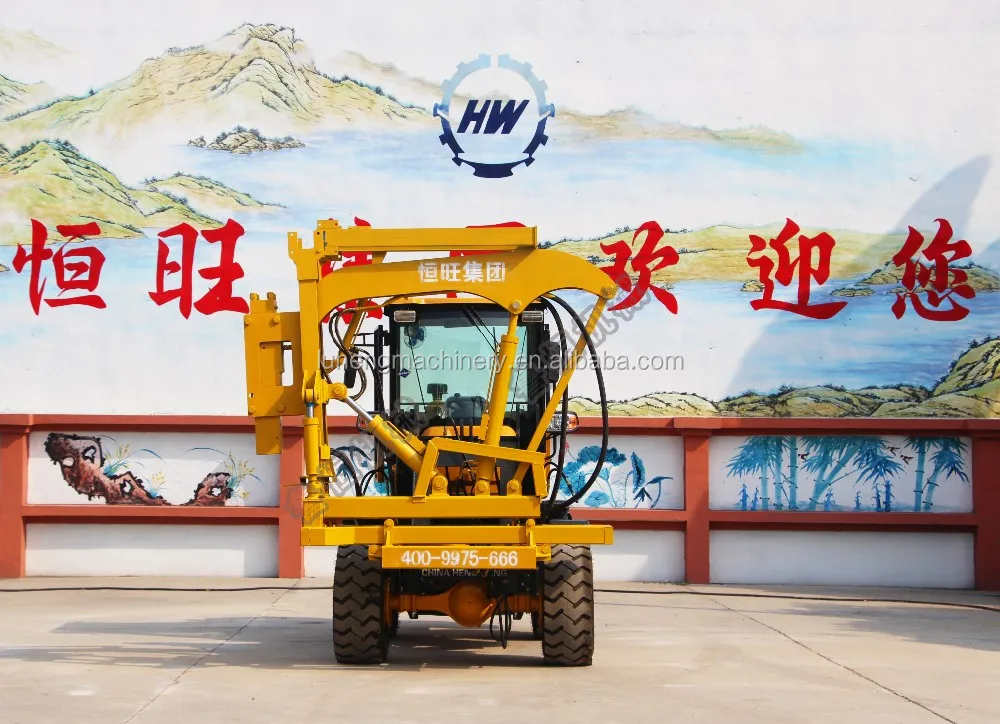

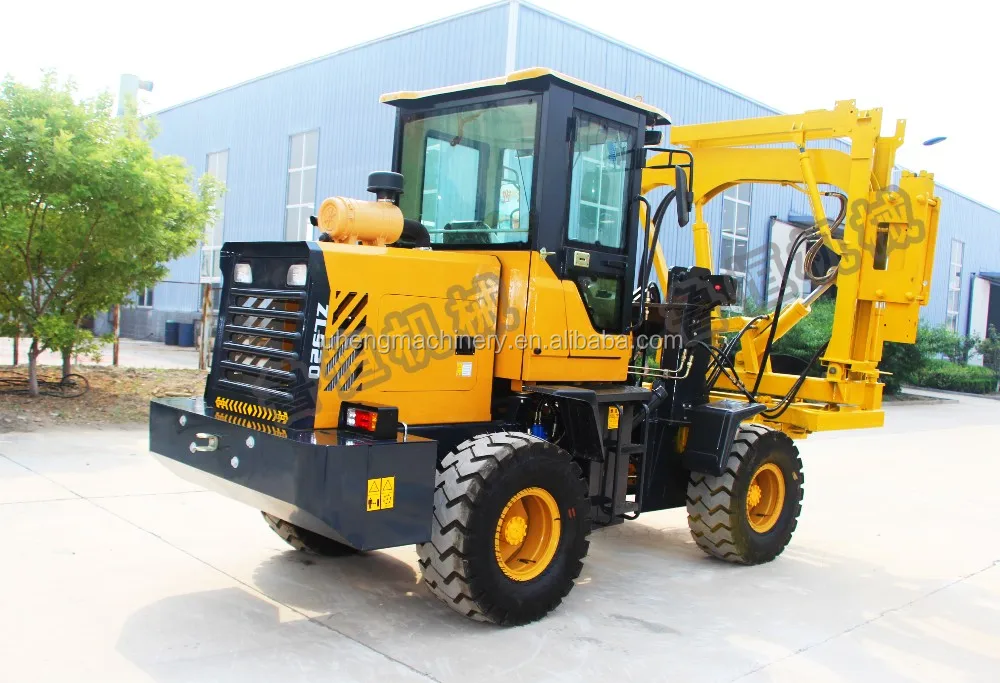

Hot Sale hydraulic Guardrail Installation Excavator Pile Driver/whatsapp:
+8613678678206
Loading guardrail pile driver highway guardrail pile driver
1, the host model: the domestic standard 20 loader.
2, construction geology: highway, railway guardrail pile driver, (plus air compressor can play rock).
3, the standard diameter: standard diameter 114-180mm, the largest aperture 200mm.
4, configuration air compressor: Recommended 8 cubic air compressor, for the duration requirements, please configure a large air compressor, powerful, fast.
5, the product advantages: four-wheel drive, turbocharged, powerful.
| Model | HZH-330C |
| Diesel power(KW) | 37 |
| Pile diameter mm | 114-220 |
| Pile length m | 2.6-3.3 |
| Hydraulic system flow(L/Min) | 80-110 |
| Rated system pressure(Mpa) | 15 |
| wheel track (M) | 1620 |
| wheel base(M) | 2070 |
| Dimension(L*W*H) | 3200*2000*2900 |
| Weight(Kg) | 4000 |
| Pile hydraulic hammer weight((Kg) | 80 |
| Hydraulic hammer frequency(Bpm) | 500-900 |
| Hydraulic hammer working flow(L/min) | 40-70 |
| Hydraulic hammer working pressure(Mpa) | 11-14 |
| Drill power unit weight(Kg) | 60 |
