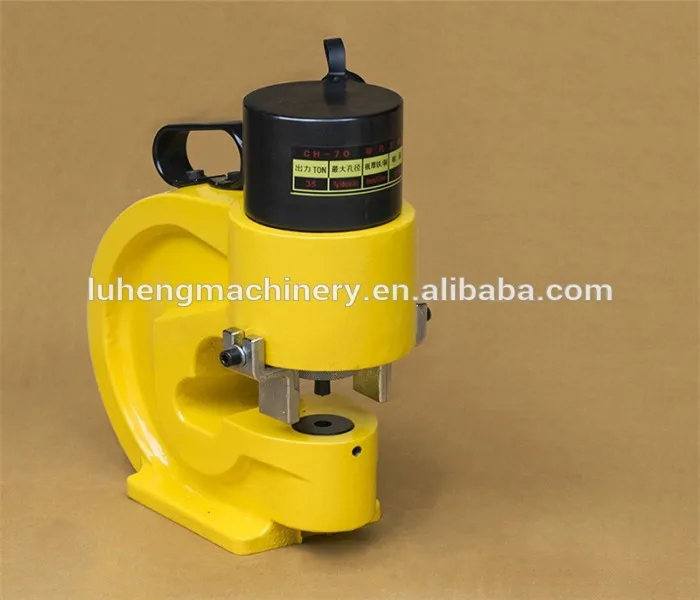

Steel punching machine / hydraulic bus bar puncher for steel copper aluminum
Click on the image to view the original image
Product： views：3Steel punching machine / hydraulic bus bar puncher for steel copper aluminum
Branch： LH
Type： Hydraulic Wrenches
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:41
  Negotiated
Product Details
Overview
Quick Details
name::
hydraulic hole puncher
condition::
new
Application::
Power Construction
2 Punching force::
35T
Max thickness of sheet::
10mm
Depth of throat::
95mm
Punching force::
31KN
Bore Diameter::
10.5 - 20.5
Color::
Can be ordered
Weight(KG)::
13.5
Place of Origin:
Shandong, China
Brand Name:
LH
Type:
Hydraulic Wrenches
Model Number:
LH
Supply Ability
Supply Ability:
10000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
wooden case
Port
QINGDAO

Steel punching machine / hydraulic bus bar puncher for steel copper aluminum

Steel punching machine / hydraulic bus bar puncher for steel copper aluminum

Product introductions

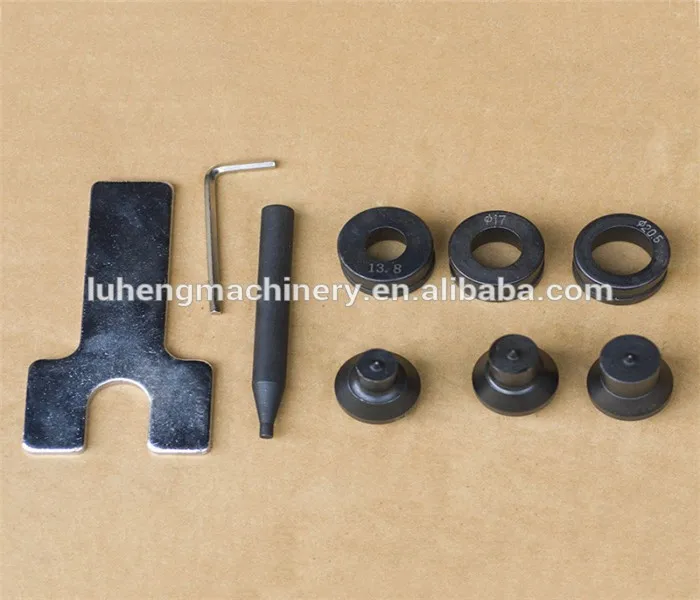

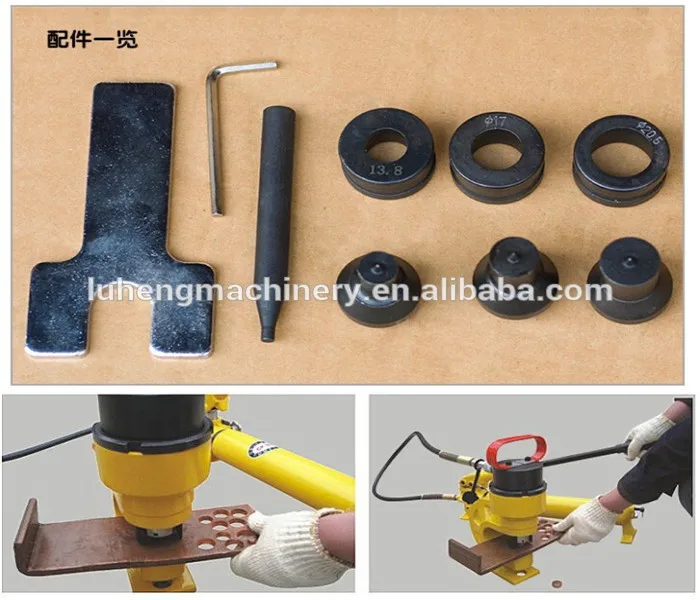

Hydraulic Punching Tools CH-80 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 8mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

 Technology Parameters

Model
CH-60
CH-70
CH-80
Output
31T
35T
50T
Thickness iron
6mm
10mm
16mm
Thickness copper
10mm
12mm
20mm
Throat Depth
95mm
110mm
115mm
Weight
19kg
38kg
50kg
Model(mm)
10.5,13.8,17.5,20.5
10.5,13.8,17.5,20.5
16,18,22,25
Size(mm)
350*245*110
370*240*150
400*260*160

The real details photo
