Home > Products > Low price Borehole Drilling Machine /water well drilling rig for Sale 200m
Low price Borehole Drilling Machine /water well drilling rig for Sale 200m
Click on the image to view the original image
Product： views：3Low price Borehole Drilling Machine /water well drilling rig for Sale 200m
Branch： LH
Type： Rotary Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:41
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
LH
Usage:
Water Well
Voltage:
220v/380v Customized
Dimension(L*W*H):
2.7*0.9*1.5m
Weight:
1150kg
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, No overseas service provided
Drilling depth:
100~300m
Drilling diameter:
75~300mm
Product name:
water well drilling rig
Borehole angel:
75~90 degree
Name:
drilling rig
Color:
Customised
Feature:
High Drilling Efficiency
Model:
HW-230
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
regular packaging
Port
Qingdao
Product Description

Product Application

1. Hydraulic-control drill mast, can be raised and put down by hydraulic cylinders,which saves time and worker labor.
2. Rubber track,the weight is lighter and does not hurt urban road, suitable for projects in city.
3. Four hydraulic jacks, can lift the machine to max.height 1.3m,so that the machine can be loaded onto and unloaded from truck compartment.Also they can be used for rig leveling and support at work.
4. 24V electric-strat diesel engine reduces the operator`s labor intensity.
5. Independent BW-160 mud pump ,has bigger flow displacement and pressure, easy maintenance.
6. Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.

SPECIFICATIONS FOR  HW-230 TRUCK WATER WELL DRILLING MACHINE
Drilling machine
Drill depth（m）
230
Drill diameter（mm）
325
Drill angle（°）
75
Spindle speed（r/min）
64/128/287/557
Spindle stroke（mm）
450
Lift capacity（Single rope）（Kg）
1600
Lift speed（r/s）
17、35、75、151
Rope diameter(mm）
12.5
Height（mm）
7000
Derrick effective height（mm）
6500
Main drill pipe(mm)
59*53
Drill pipe（mm）
42、50、60
Weigh（kg）
3000
Motor
Model ：ZS1115 diesel engine Power:14.7kw/2200rpm
BW-160 mud pipe
Rated flow（L/min）
160
Rated pressure（Mpa）
1.3
Power（kw)
5.15
Weight（kg）
190
Size（mm）
1110*725*965
Truck
model
Shifeng 7YP-1475D1
Driven type
rear-guard
Engine
Model
ZS1115E2
Rated power(KW)
16.2
Speed(r/min)
2200
Certifications

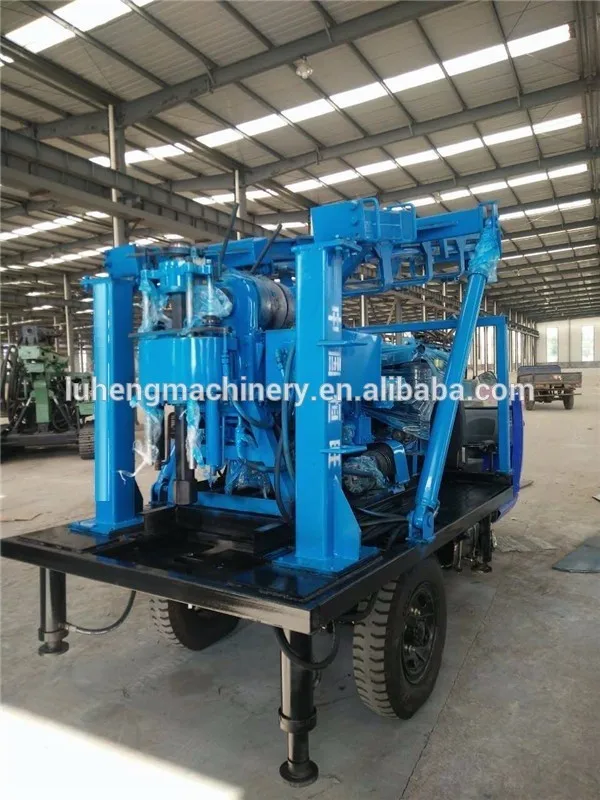

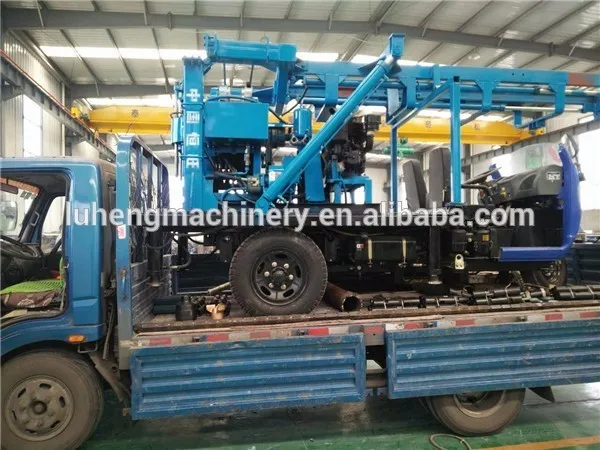

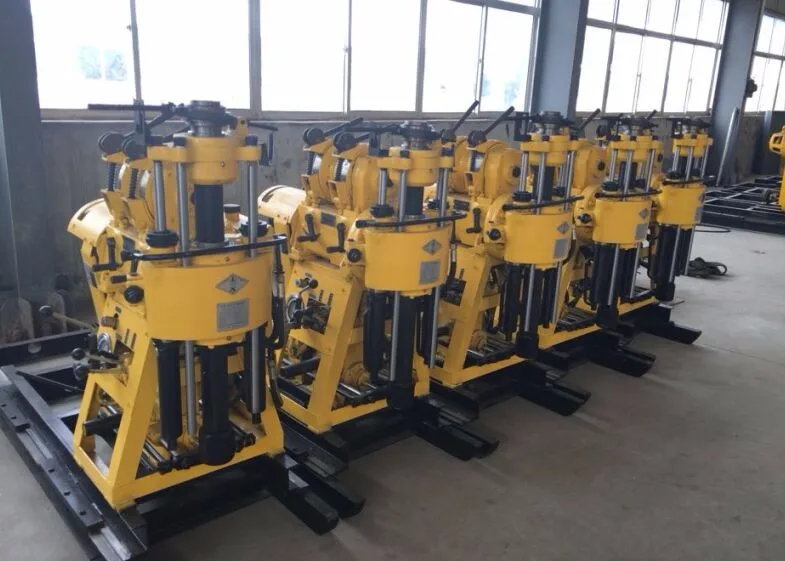

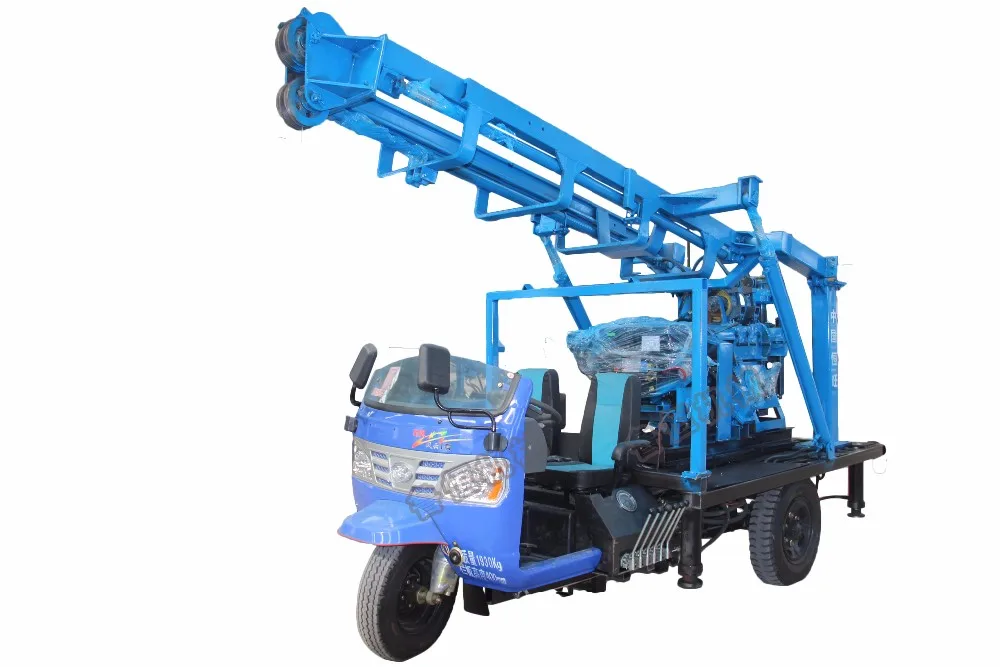

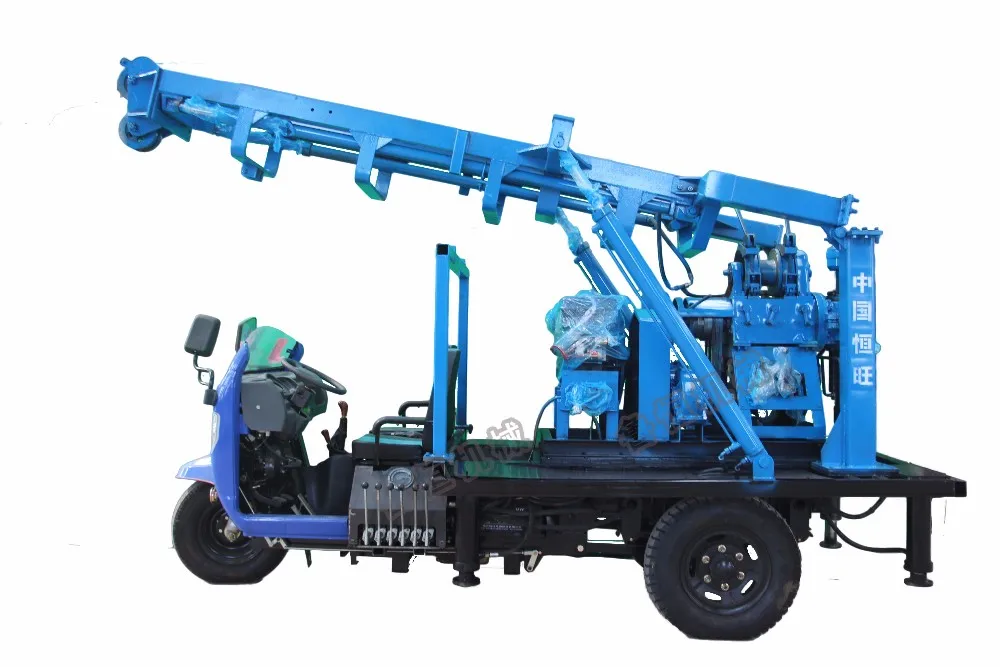

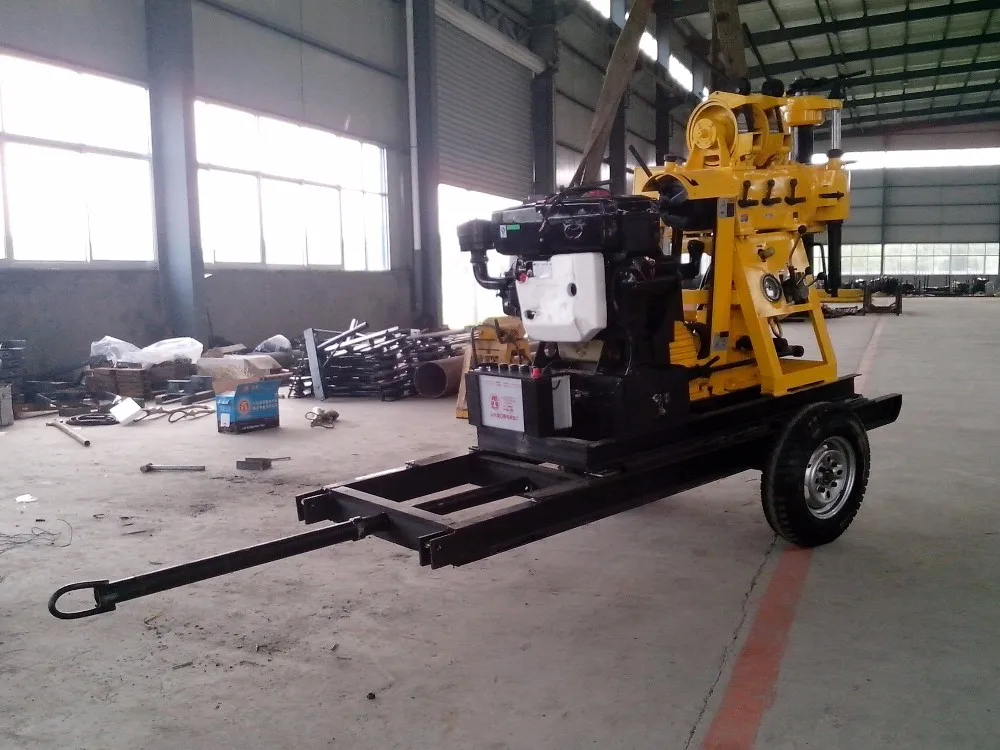

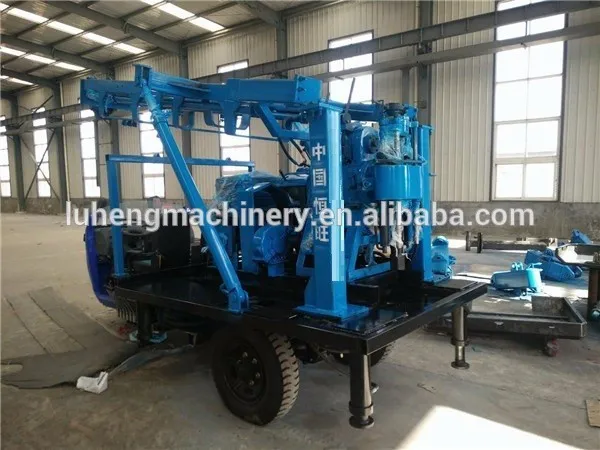

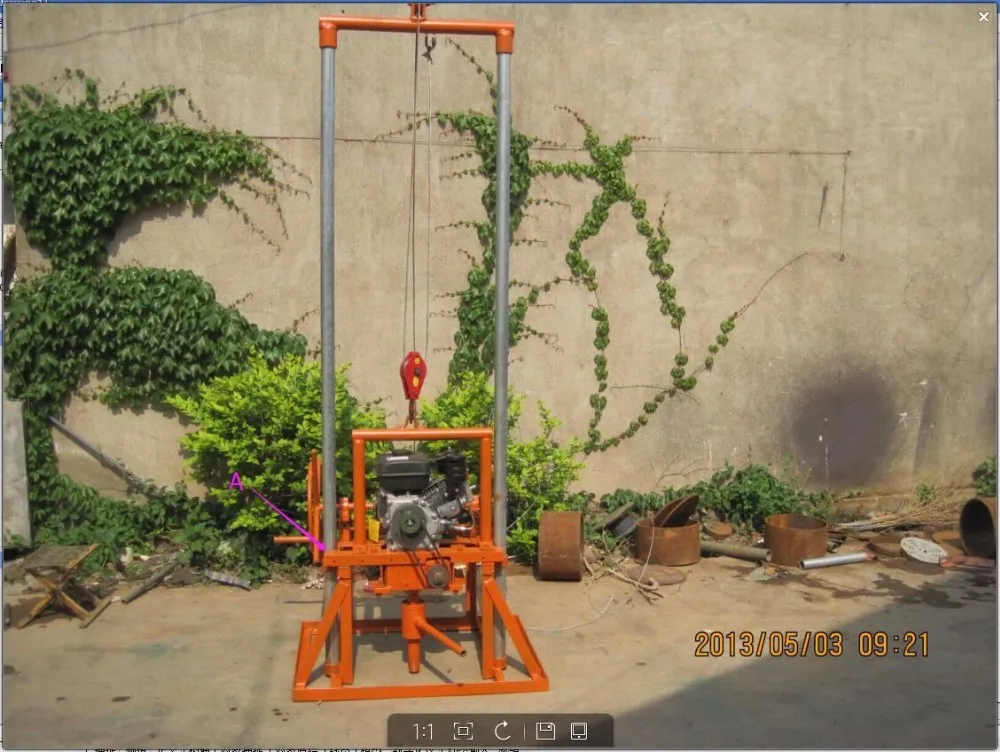

Detailed Images

Machine Parts

Drill pipe

Drill bit

Main Features

Hydraulic-control drill mast, can be raised and put down by hydraulic cylinders,which saves time and worker labor.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.




Packing & Delivery
Packaging
Packaging
Plain packaging
