Automatic drawing wall spray plastering machine /Coagulation wall rendering mortar machine
Automatic drawing wall spray plastering machine /Coagulation wall rendering mortar machine
Product Instruction
Application:
Mainly used in the construction, plastering for indoor wall of residential building,office building, ground hardening etc. .
Applicable wall: concrete wall, brick wall, cavity wall, light brick wall, baking-free brick wall, etc. Applicable concrete material:sand-lime, stone powder, cement powder, Foamed cement mortar, premixed dry mortar, gypsum, etc.
The machine can be used in the thickness of the plaster between 3cm to 5cm.
Technology Parameters
Wall plastering machine | |||
Model | LH-01 | LH-02 | LH-03 |
Plastering Speed | 500sqm/8H | 500sqm/8H | 500sqm/8H |
Size | 1300*650*500mm | 1150*850*520mm | 720*830*680mm |
Plastering Height | 5m | 4m | 3.5m |
Voltage | 220v | 220v | 220v |
Power | 2.2kw | 2.2kw | 2.2kw |
Plastering thickness | 2-30mm | 2-30mm | 2-30mm |
Weight of the host | 196KG | 188KG | 140KG |
Work efficiency | 500sqm/8h | 500sqm/8h | 500sqm/8h |
other | machine with the plastering width ranging from0.6-1.5m can be customized at your request | ||

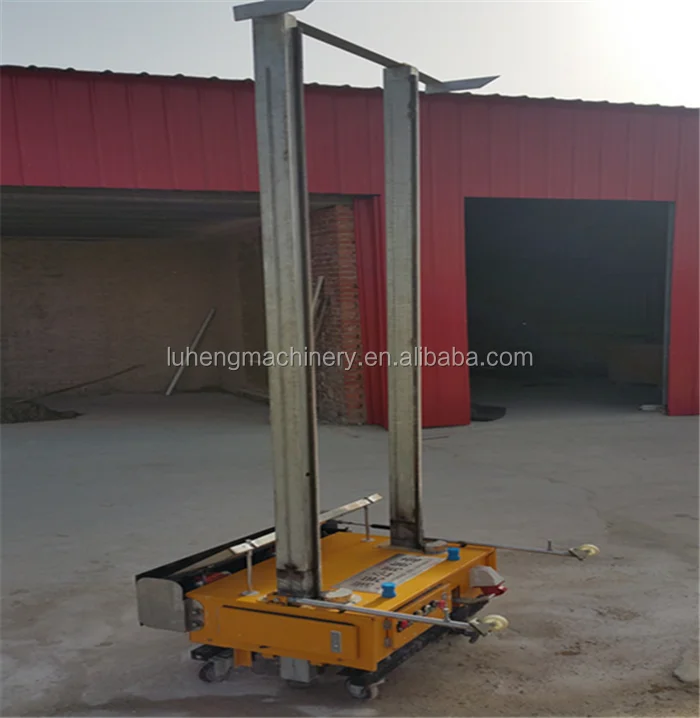

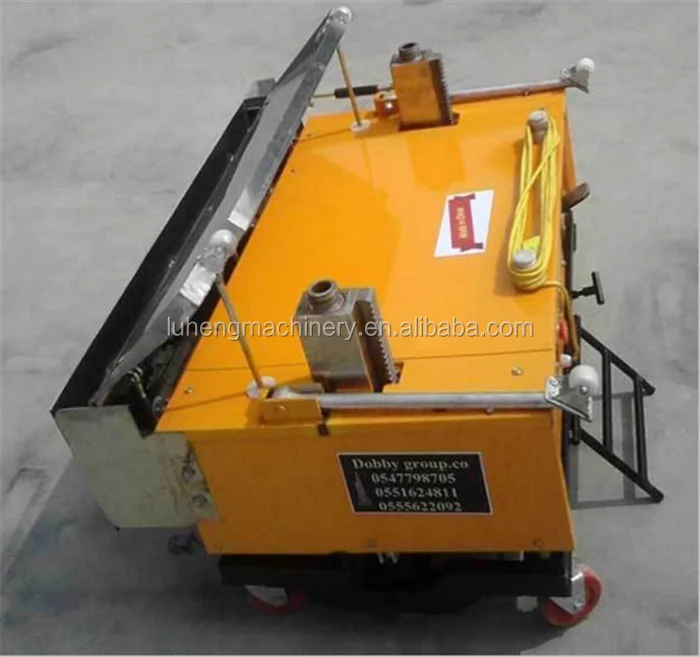

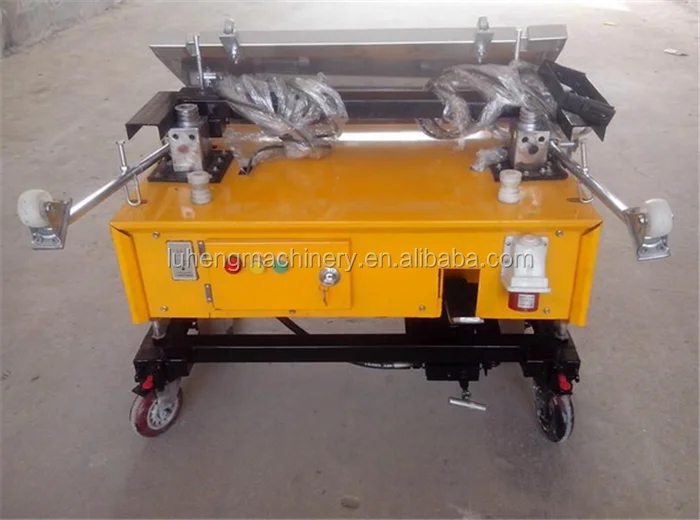

The real details photo
