screed for concrete finishing concreting aluminum truss screed paver equipment

Click on the image to view the original image

Product：	views：4screed for concrete finishing concreting aluminum truss screed paver equipment
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:41

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

After-sales Service Provided:: No overseas service provided

Name:: concrete truss screed

Engine Model:: HONDA GX160

Power:: 5.5HP/4.0kw

Working Width:: 4-8m

Working Depth:: 260mm

Vibration Frequency:: 70Hz

Induced Vibration Force:: 11kN/(≤)2000mm

Fuel Tank Capacity:: 3.6L

The Amount of Lubricating Oil:: 0.6L

The Amount of Fuel Consumption:: 313g/kWh

Packaging & Delivery

Selling Units:: Single item

Single volume:: 4 cm³

Single gross weight:: 780.0 kg

Package Type:: wooden case

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	3	To be negotiated

Product Description

Product Application

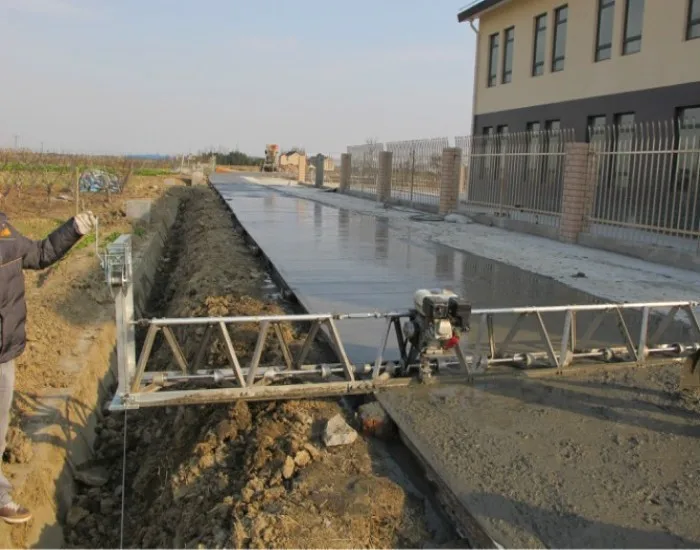

Concrete vibratory truss screed is mostly used to pave vibrating impact of the concrete surface, bridges concret surfaces, large parking slurry and other large factory concrete surfaces.
It is designed with exact paving system, suitable and perfect for large concrete surfaces.
The Max depth of impaction can be up to 20 -30 centimeters.
Features:
Concrete Vibratory Screed Machine vibratory concrete screed machine
1. HONDA power ( or famous electric) brand quality assurance, superior performance, easy to start.
2. Truss screeds baseplate select could rolled sheet, wear and corrosion resistance.truss screed
3. The overall frame adopts full steel structure, strong earthquake, won"t be hard deformation.concrete screed
4. Removable and free combination design, greatly reduces the maintenance and transportation cost.
5. The whole meters can fast joint together, reduce the cost.

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Model	RLH55X(≤)5500mm	RLH90X(≤)8500mm	RLH130X(≥)9000mm
Engine Model	HONDA GX160	HONDA GX270	HONDA GX390
Power	5.5HP/4.0kw	9HP/5.5kw	13.0HP/7.5kw
Engine Type	Gasoline engine, air-cooled 4-stroke, OHV, single cylinder
Working Width	4-8m	8-12m	>12m
Working Depth	260mm
Vibration Frequency	70Hz
Induced Vibration Force	11kN/(≤)2000mm
Fuel Tank Capacity	3.6L	6L	6.5L
The Amount of Lubricating Oil	0.6L	1.1L
The Amount of Fuel Consumption	313g/kWh
