Click on the image to view the original image
- Place of Origin:
- Shandong, China
- Brand Name:
- BIOBASE
- Model Number:
- BDF-25V328
- Instrument classification:
- Class I
- Capacity:
- 328L
- Temperature Range:
- -10℃~-25℃
- Refrigeration Type:
- Direct refrigeration
- Power Supply:
- AC220V ±10%,50/60Hz 110V60Hz
- Control System:
- Microprocessor Control&LED Display
- Refrigerant:
- R290,CFC free
- Inner Door:
- 5pcs
- Consumption:
- 280W
- Temp.Accuracy:
- 0.1℃
- Type:
- Vertical
- Supply Ability:
- 50 Unit/Units per Month
- Packaging Details
- Wooden Case Package
- Port
- Qingdao Port

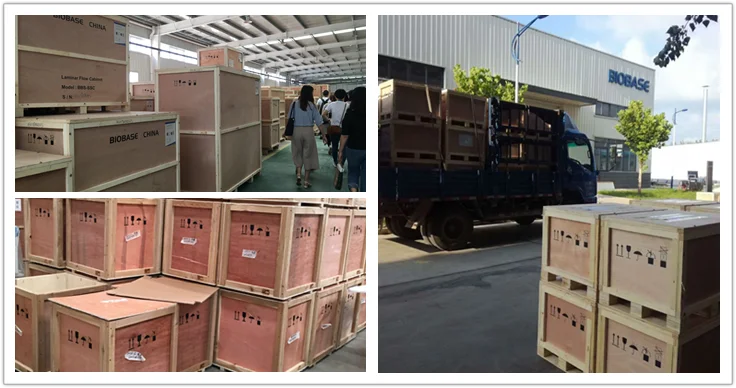

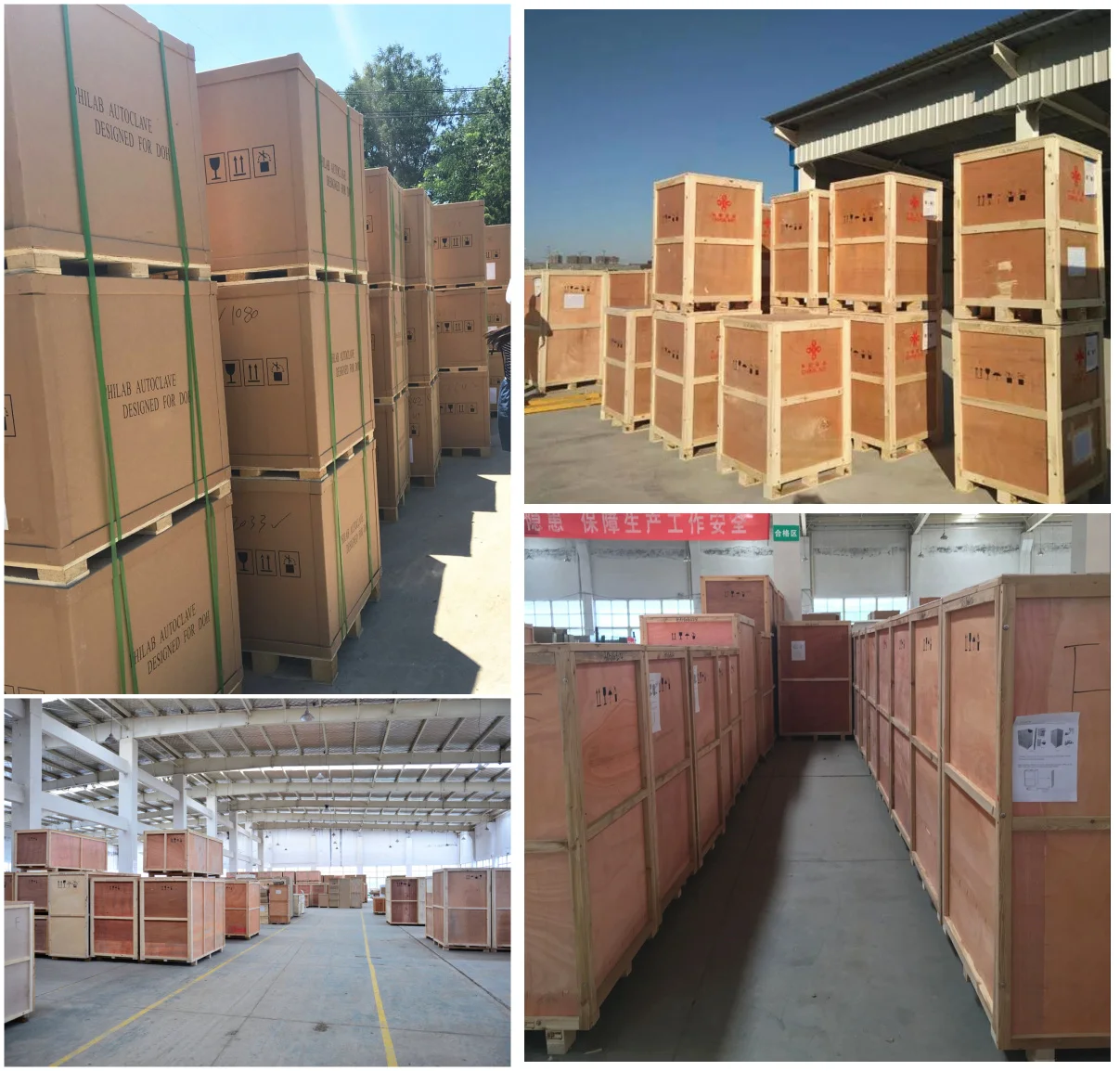

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Units) 1 - 5 >5 Est. Time(days) 15 To be negotiated
BDF-25V328
The Low Temperature Freezer offers a wide variety of research and storage application, such as low temperature scientific experiments, preservation of plasma, biomaterial, vaccine, biomedical properties of military products. It is suitable for research institutes, electronic industries, chemical engineering industries, hospitals, sanitation and antiepidemic stations, university laboratories, military industries.
Technical Parameters
Model | BDF-25V268 | BDF-25V328 | |
External Size(W*D*H) mm | 673*676*1630 | 673*676*1886 | |
Capacity | 268L | 328L | |
Type | Vertical | ||
Temp. Range | -10℃~-25℃ | ||
Temp. Accuracy | 0.1℃ | ||
Control System | Microprocessor Control & LED Display | ||
Alarm | High and low temperature; System & sensor failure; Door ajar; Power failure alarm; Thermostat alarm | ||
Refrigeration Type | Direct Refrigeration | ||
Refrigerant | R290, CFC free | ||
Compressor | International famous compressor | ||
Condenser & Evaporator | High efficiency air-cooled condenser, made of copper | ||
Construction | Structure | Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material) | |
Internal Material | Cold-rolled steel coated with anti-bacteria powder for BDF-25V268 and BDF-25V328 | ||
External Material | Cold-rolled steel coated with anti-bacteria powder | ||
Inner Door | 4pcs | 5pcs | |
Consumption | 280W | ||
Power Supply | AC220V±10%, 50/60Hz 110V60HZ | ||
Package Size(mm) | 760*770*1800 | 770*770*2040 | |
Gross Weight | 125kg | 140kg | |
