- Type:
- Blood Analysis System
- Brand Name:
- BIOBASE
- Model Number:
- BK-6500
- Place of Origin:
- Shandong, China
- Instrument classification:
- Class I
- Throughput:
- 60Tests/hour
- Assay Items:
- 5 parts
- Test mode:
- CBC+5DIFF, CBC
- Measuring Principle:
- Laser Scatter Technology
- Storage:
- 100,000 results storage including histogram and scattergram
- LIS Interface:
- Support HL7 protocol
- QC and Calibration:
- Multiple QC rules,including L-J,X-B etc
- Incubation:
- Integral titanium incubation system
- Multi-warning:
- Reagent inventory check
- Name:
- Auto Hematology Analyzer
- Supply Ability:
- 100 Set/Sets per Month
- Packaging Details
- Exporting wooden case
- Port
- Qingdao
- Picture Example:
![package-img]()
5 Parts 60 Tests/hour Laser Scatter Technology Auto Hematology Analyzer
BK6500 Auto 5 parts Hematology analyzers are used to run tests on blood samples. They are used in the medical field to do white blood cell counts, complete blood counts, reticulocyte analysis.
Main Technical Parameters:
Model | BK-6500 | |||
Throughput | 60Tests/hour | |||
Assay Items | 5 parts, 28 parameters, 2 histograms, 2 scattergrams | |||
Test mode | CBC+5DIFF, CBC | |||
Measuring Principle | Laser Scatter Technology | |||

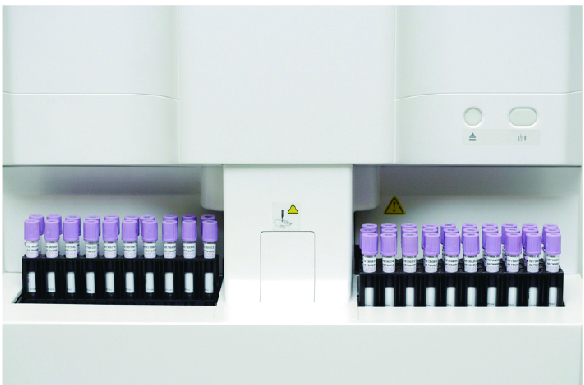

Sample Modes | Autoloader: 50 tubes, auto mixing, random direction tube barcode scanning technology | |||
Close tube: STAT priority, support both whole blood and capillary blood samples | ||||
Testing Items | Regular Parameters:WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, PDW, MPV, PCT, P-LCR, NEU#, NEU%, LYM#, LYM%, MON#, EOS#, EOS%, BAS#, BAS% Research Parameters:ALY#, ALY%, IG#, IG% | |||
Linearity Range | Item | Linear range | Carry over | CV |
WBC | 1.0~99.9x10^9/L | ≤0.5% | ≤2.0% | |
RBC | 0.3~7.0x10^12/L | ≤0.5% | ≤1.5% | |
HGB | 20~240g/L | ≤0.5% | ≤1.5% | |
PLT | 20~999x10^9/L | ≤1.0% | ≤4.0% | |
Storage | 100,000 results storage including histogram and scattergram | |||
LIS Interface | Support HL7 protocol | |||
QC and Calibration | Multiple QC rules,including L-J,X-B etc. Auto and manual calibration funtion | |||
Incubation | Integral titanium incubation system | |||
Multi-warning | Reagent inventory check; Abnormal original data warning; Multi warning flags | |||
Power supply | AC220V±10% 50/60Hz; 110V±10% 60Hz; 600VA | |||
Computer | External optional | |||
Package Size | 712*587*730mm(W*D*H) | |||
Gross Weight | 104kg | |||
ReagentPackage Size | 320*320*300mm (W*D*H);340*290*280mm (W*D*H) | |||
ReagentGross Weight | 24kg | |||
2. Main Feature
1) Laser scatter technology.
2) Constant linear sheath flow.
3) 3-D topographic technology.
4) Auto-loader, 60 samples/hour.
5) Integral titanium incubation system.
6) 28 parameters, 2 histograms, 2 scattergrams.
7) Random direction tube barcode scanning technology (optional).
