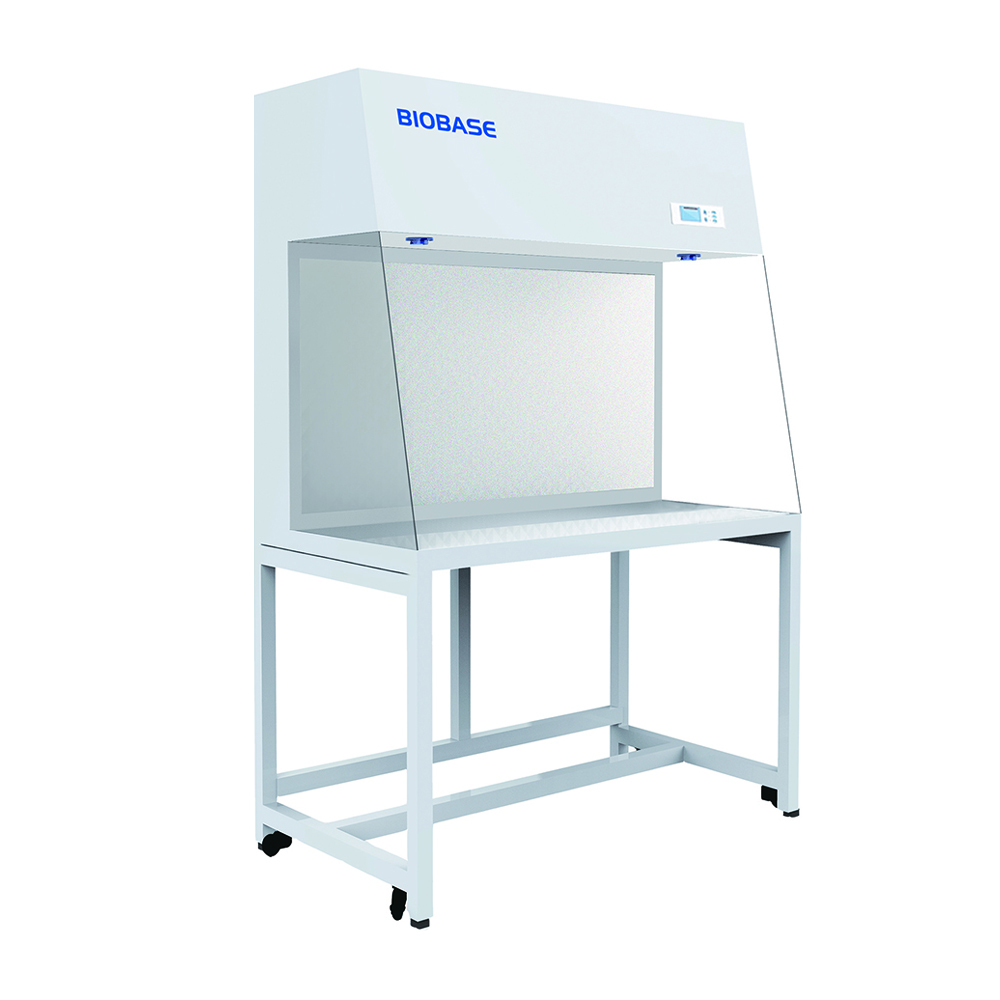

BIOBASE China Famous Brand Horizontal Laminar Air Flow Cabinets
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air. Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
More details of this Horizontal Laminar Flow Cabinet:
TECHINICAL PARAMETERS:
Model | BBS-H1100(Previous name: BBS-DDS) | BBS-H1500(Previous name: BBS-SDS) |
External Size(W*D*H) | 1100*808*1690mm | 1500*808*1690mm |
Internal Size(W*D*H) | 1000*500*600mm | 1400*500*600mm |
Work Surface Height | 750mm | |
Display | LED Display | |
Airflow Velocity | Average of 0.30~0.45m/s | |
Material
| Main Body: Cold-rolled steel with anti-bacteria powder coating | |
Work Table:304 stainless steel | ||
Side Windows:5mm toughened glass, anti-UV | ||
Pre-filter | Polyester fiber, washable | |
HEPA Filter | 99.999% efficiency at 0.3um | |
Noise | <60dB | |
LED Lamp | 12W*1 | 16W*1 |
UV Lamp | 20W*1 | 30W*1 |
Emission of 253.7 nanometers | ||
Consumption | 200W | 300W |

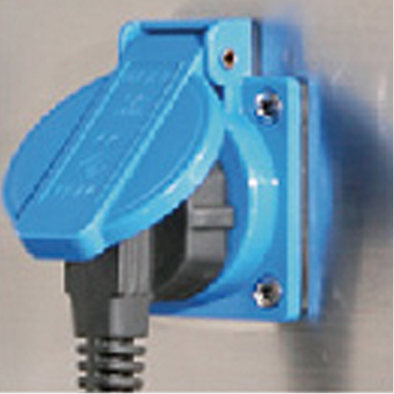

Waterproof socket | Two, total load≤500W | |
Caster | Universal caster with leveling feet | |
Power Supply | AC220V±10%; 50/60Hz; 110V±10%, 60Hz | |
Standard Accessory | LED lamp, UV lamp*2,Base stand, Waterproof socket*2 | |
Gross Weight | 165kg | 179kg |
Package Size(W*D*H) | 1230*1000*1890mm | 1630*1000*1890mm |
Founded in 1999, BIOBASE is a world leading high-tech enterprise focusing on Research & Development, manufacturing and management of laboratory and pharmaceutical equipment. Products have served for clients in more than 100 nations.
BIOBASE provides more than 150 different types of product, including Fully Automated Biochemistry Analyzers, Automated Elisa Processors, Biological Safety Cabinets, Fume Hood, Laminar Flow Cabinet, Autoclaves, Refrigerators, Freezers, Incubators, Water Purifiers and etc. The company has been certified by international standards such as ISO 9001, ISO 13485 and ISO 14001. Various products have obtained international certifications like CE, MET, ETL, and have been registered in FDA, RCM, etc.
With more than 2000 employees and 50000 sqm production base, BIOBASE remains dedicated to deliver innovative solutions for the users with a strong R&D team formed by post-graduates and doctors. The service team is adequately qualified to offer training and service on the installation and maintenance for the full range of products. Engineers are experienced on hands-on design, manufacturing, testing and troubleshooting.
