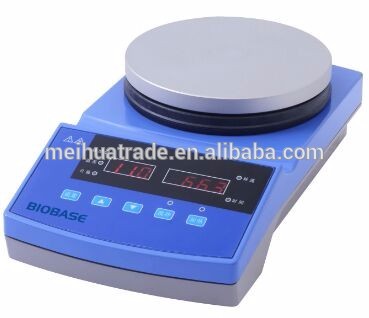

Analog (Hotplate) laboratory Magnetic Stirrer
Features
A traditional magnetic stirrer with modern design
Stainless steel plates and with/without hotplate porcelain enamel surface
Variable speed of motor
Motor with electronic speed control, constant speed even during changes in load
High magnetic adhesion, prevent the stirrer bar escape
Enclosed assembly(IP42) and external rotor brushless motor guarantees long service time
Safe separate circuit, automatically stop to heat when the temperature over 350°C(MS-H-S)
Specification
| MS-H-S | MS-S |
Voltage [VAC] | 100-120/200-240 | 100-120/200-240 |
Frequency [Hz] | 50/60 | 50/60 |
Power [W] | 530 | 30 |
Stirring point position quantity | 1 | 1 |
Max. stirring quantity(H2O)[L] | 20 | 20 |
Stirring point position quantity [mm] | 80 | 80 |
Motor type | External rotor brushless motor | External rotor brushless motor |
Motor rating input [W] | 18 | 18 |
Motor rating output [W] | 10 | 10 |
Speed range [rpm] | 0-1500 | 0-1500 |
Speed display | Scale | Scale |
Material | Porcelain enamel/Stainless steel | Porcelain enamel/Stainless steel |
Dimension of Plate [mm] | φ135 | φ135 |
Heating power [W] | 500 | -- |
Heat rate(1Lwater)[K/min] | 6 | -- |
Heating Temperature Range [°C] | RT-340 | -- |
Temperature display | Analog Scale | -- |
Temperature display accuracy [°C] | 350 | -- |
Dimension [mm] | 280×160×85 | 280×160×85 |
Weight[kg] | 2.8 | 2.8 |
Permissible ambient temperature [°C] | 5-40 | 5-40 |
Permissible relative humidity | 80% | 80% |
Protection class acc. to DIN EN60529 | IP42 | IP42 |
Ordering information
| P/N | Description |
811111010000 | MS-S | Analog Magnetic Stirrer, Stainless steel,Cn plug,110V/220V/50Hz/60Hz |
811111020000 | MS-S | Analog Magnetic Stirrer, Stainless Steel, Euro plug,110V/220V/50Hz/60Hz |
811111030000 | MS-S, | Analog Magnetic Stirrer, Stainless Steel, UK plug,110V/220V/50Hz/60Hz |
811111040000 | MS-S | Analog Magnetic Stirrer, Stainless Steel, USA plug |
