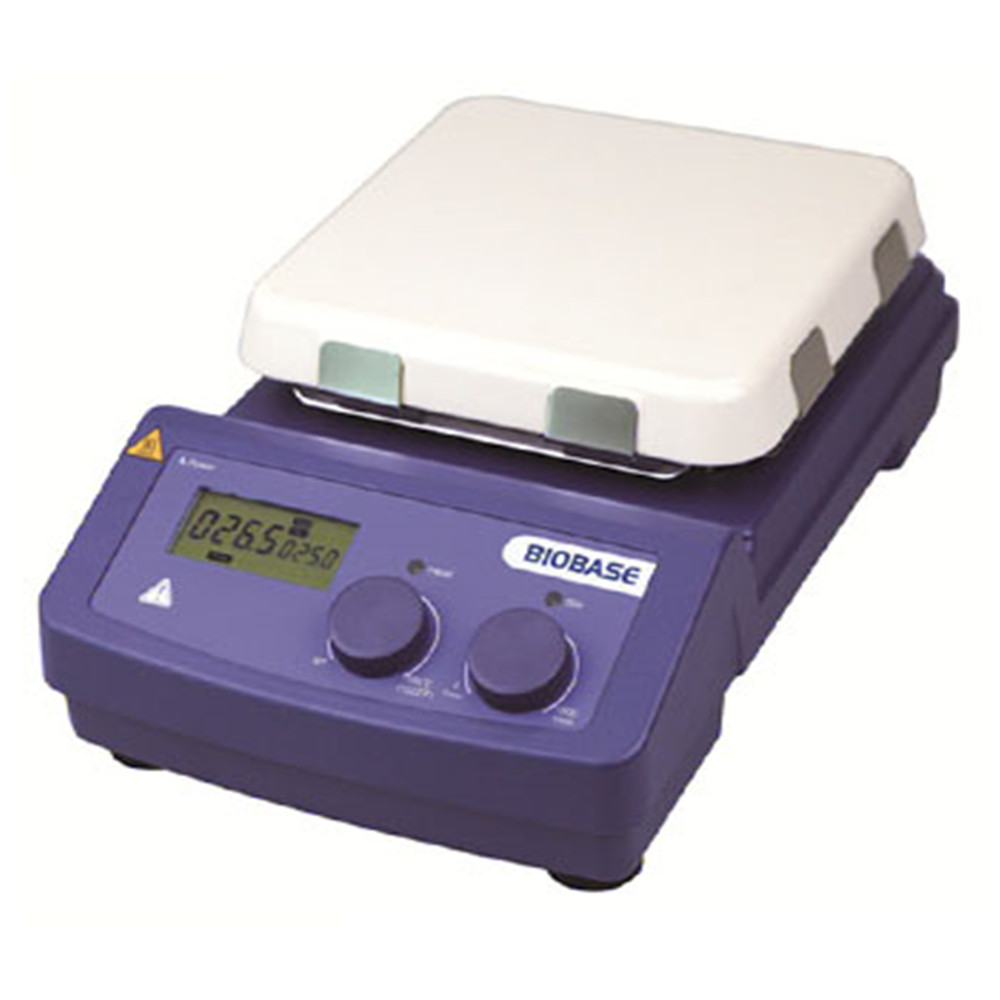

Digital (Hot plate) Magnetic Stirrer
Features
1. High accuracy of heating temperature controlling and the control of safe temperature
2. Hotplate with stainless steel surface or porcelain enamel surface with excellent chemical resistance
3. 2 adjustable safety circuits
4. Separateness temperature sensor, protection temperature can be set
5. Temperature sensor for heat transfer fluid and medium available(PT1000)
6. Warning display indicating presence of any residual heat when the unit is switched off
7. A, B, C Mode, ensure the stirring function not change due to external factors(MS-Pro)
8. Bushing according to DIN 12878 for the use of contact thermometers
Specification
| MS-H-Pro |
Voltage [VAC] | 100-120/200-240 |
Frequency [Hz] | 50/60 |
Power [W] | 550 |
Stirring point position quantity | 1 |
Max. stirring quantity(H2O)[L] | 20 |
Stirring point position quantity [mm] | 80 |
Motor type | External rotor |
Motor rating input [W] | 18 |
Motor rating output [W] | 10 |
Speed range [rpm] | 100-1500 |
Speed display | LCD |
Speed display accuracy [rpm] | 1 |
Material | Porcelain enamel/Stainless steel |
Dimension of Plate [mm] | φ135 |
Heating power [W] | 500 |
Heat rate(1Lwater)[K/min] | 6 |
Heating Temperature Range [°C] | RT-340 |
Temperature display | LCD |
Temperature display accuracy [°C] | 0.1 |
Control accuracy of heating temperature[°C] | 1 |
Adjustable safety circuit(heating plate)[°C] | 100-350 |
Control accuracy of heating temperature with temperature[°C] | 0.2 |
Temperature sensor of extra position | PT1000 |
Dimension [mm] | 280×160×85 |
Weight[kg] | 2.8 |
Permissible ambient temperature [°C] | 5-40 </TD< td> |
