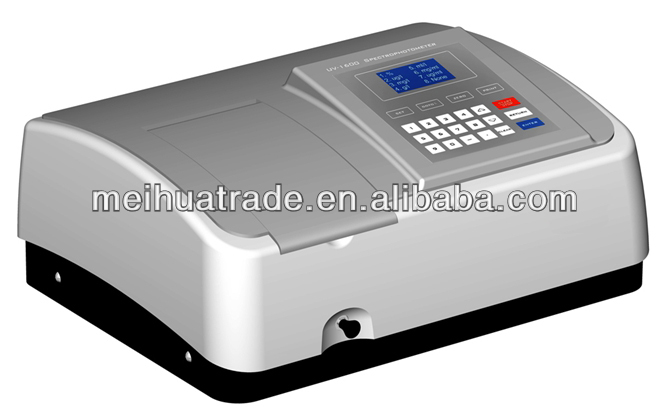

BS-V/UV-1600/1800 Spectrophotometer price
Features
1. Large LCD screen (128*64 Dots).
2. System can also save the test results, total 200 groups of data 200 standard curves can be saved in the RAM. Convenient for check and reload.
3. Data can be restored after a sudden power cut.
4. Auto setting wavelength.
5. Tungsten lamp & Deuterium lamp can be turned on/off individually to extend lifetime.
6.The optional application software M. Wave Professional provides complete control of the spectrophotometer from a computer through the Built-in USB port. It can expand to the following functions: Quantitative, Kinetics, Wavelength Scan, Multi-wavelength & DNA/Protein Test.
Functions
9. Photometry
10. Absorbance, Transmittance or Energy measurements. It can display and save 200 groups of data, 5 groups per screen.
11. Quantitative.
12. Standard Curve
13. At most, 9 standard samples can be used to establish a standard curve. The curve and its equation will be displayed on the screen simultaneously. You can measure your unknown concentration solutions by the curve.
14. Total 200 curves can be saved in the Memory.
15. Coefficient Method
16. If the coefficient k & b in the formula C=k*a + b is known, you can input them directly by the button, and then test your unknown solutions.
17. Kinetics.
18. This mode may be used for time course scanning or reaction rate calculations. Abs. VS Time graphs is displayed on the screen in real time. It can most record 1000 data.
19. System Utilities
20. Lamp management, time & date set, obtain dark current, calibrate wavelength, default system, and some other system functions.
Specifications
Model
| BS-V-1600 BS-V-1600PC | BS-V-1800 BS-V-1800PC | BS-UV-1600 BS-UV-1600PC | BS-UV-1800 BS-UV-1800PC |
Wavelength Range | 320-1100nm | 190-1100nm | ||
Spectral Bandwidth | 4nm | 2nm | 4nm | 2nm |
Optical System | Single Beam , Grating 1200 lines/mm | |||
Wavelength Accuracy | ±0.5nm | |||
Photometric Accuracy | ±0.5%T or ±0.003A@1A | |||
Photometric Repeatability | ≤0.15%T(0-100%T), ≤0.001A(0-0.5A), ≤0.002A(0.5-1A), | |||
Photometric Range | 0-200%T , -0.3 - 3A ,0-9999Conc | |||
Stray Light | 0.05%T@360nm | 0.05%T@220 ,360nm | ||
Stability | ±0.001A/h @500nm | |||
Display | Graphic LCD (128*64 dots) | |||
Standard Cell Holder | Standard 10mm pathlength cuvette | |||
Sample Compartment | 4-position 10mm cell changer | |||
Output | USB Port & Parallel Port (Printer) | |||
Power Requirement | AC 110/220V 50/60Hz | |||
Dimensions(W*D*H) | 470*373*187mm | |||
Weight | 12kg | 14kg | ||
Contact: Nicole Chen
asia(at)biobase.com
