- Type:
- Pressure Steam Sterilization Equipments
- Brand Name:
- BIOBASE
- Model Number:
- BKQ-B100H
- Place of Origin:
- Shandong, China
- Instrument classification:
- Class I
- Capacity:
- 100L
- Chamber Size:
- 400*850mm
- Working temp:
- 105~136℃
- Gross weight:
- 310 kg
- External size(mm):
- 1250*730*1660
- Chamber material:
- 304 medical stainless steel
- Temp accuracy:
- ±0.1℃
- Power consumption:
- 11kw
- Power supply:
- 380V, 50HZ
- Packaging size(mm):
- 1450*1000*1950
- Supply Ability:
- 100 Set/Sets per Month

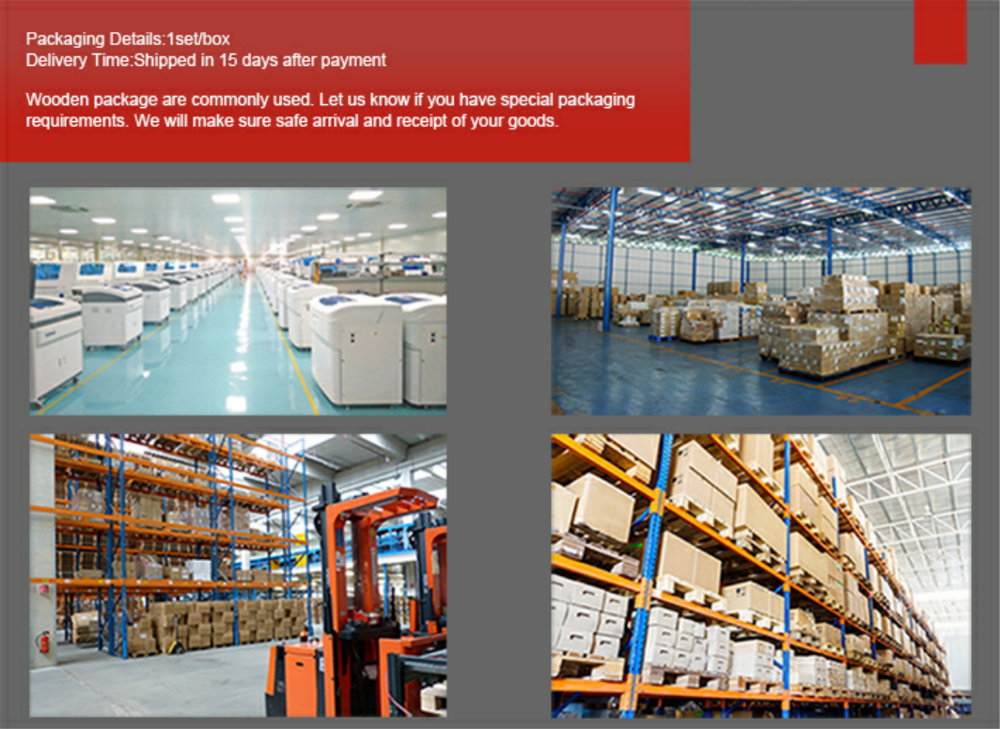

- Packaging Details
- Standard Wooden Package
- Port
- Qing Dao port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Units) 1 - 1 >1 Est. Time(days) 10 To be negotiated
<h2>Horizontal Steam 100L Sterilizer Autoclave</h2>
Application
It is applicable for the sterilization of unpacked solid instrument in department of stomatology, ophthalmology, operation room and CSSD.
1. Sterilizing programs for fabric, instrument, rubber and liquid.
2. Equipped with printer to print date, time and process parameters.
3. Build-in efficient steam generator, microcomputer temperature control.
4. Perfect four-level authority management system to avoid mis-operation.
5. The positive pressure air-exhaust system to exhaust the cold air from chamber.
6. Post-dying function makes the residual humidity of sterilized articles less than 3%.
7. Touch screen display of temperature, pressure, time, running status and failure warning.
8. Over-heat auto protection device, dual door safety lock device, over-pressure relief valve, short-circuit protection and over-pressure protection.
Model | BKQ-B100H | BKQ-B150H | BKQ-B200H | BKQ-B300H | |||
Capacity | 100L | 135L | 185L | 300L | |||
Chamber Size | Φ400*850mm | φ500*710mm | φ500*950mm | φ632*1000mm | |||
Chamber material | 304 medical stainless steel | ||||||
Max working pressure | 0.23Mpa | ||||||
Working temp | 105~136℃ | ||||||
Temp accuracy | ±0.1℃ | ||||||
Power consumption | 11kw | 17kw | |||||
Power supply | 380V, 50HZ | ||||||
External size(mm) | 1250*730*1660 | 1110*750*1742 | 1350*750*1742 | 1400*890*1780 | |||
Packaging size(mm) | 1450*1000*1950 | 1370*890*2060 | 1510*890*2060 | 1700*1050*2090 | |||
Gross weight | 310 kg | 470kg | 540 kg | 830 kg | |||
BIOBASE is the first and only Chinese company that pass NSF 49 and EN 12469 certification. We are professional lab and medical equipment manufacture in China for more than 20 years, and share 40% domestic market.
